Product Description
Package V-KS
The V-KS package offers three measuring technologies to detect and analyze moisture problems when installing and inspecting floor coverings and coatings. As an option, pin electrodes can be added.
1. Pinless mode: Allows fast and easy moisture scans, dual-depth ¼ and ¾
2. In-situ probe testing: Included are accessories for in-situ moisture testing of concrete slabs.
3. Thermo-hygrometer: With RH BluePeg probe and RH adapter, the VersaTec can be used as a precision, fast-acting thermo-hygrometer.

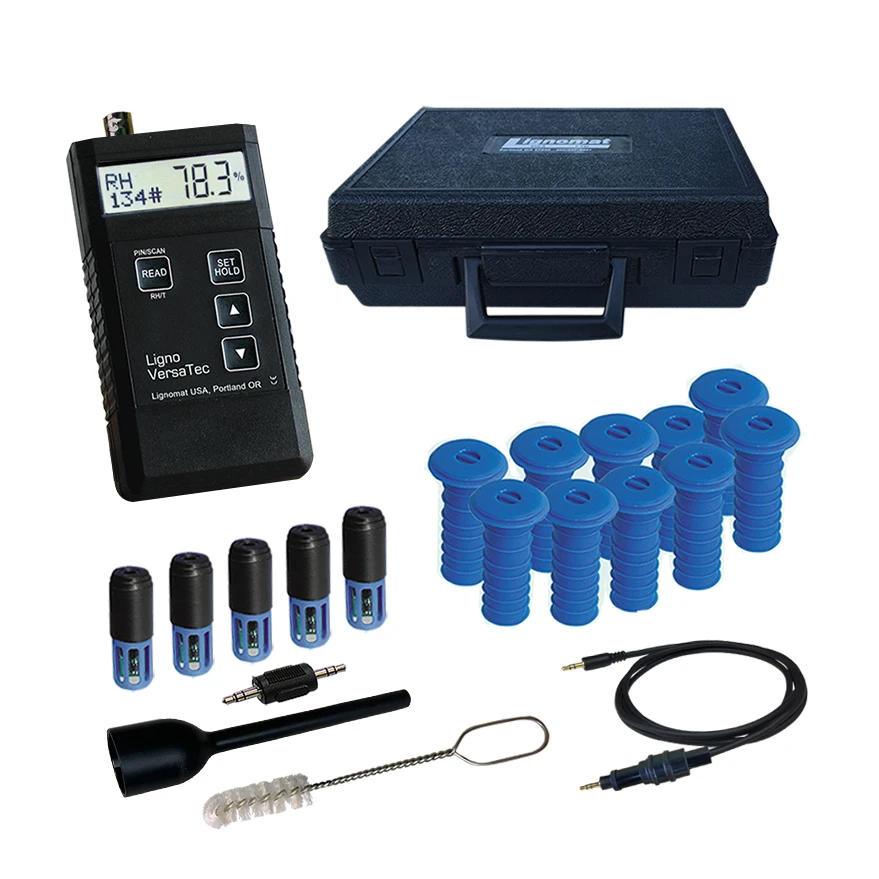

The package V-KS consists of:
- Ligno-VersaTec moisture meter
RH in-situ / Hygrometer parts - 1 or 5 or 10 BluePeg Probes (Choose an Option)
- RH Adapter
- 10 Sleeves with caps
- RH-Cable for in-situ probes
- RH-Brush
- RH Vacuum Attachment
- Case S
The Ligno-VersaTec is the most advanced meter among Lignomat’s pin-pinless-RH moisture meters. Features are the wide moisture range and more than 170 correction settings for measuring domestic and tropical wood species, OSB and other panel products, bamboo, gypsum and different types of wall boards. Relative scales are included for concrete, cementitious materials, plastics, insulation…
The meter by itself provides for dual-depth pinless measurements. Connectors for pin electrodes and RH cables or RH adapter are installed in the top of the meter.
– BNC connector for electrode cables and in-kiln, remote cables with Adapter H
– 3.5mm stereo jack to connect RH cable or RH adapter.
Two measuring plates for pinless dual-depth mode are mounted on the back of the meter.
Package includes accessories for measuring RH/T ambient conditions and in-situ concrete moisture testing.
Pinless Measurements
The Ligno-VersaTec meter allows fast and easy measuring of flat materials 1/4″ and 3/4″ deep. Percent values are indicated for all wood species, OSB and other panel products, engineered floors, bamboo and drywall. Relative scales are for all other materials including concrete.
If the material is not flat, or measurements should reach deeper or you need to find differences between surface and core moisture, the Electrodes E12 can be added to accomplish those tasks.
In-situ probe testing of concrete
The V-KS package contains accessories needed for RH testing: 1 RH Bluepeg probe (option 5 or 10 RH probes), 10 sleeves with caps, 1 RH-CC cable and 1 brush (drill bit is not included). Design of equipment and test procedure are governed by the ASTM standard F2170. Lignomat’s RH BluePeg system complies with the latest F2170 standard.

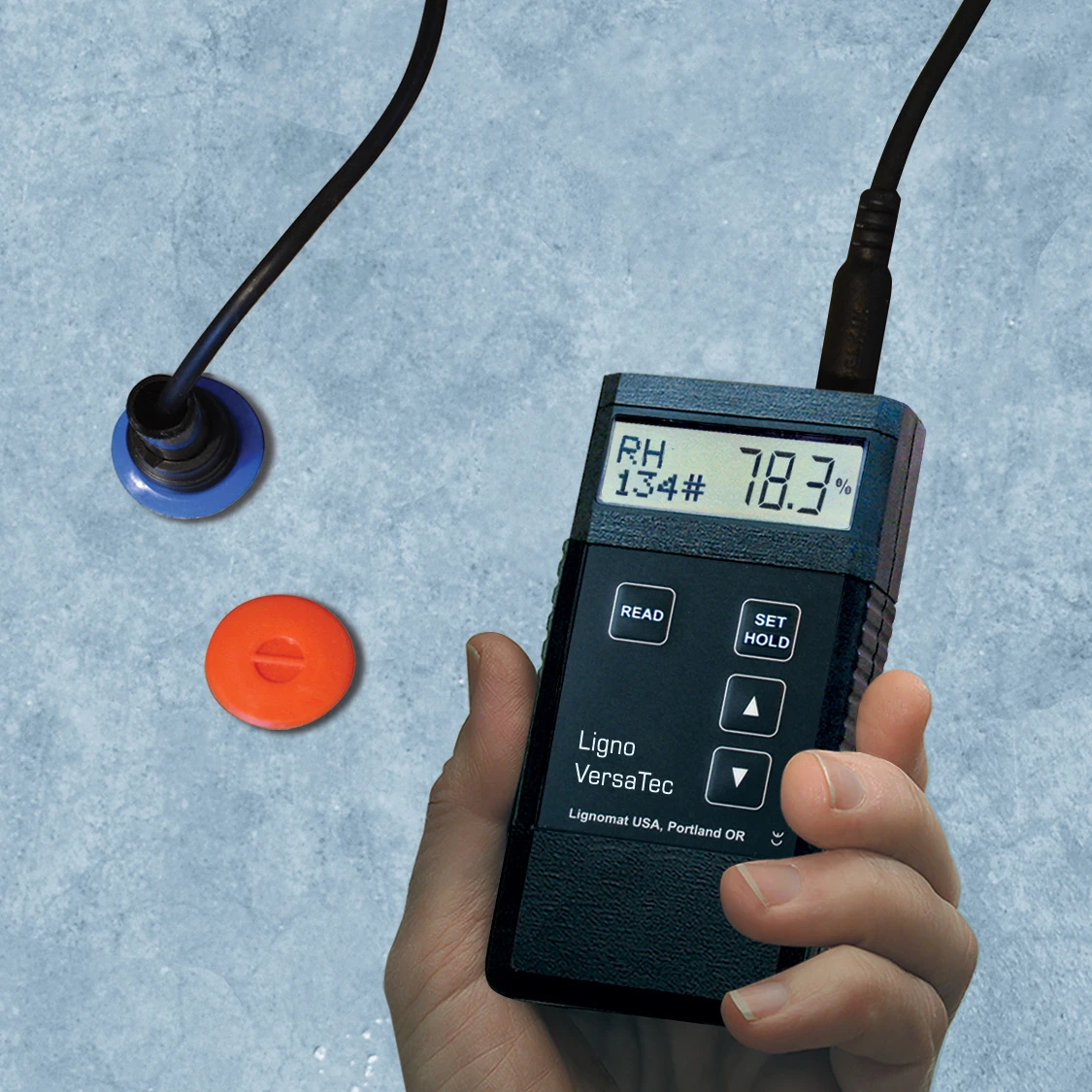

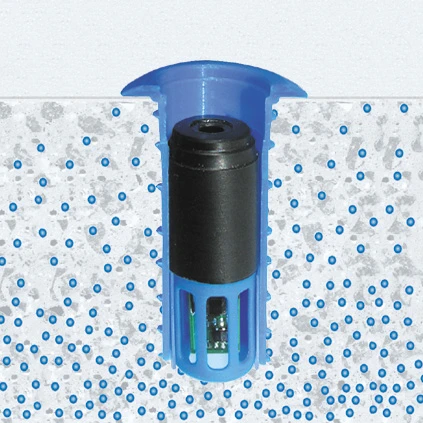

After drilling, cleaning and setting the sleeve, the RH BluePeg probe easily drops into the sleeve. The cap fits perfectly and is as flat as can be. The cable connection is provided by a simple, fail-proof 3.5mm stereo plug. No pin alignment of the cable needs to be fitted and no set-up of the meter is necessary. The meter switches into RH mode as soon as an RH cable is connected. Plug in and read, that’s what our customers like.
The display shows the measured value and the RH Probe number. The RH probe number is an individual number 1-999 to allow keeping track of probe location during testing, measurements and performance.
- More info on in-situ probe testing
- More info on Lignomat’s RH in-situ probes
- Overview Lignomat concrete meters
Thermo-Hygrometer

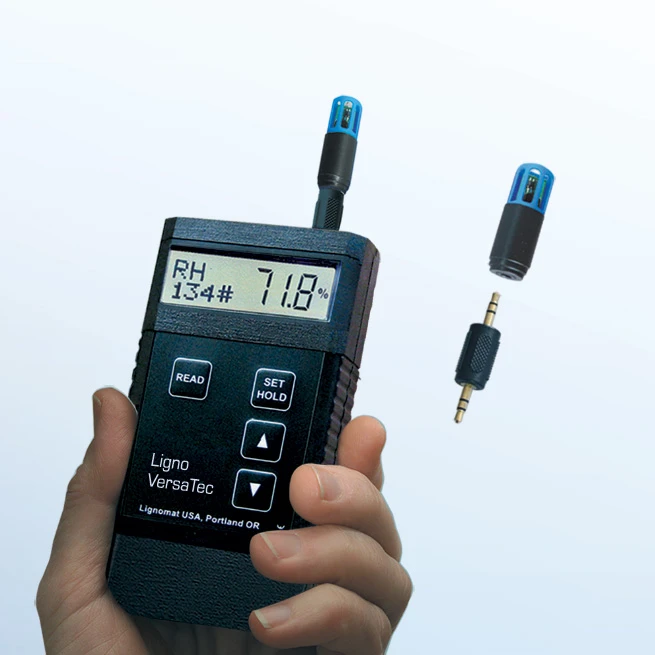

To activate the RH thermo-hygrometer mode, plug the RH Adapter into the RH BluePeg probe, next the RH Adapter can be plugged into the stereo connector at the top of the meter. Instead of using the Adapter RH, the 6 ft RH-CC cable included in the package can be used for remote measurements (any stereo cable could be used).
As soon as the connection is established, the Ligno-VersaTec is in RH mode. When the READ button is depressed, the meter immediately indicates the relative humidity. The up or down keys allow recalling the values for ambient Temperature, Dew Point Temperature and Grains Per Pound.
Specifications RH BluePeg: +/-2% (10-90%), +/-3% below 10%, above 90%
T: +/- 0.5°F (32-120°F) , +/- 1°F (5-32°F and 120-160°F) Response time 8 sec.
Resolution for RH and T: 0.1% and 0.1°.
Options:
- Add slide-hammer electrode E12 for wood and structural lumber up to 2″. Choose package V2-KM.
- Add inspection electrode E14-V for assessing moisture conditions in walls, ceilings, roofs… , choose package V4-KS.
- Add both electrodes E12 and E14-V, choose package V24-KM
- Add concrete electrode E16 to obtain instant concrete measurements up to 7″.

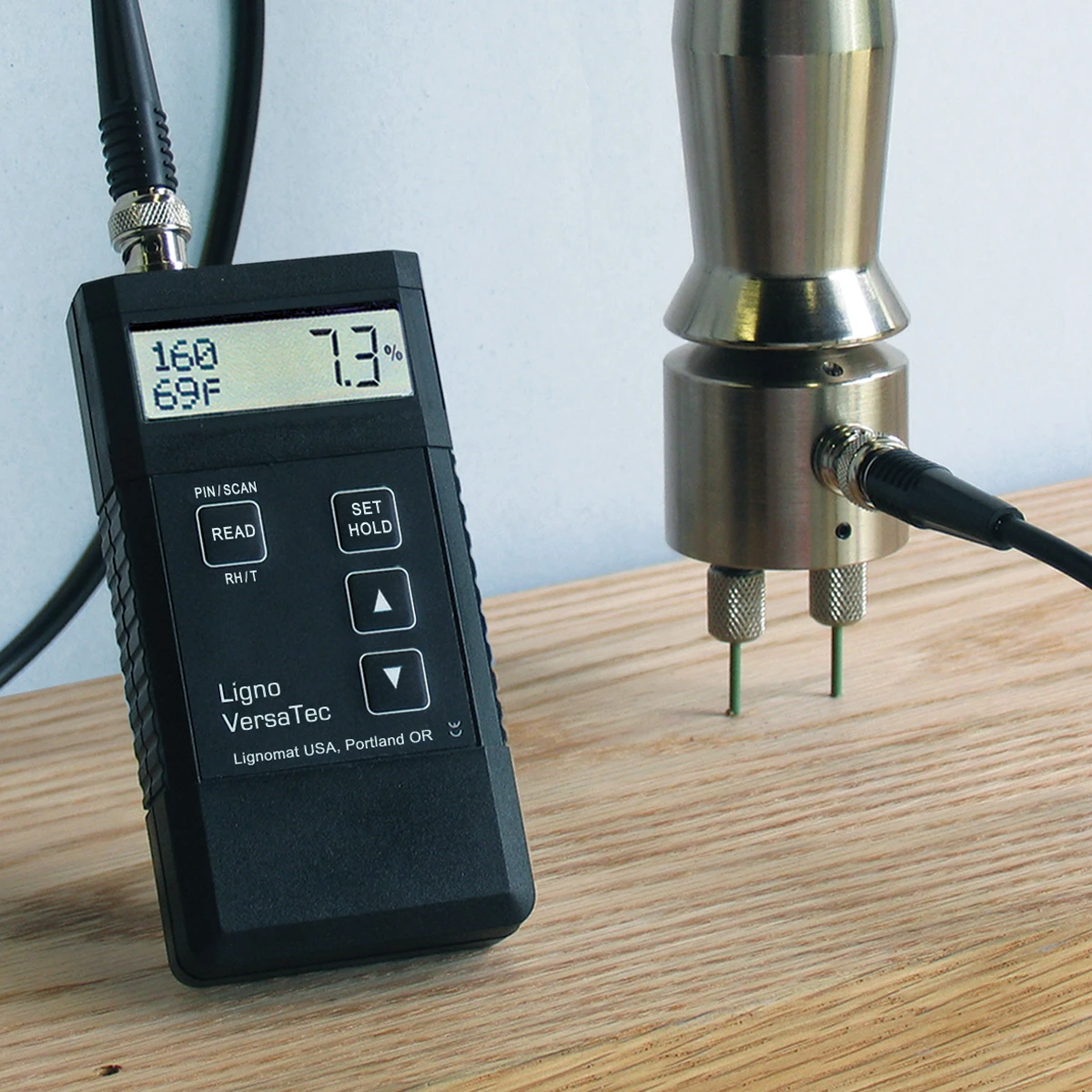

Electrode E12 is added for measuring wood and other relatively hard materials up to 2″ deep. The action of the slide hammer allows inserting and removing the pins up to 2″ deep, when measuring subfloor through floor planks, reaching structural lumber behind drywall or simply measuring thicker wood or looking for differences between surface and core moisture.
Electrode E14-V is added for inspection jobs, where drywall and other relatively soft materials can be measured with EG pins 3/4″ deep and EL pins 7″ deep (predrilling holes may be necessary). Because of the sturdyness of the E14-V / EG pins can be hammered into wood even very hard wood up to 1/2″ deep, as well as strand bamboo, hard panel products and cementitious materials. Since there is no mechanism to extract the pins, the measuring depth in hard materials should not exceed 1/2″.
Electrode E16 is added for instant measurements in hard building materials such as concrete, brick, stone, tile. Predrilling holes may be required. Advantage is that the result of the measurement is instantly available. For measurements at different depth levels, comparing values indicates if a moisture gradient exists. For measurements in different locations, areas of high and low moisture distribution can be determined. With EL pins up to 7″ deep.
For more information, please contact Customer Service at 1-800-227-2105.
