  • Ligno-VersaTec with multiple settings for wood and building materials.

    Electrode E16 for measuring soft and hard building materials, incl. concrete.

  • Electrode E16 for hard bldg materials and cement-based panels.

    Two separate posts for ease of pin insertion.

  • Choice of pins for Electrode E16:

    EL, EG Pins, teflon-coated
    EC, EA, EV Pins, un-coated

  • Option: add RH Thermo-Hygro probe to use meter as precision thermo-hygrometer.

    For relation between wood moisture and relative humidity, see EMC Chart

  • Electrode E16 allows wide distance between posts for measuring cementitious materials incl. concrete.

  • Checking moisture damage in a shower.

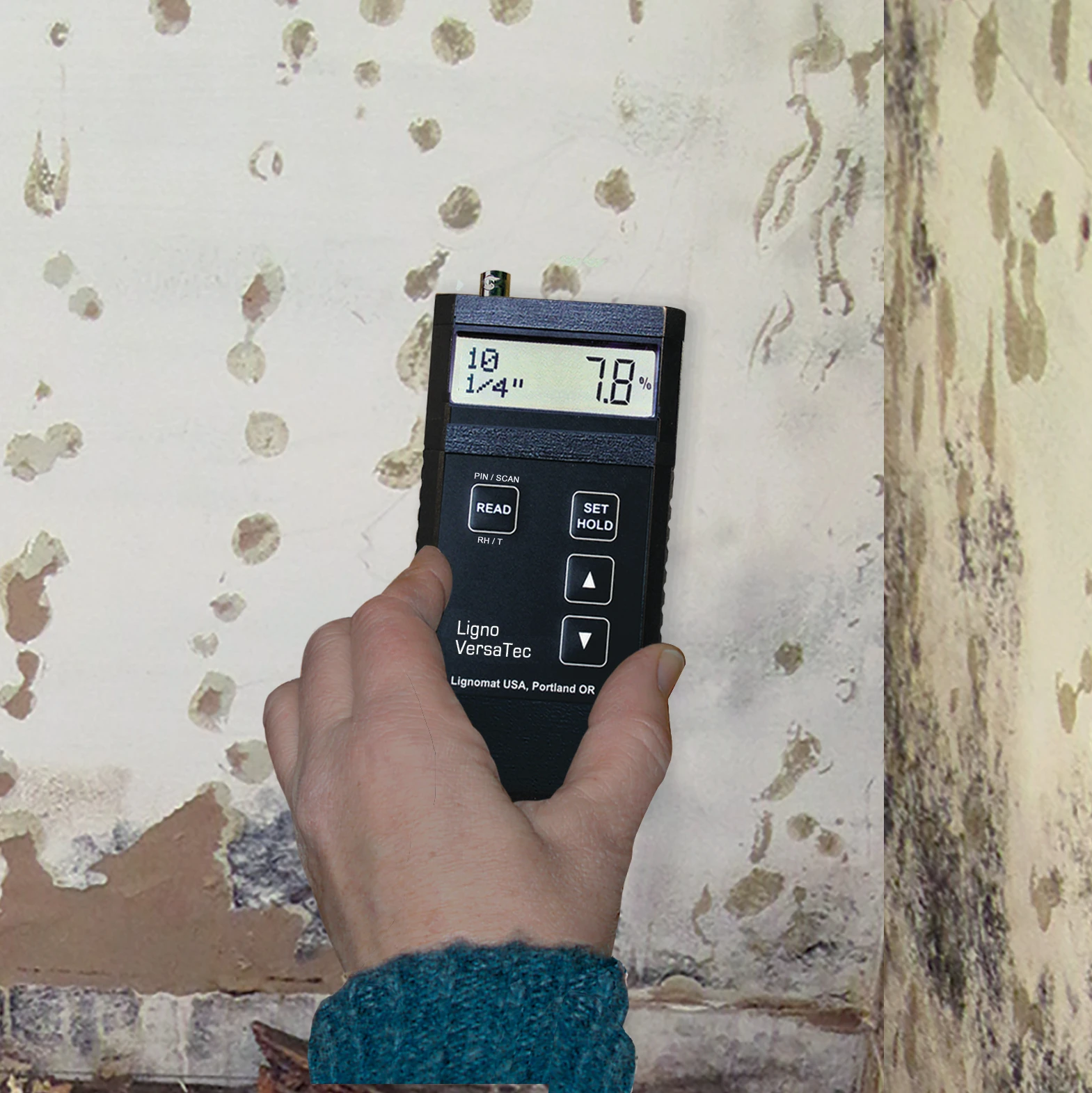

    Scan mode of VersaTec allows measuring dry versus moisture affected areas during restoration jobs.

  • Pinless mode: fast and easy moisture checking of lumber and flat boards.

    Domestic and tropical woods, wood floors, engineered products, bamboo …

  • Measuring depth matters.

    Dual-depth allows accurately measuring boards over and less than 3/4″ thick.

  • Hard-to-reach areas can be easily measured when adding the long EL pins. Reaching through insulation and wall boards.

Package V6-S

Applications

Used for measuring hard building materials, concrete, brick, tile, stone, grout, up to 7″ deep with EL Pins. Otherwise, moisture measurements can be taken with the dual-depth, pinless mode of the Ligno-VersaTec.

Advantages

Pin – pinless – RH: When every job is different, the Ligno-VersaTec all-in-one is the most versatile meter, with the widest moisture range and individual correction settings in pin and pinless mode for domestic and tropical wood species, OSB, panel product, drywall and reference scales for hard building materials.

The advantage of the Electrode E16 are the two separate, pin posts for easier insertion into hard materials. The 2 posts also allows a wider distance between the 2 pins. Using the E16 gives instant results when measuring moisture in concrete.

Add RH/T probe for measuring ambient conditions. See below “Choose an option”.
Call 800-227-2105 for in-situ RH accessories for concrete moisture (ASTM F2170).

Item Number: V6-S

Starting at $499.00

PACKAGES

Included

Add-ons

Related Products

Product Description

Package V6-S

The package consist of the moisture meter Ligno-VersaTec (pin-pinless-RH) and the E16 pin electrode in a hardshell carrying case. In pinless mode flat materials can be checked fast and easy up to 3/4″ deep.  In pin mode the electrode E16 gives instant readings up to 7″ deep in hard building materials such as concrete, stone, brick.

The package V6-S consists of:

Click here for details.

The Ligno-VersaTec is the most advanced moisture meter among Lignomat’s moisture meters for pin-pinless-RH measurements. Features are the wide moisture range and more than 170 correction settings for measuring domestic and tropical wood species, OSB and other panel products, bamboo, gypsum and different types of wall boards. Relative scales are included for concrete, cementitious materials, plastics, insulation…

The moisture meter by itself provides for dual-depth pinless measurements. Connectors for pin electrodes and RH cables or RH adapter are installed in the top of the meter.
– BNC connector for electrode cables and in-kiln, remote cables with Adapter H
– 3.5mm stereo jack to connect RH cable or RH adapter.
Two measuring plates for pinless dual-depth mode are mounted on the back of the moisture meter.

Package includes E16 electrode.
Accessories for measuring RH/T ambient conditions and in-situ concrete moisture testing can be added.

Pinless Measurements: The Ligno-VersaTec moisture meter by itself allows fast and easy moisture testing of flat surfaces 1/4″ and 3/4″ deep. Percent values are indicated for all wood species, OSB and other panel products, engineered floors, bamboo and drywall. Relative scales are for all other materials including concrete.

If the material is not flat, or measurements should reach deeper or you need to find differences between surface and core moisture, for concrete and other hard materials use the electrode E16. For wood and panels the Electrodes E12 or E14 can be used to accomplish those tasks.

Electrode E16: The electrode E16 is used mainly to measure hard building materials, such as concrete slabs, brick walls, tile. The electrode can be also used when the distance or the angle between the 2 measuring pins need to be changed. Standard distance between pins is 1 1/4″.

The electrode E16 consists of two separate posts. Each post is 2″ long with a ball head. The cable is connected through a hole in the post using a 4mm banana plug. The bottom of the posts have threads for the pins. An assortment of pins is available with lengths from 3/16″ to 7″ (Pins EG, EL and EC, EA, EV). Tapping on top of the ball head with a mallet or hammer will drive pins into the material. Pre-drilling holes maybe required for deeper measurements.

We recommend a distance of 4″ (10cm) between the pins for measuring cementitious materials including concrete. Cementitious materials have a very low electrical resistance compared to wood and tend to give high values, therefore changing the distance allows a wider moisture range.

Measurements obtained from concrete or cementitious materials are not true percent values. They only can be used as reference numbers or comparative readings. Comparative measurements become meaningful, when a dry (wet) sample piece of the material is available. Measurements can then be compared to the moisture value for dry (wet).

Using the Ligno-VersaTec with the Electrode E16 gives immediate results when measuring concrete. The measurements can show areas of high and low moisture. If measurements are taken with the EL pins at different depth levels, the moisture profile of the slab becomes obvious. However, it cannot replace the in-situ probe test or the Calcium-Chloride test which allow to determine, if a wood floor can be installed.

————————————————

Available pins for E16:
EG pins teflon coated, measuring depth 3/4″
EL pins teflon coated, measuring depth 7″
EC 5/8″, EA 7/16″, EV 3/16″, un-coated

EC pins are included in package V6-S.

Add-ons for V6-S package:
– Pins #EL 7″ for E16
– Electrode E14-V.
– RH Thermo-Hygro probe to measure ambient relative humidity and temperature.
–Cables to monitor drying-out after water damage or to monitor remote inaccessible areas.

– Accessories for in-situ RH concrete moisture testing.

For more information please contact Customer Service at 1-800-227-2105.

Lignomat USA Ltd, 14345 NE Morris Ct., Portland OR 97230, USA,
Email: sales@Lignomat.com, www.Lignomat.com

Package Includes

Ligno-VersaTec

Pin – Pinless – RH. Meter comes with a BNC connection for external electrodes or in-kiln cables and a connector for Lignomat’s RH BluePeg probe. Manual, laminated species card, battery and a pouch with belt loop.

The Ligno-VersaTec has 170 individualized correction settings for domestic and tropical wood species, bamboo, gypsum and wall boards (water resistant, interior and exterior). Wood temperature corrections are built-in for pin mode and dual-depth measuring mode for pinless.

Electrode E16

Used in construction, restoration, building surveillance and the hardwood flooring industry. Tapping on top of probes will drive pins into the building material. Pre-drilling holes may be required for concrete, brick, etc.

Incl. 1 pair EC pins (uncoated).

BNC-E16 Cable

Cable connects Electrode E16 to
Lignometer K and Ligno-VersaTec
standard length 3ft, optional 6ft

Case S

The black hard-shell case comes with a handle and a foam insert for protection. Designed to fit meter, electrode and accessories.

Cannot be used for electrode E12.
