Product Description

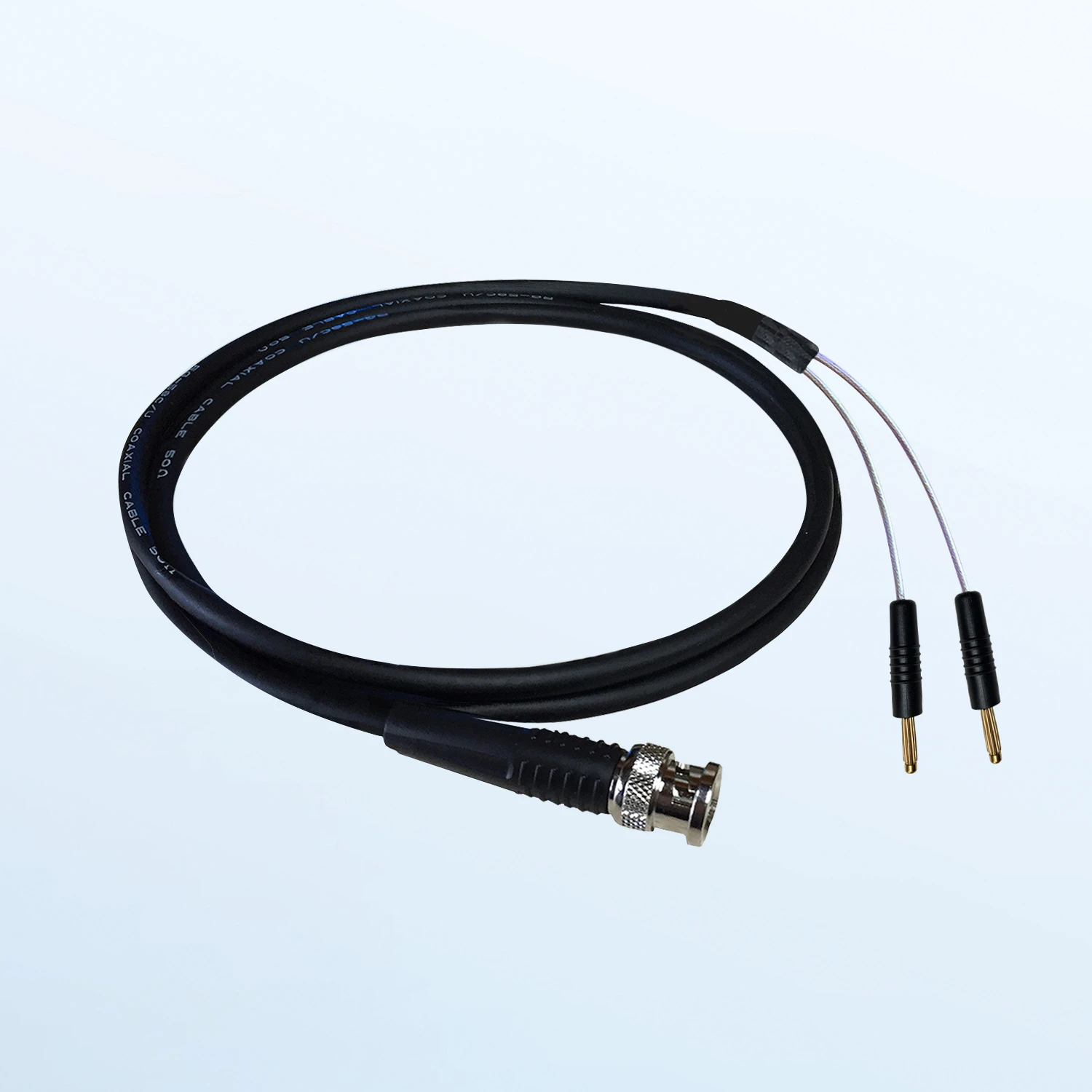

Lignomat offers the BNC-E16 cable to make the connection between electrode E16 and the Ligno-VersaTec and the Lignometer K. Lignomat’s BNC-E16 cables are selected for their high quality and their ability to accurately transfer measured values from the electrode to the meter. The BNC-E16 cable is built with a flexible easy-to-work-with coaxial cable.

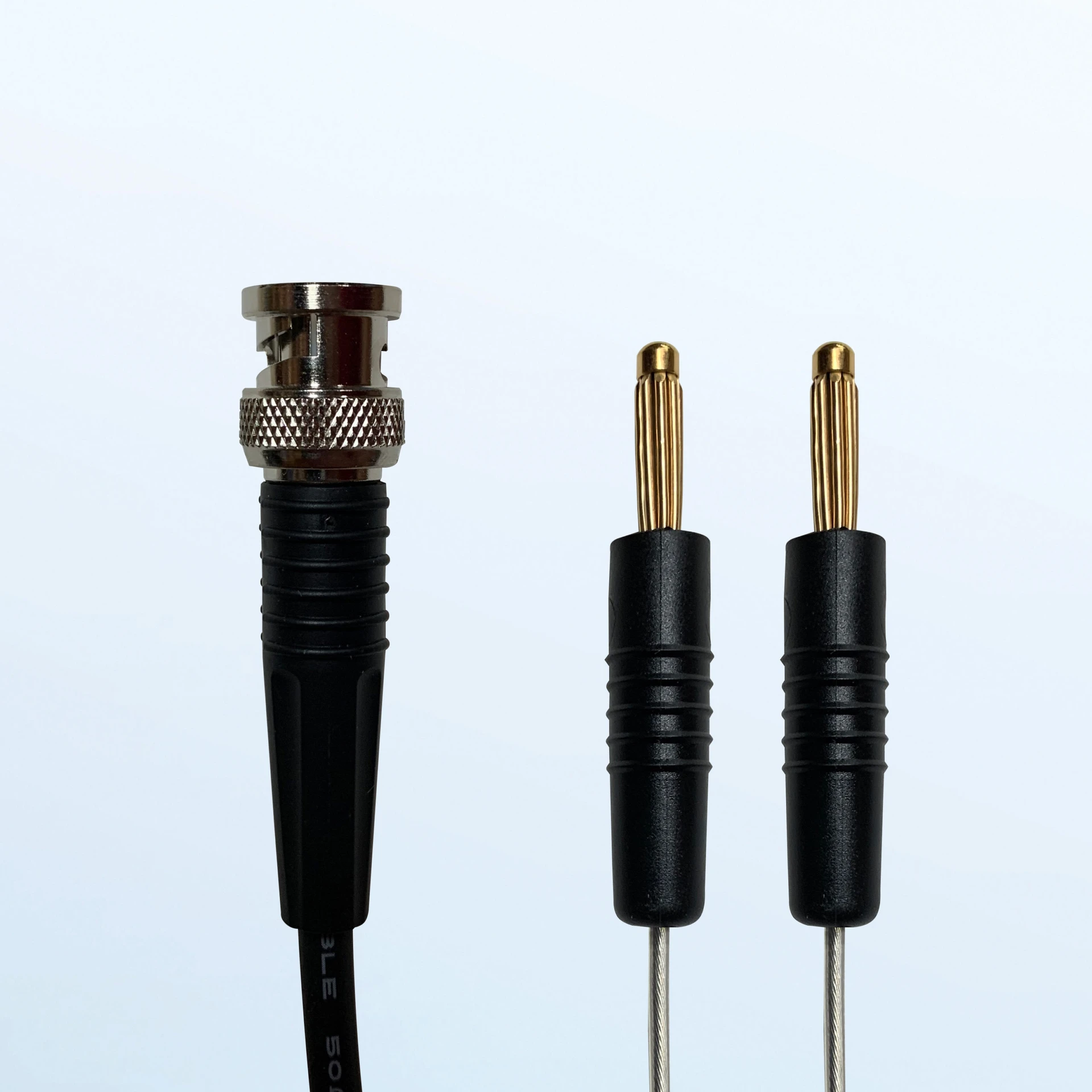

The male BNC connector fits the Ligno-VersaTec and the Lignometer K. The 4mm banana plugs at the split end of the cable fit through the holes in the poles of the electrode E16.
If you want to check the performance of the cable, connect the cable to the meter but not the electrode and push READ. The lowest possible value should appear on the meter, which means the cable does not add a measurable value even in the low measuring range. To check continuity of the cable, put the split ends in your hand and close your fist over the plugs without the plugs touching each other. Then, take a reading. The indicated value should be over 12%.
BNC-E16 cable comes in a standard length of 3 ft (0.9m) or optionally 6ft (1.8m) long.
BNC-E16 cable connects electrode E16 to:
— Ligno-VersaTec
— Lignometer K
If a cable is needed to connect the electrode E16 to the mini-Lignos DX/C, S/DC, MD/C, click here to order the mini-E16 cable.
For more information please contact Customer Service at 1-800-227-2105.
