• RH Thermo-Hygro probe for Lignomat’s RH meters to measure relative humidity and temp.

    – Ligno-Tec RH
    – Ligno-VersaTec
    – Ligno-DuoTec BW
    – Memo-CHip BL2

  • RH BluePeg probe can be connected
    with RH Adapter or RH Cable to:

    – Ligno-Tec RH
    – Ligno-VersaTec
    – Ligno-DuoTec BW
    – Memo-CHip BL2

  • Connections are made by simple, fast-to-connect and failproof 3.5mm plugs.

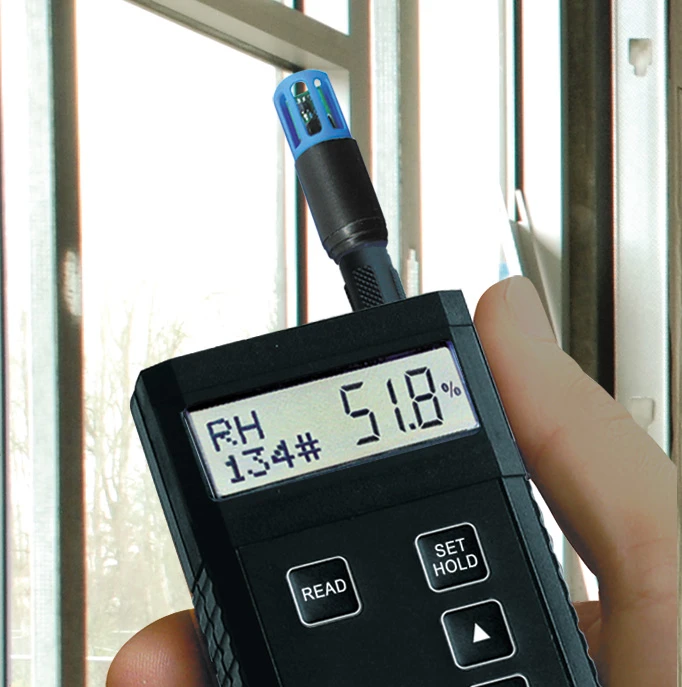

  • Large display indicates:

    — RH, Temp, DewPT, GPP
    — #: last 3 digits of probe serial number

  • One or more RH depth-adapters can be added to extend probe further above top of meter.
    #RH-DA

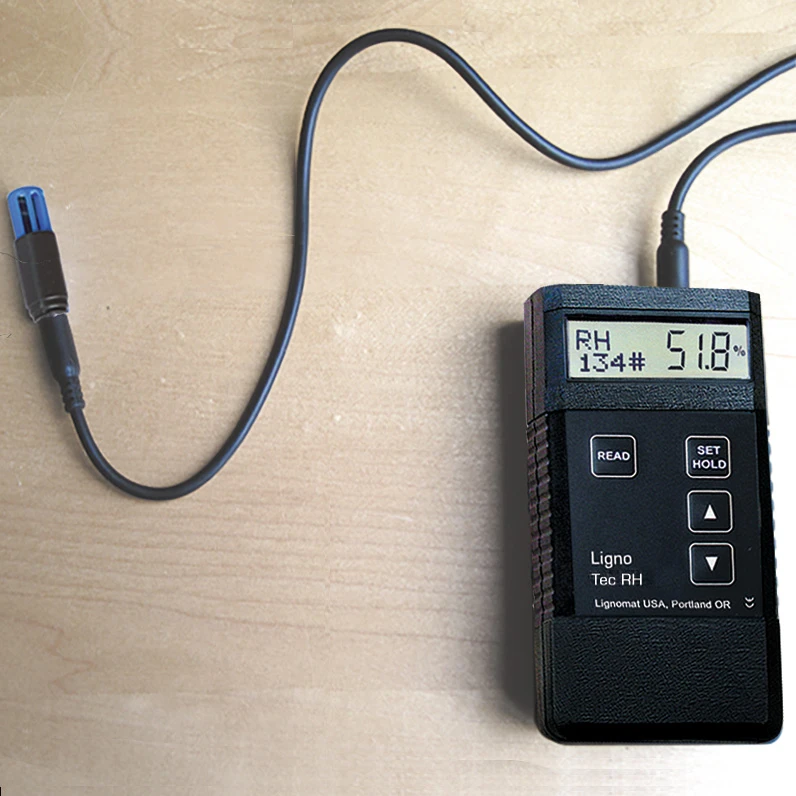

  • Add RH cable for remote measurements.

    Inside wall cavities, heating ducts, behind insulation, attics or crawl spaces, etc.

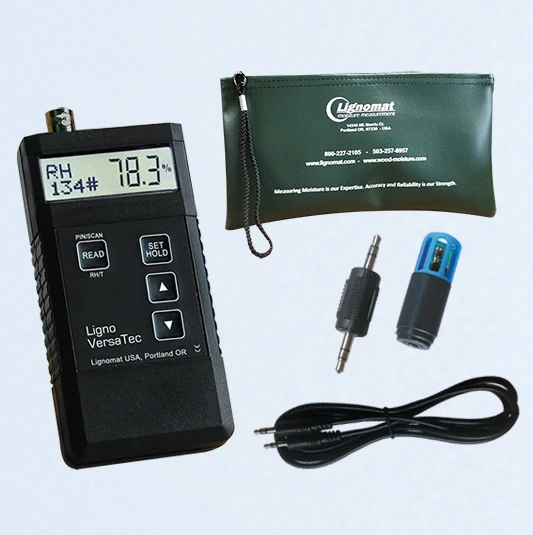

  • Lignomat offers 3 hygrometer packages:
    V-B, BW-B, RH-B.

    With Ligno-VersaTec, DuoTec BW and RH meter

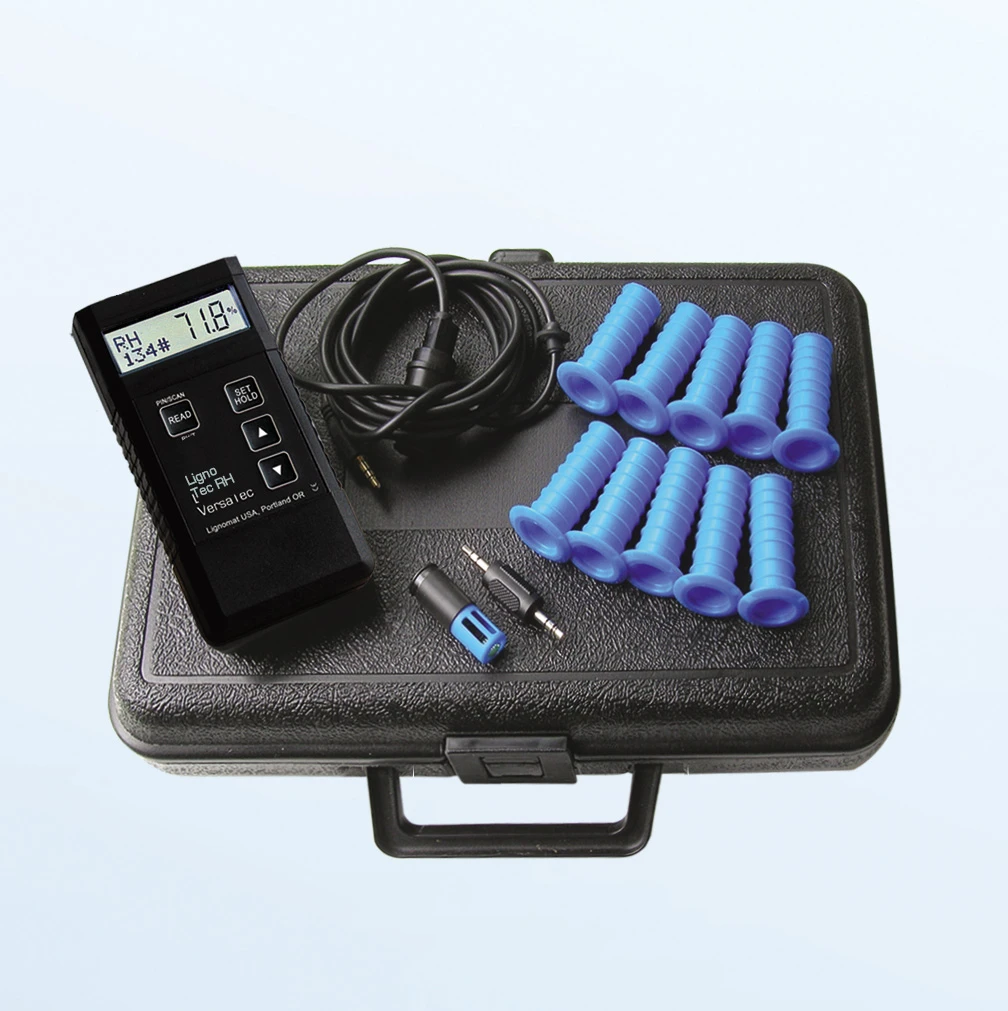

  • Another application for RH BLuePeg probes:
    in-situ RH concrete moisture testing:

    Packages: V2-KM, BW-KS, RH-KS

RH Thermo-Hygro Probe

The precision, fast-acting RH Thermo-Hygro probe is the attachment needed to measure ambient relative humidity and temperature with RH meters from Lignomat:
— Ligno-Tec RH is a RH meter only
— Ligno-DuoTec BW pinless and RH
— Ligno-VersaTec pin, pinless and RH

Relative humidity: Measuring wood moisture and relative humidity are key to understanding moisture problems such as shrinking, warping, cupping of floors, etc. In the restoration industry and for building maintenance humidity levels have to be checked and should always be below the threshhold for mold development. Both applications are equally well covered with this precision RH sensor.

Lignomats RH meters indicate ambient relative humidity, temperature, dew point temperature, and grains per pound RH, T, DPT, GPP. The short RH adapter can be removed and a RH cable can be plugged in for remote measurements. Cables up to 50 ft long are available. Standard length supplied is 6ft.

Item Number: RH-BA

$94.00

Included

Add-ons

Works With

Related Products

Product Description

The RH Thermo-Hygro probe is needed to use the RH meters from Lignomat as thermo-hygrometers. The RH Thermo-Hygro probe consists of 2 parts, the fast-reacting, accurate relative humidity and temperature RH BluePeg probe and the RH adapter to connect to Lignomat’s RH meters.

The RH BluePeg probe by itself has a diameter of 1.5″, length is 1.35 inches. The bottom is open and slots for air circulation are on the side.

The RH Thermo-Hygro probe has a 3.5mm stereo plug which fits in the top of the RH meters. The 3.5mm stereo connection is simple, fast-to-connect and failproof. No pin arrangements have to be fitted, not on the RH meter and not on the RH Thermo-Hygro probe. As soon as the probe is connected, the meter automatically switches to the RH mode and indicates relative humidity, ambient temperature, dew point temperature and grains per pound.

The RH probe uses a single micro-chip as humidity and temperature sensor, factory calibrated to NIST standards. A NIST certificate can be found on this Web page in the document tab. During the first year we offer to check the accuracy of the probe calibration 3 times at no cost. This is helpful to the customers, who use the RH probes for in-situ concrete moisture testing, because ASTM F2170 regulations require a calibration check when the probes are being re-used.

RH meters indicate the measured values for RH, Temp, DewPT and GPP. Each RH probe has an individual probe number programmed on the micro-chip. The last 3 digits of this number are displayed on the RH meters.

The distance from the top of the meter to the end of the probe is 2.25″ including the RH adapter. If that is too short to reach into heat ducts, walls and other small crevices, the shaft of the probe can be extended with the RH depth adapter. For remote measurements the RH adapter can be replaced by the RH cable. The RH cable comes standard 6 ft long, upon request we make longer cables.

RH meters and data loggers:
— Ligno-Tec RH
— Ligno-DuoTec BW
— Ligno-VersaTec

— BL2 RH data logger
— BL2-MC Tracker

The RH adapter connects RH BluePeg probes to RH meters and data loggers.
If you need a cable for remote RH measurements, click here to order the RH cable.
If you need a cable for in-situ RH concrete moisture testing, click here to order the RH concrete cable.

For more information please contact Customer Service at 1-800-227-2105.

Lignomat USA Ltd, 14345 NE Morris Ct., Portland OR 97230, USA,
Email: sales@Lignomat.com, www.Lignomat.com



Specifications



Properties RH Measurements with RH BluePeg Probes
Relative Humidity 0% to 99.9%:  Resolution for entire range 0 to 99.9%  is 0.1%
0% to 10%, ±3%
10% to 90%, ±2%
90% to 99.9%, ±3%
Ambient
Temperature		 5°F to 160°F: Resolution for entire range  is 0.1°F (0.1°C)
5°F to 32°F, ±1°F            (-15°C to 0°C, ±0.5°C for)
32°F to 120°F, ±0.5°F    (0°C  to 50°C, ±0.3°C for)
120°F to 160°F, ±1°F…..(50°C to 70°C, ±0.5°C for)
DPT -17.8°F to 160°F
GPP 0-99.9
Size Ø 0.5 inches (1.27cm), length 1.35 inches (3.8cm)
Multiple slots for air circulation around RH sensing element
Connection Easy-to-connect 3.5 mm stereo connectors.
RH probe comes with jack.
RH adapter and RH cables come with plugs on both ends to connect RH BluePeg probe to moisture meters or data loggers.
Calibration Calibration Salts for 33 and 75% RH available.
During the first year Lignomat checks the calibration three times at no charge.

All Lignomat meters come with a 2-year warranty.
Accessories have one-year warranty.
Battery and pins are excluded.

For more information please contact Customer Service at 1-800-227-2105.

Lignomat USA Ltd, 14345 NE Morris Crt., Portland OR 97230, USA,
Email: sales@Lignomat.com, www.Lignomat.com
