Package V-B

Applications

When both, wood moisture and air humidity need to be measured. For flooring installations, inspections, water damage restoration, and wood production plants. The Ligno-VersaTec – the all-in-one moisture meter – can be used as thermo-hygrometer, pinless meter or pin meter (add electrode).

Advantages

Lignomat’s RH BluePeg probe is accurate with a short response time. A cable for remote readings is included, the depth adapters RH-DA can be added to extend the length of the probe to better reach into small areas.

Besides using the Ligno-VersaTec as thermo-hygrometer, you can use the dual-depth, pinless function to measure wood and a wide variety of other materials, quick and easy. Flooring installers and inspectors select the Ligno-VersaTec for its ability to measure flooring products: wood, bamboo, engineered products, subfloors.


  • Add electrode E12 or E14 to use the Ligno-VersaTec as pin meter.
  • Add sleeves, RH-CC cable and additional RH probes to perform in-situ RH concrete moisture testing in compliance with ASTM F2170.
Item Number: V-B

$489.00

999 in stock

Product Description

The V-B package features a pinless, dual-depth meter measuring a wide variety of materials and a thermo-hygrometer with a fast-responding, precision RH probe and the option to add one of the pin electrodes and accessories for in-situ concrete measurements. When both, wood moisture and air humidity need to be measured. For flooring installations, inspections, water damage restoration, and wood production plants. The Ligno-VersaTec – the all-in-one moisture meter – can be used as thermo-hygrometer, pinless meter or pin meter (add electrode).

The package V-B consists of:

  • Ligno-VersaTec moisture meter
  • RH Thermo-Hygro Probe
  • RH Cable
  • Pouch

Click here for details.

With the V-B package, moisture content and air humidity can be measured. Both values are set into relation to each other in the EMC table, which shows values for stable conditions of wood moisture and relative humidity.


The Ligno-VersaTec is the most advanced meter among Lignomat’s moisture meters for pin-pinless-RH measurements. Features are the wide moisture range and more than 150 correction settings for measuring domestic and tropical wood species, OSB and other panel products, bamboo, gypsum and different types of wall boards. Relative scales are included for concrete, cementitious materials, plastics, insulation…

Connectors for pin electrodes and RH cables or RH adapter are installed in the top of the meter.
– BNC connector for electrode cables and in-kiln, remote cables with Adapter H
– 3.5mm stereo jack to connect RH cable or RH adapter.
Two measuring plates for pinless dual-depth mode are mounted on the back of the meter.


Pinless Measurements
The Ligno-VersaTec meter by itself allows fast and easy moisture testing of flat surfaces 1/4″ and 3/4″ deep. Percent values are indicated for all wood species, OSB and other panel products, engineered floors, bamboo and drywall. Relative scales are for all other materials including concrete. Comparative readings can be obtained for all other moisture sensitive materials. Concrete can be measured in scan mode on setting #25 following ASTM 2659.

If the material is not flat, or measurements should reach deeper or you need to find differences between surface and core moisture, the Electrodes E12 or E14 or E16 can be added to accomplish those tasks.

A pinless advantage: Pinless meters from Lignomat measure lower moisture contents than pin meters. A feature specifically valued by the flooring industry in areas with low relative humidity and high desert climate zones.

To activate the RH mode, plug the RH Thermo-Hygro probe into the top of the meter.


RH Measurements – Thermo-Hygrometer

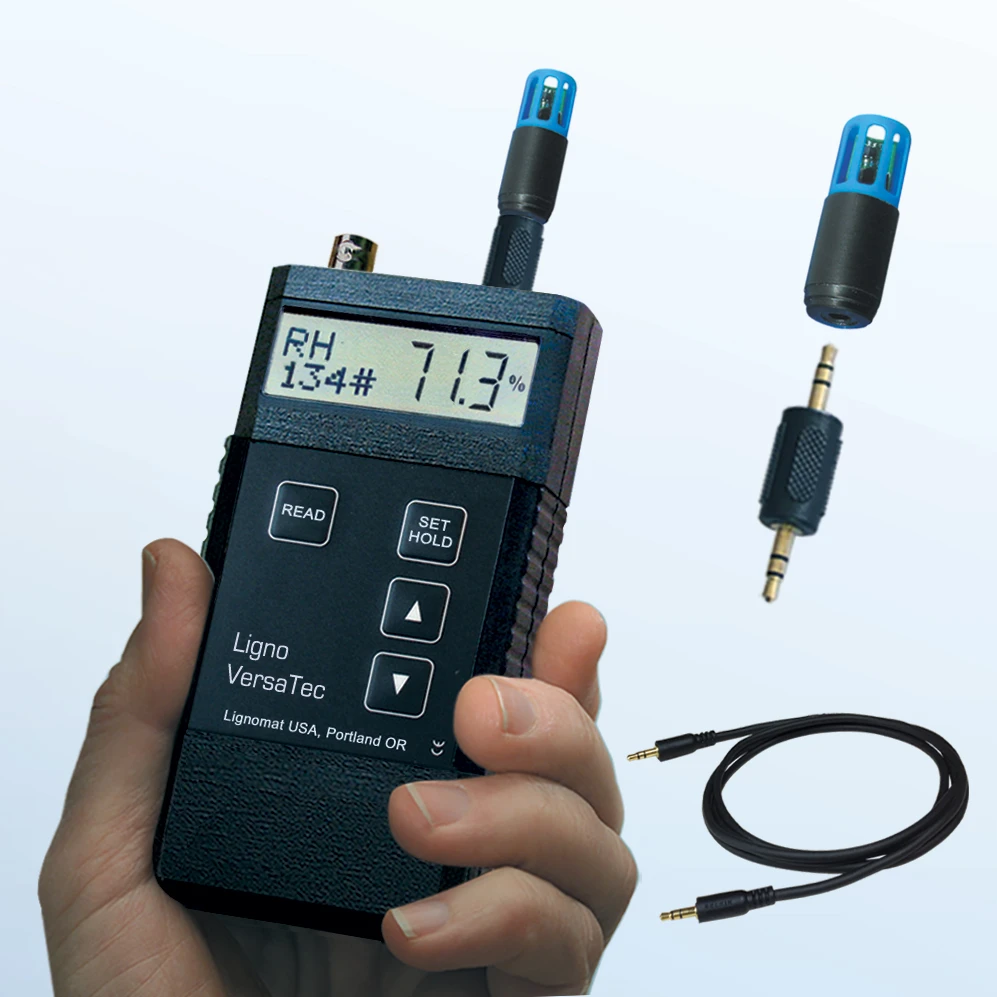

The Ligno-VersaTec has a 35mm stereo jack mounted in the top of the meter to connect the RH Thermo-Hygro probe to the Ligno-VersaTec. The Thermo-Hygro probe consists of 2 parts: First plug the Adapter H into the connector at the top, then the RH BluePeg probe fits into the Adapter RH.

As soon as the connection is established, the Ligno-VersaTec automatically switches into RH mode. When the READ button is depressed, the meter immediately indicates the relative humidity. The up or down keys allow recalling the values for ambient temperature, dew Point temperature and grains per pound (RH, Temp, DewPT, GPP). The display indicates the measured values and the RH Probe number. The RH probe number is an individual 3-digit number to allow keeping track of probes measurements and performance.

RH Adapters and Cables
The Adapter comes with 3.5mm stereo plugs (male) on both ends to connect Lignomat’s RH BluePeg Probe directly to the Ligno-DuoTec BW. A RH cable 6 ft for remote measurements is included with the package BW-B. The cable is used when the probe at the meter cannot reach the area or when the display cannot be seen, while measuring a tight spot. Upon request we make longer RH cables.

The distance from the top of the meter to the end of the probe is 2.25″ including the RH adapter. If that is too short to reach into heat ducts, walls and other small crevices, the shaft of the probe can be extended with the RH depth adapter.

Specifications RH BluePeg Probe – accurate and fast responding
RH: ±2% (10-90%), ±3% below 10%, above 90%
T: ±0.5°F (32-120°F) , ±1°F (5-32°F and 120-160°F) Response time 8 sec.
Resolution for RH and T: 0.1% and 0.1°

Note: Off-the-shelf thermo-hygrometers usually come with an accuracy rating of  ±5% for relative humidity and  ±2°F for temperature.


Options:

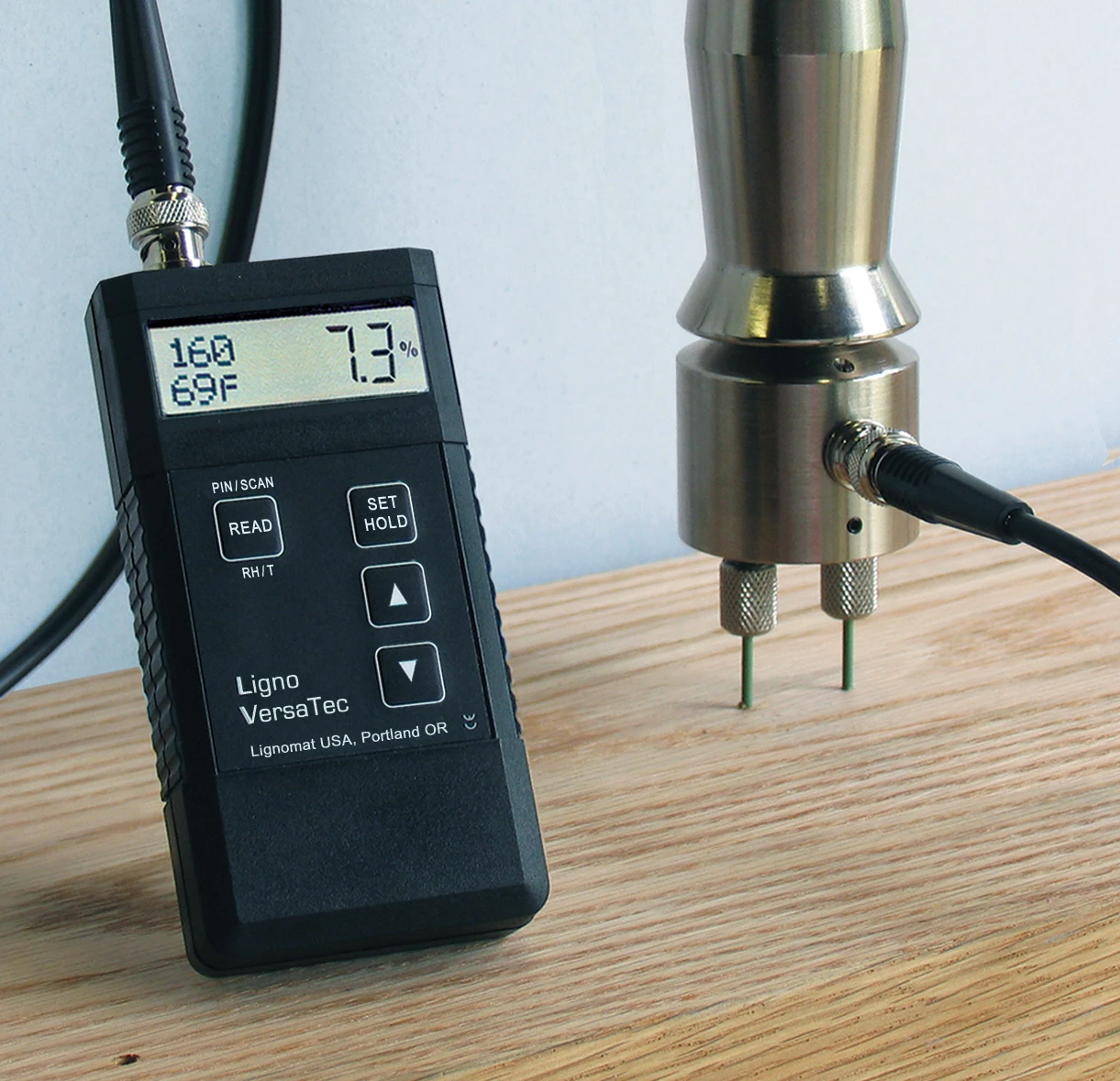

  • Add depth electrode E12 with slide-hammer for wood, wood floors and structural elements in buildings.

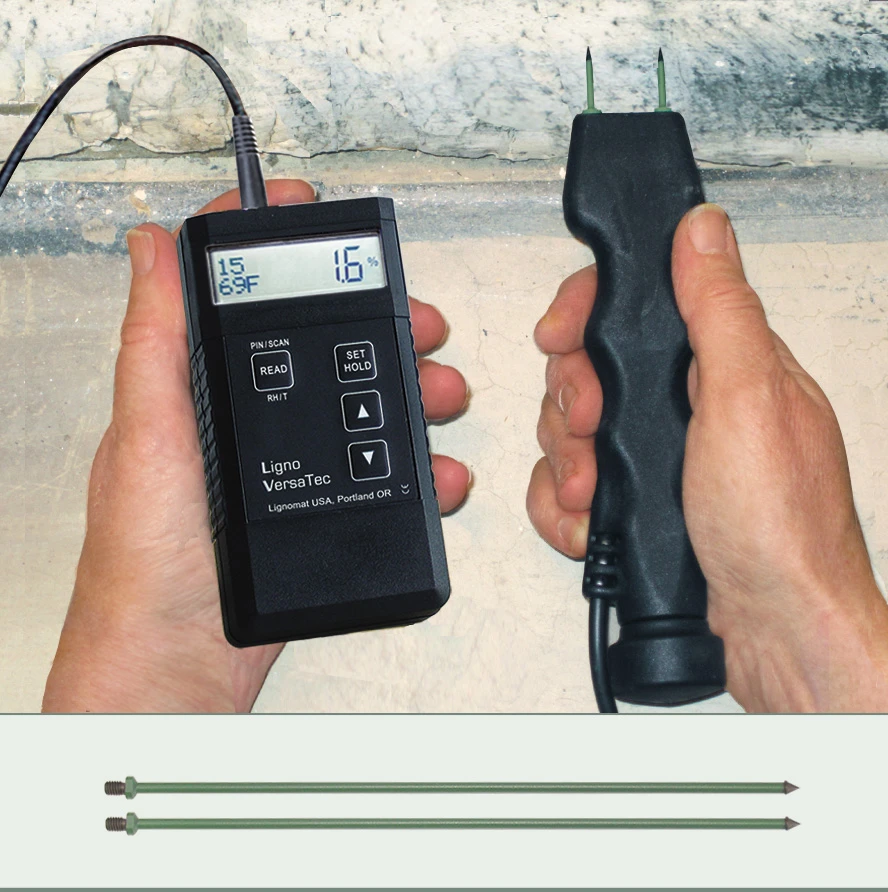

  • Add inspection electrode E14-V for assessing moisture conditions in walls, ceilings, roofs…
  • Add concrete electrode E16 to obtain instant concrete measurements up to 7″.

Info on in-situ probe testing of concrete
Info on Lignomat’s RH in-situ probes


For more information, please contact Customer Service at 1-800-227-2105.

Lignomat USA Ltd, 14345 NE Morris Ct., Portland OR 97230, USA,
Email: sales@Lignomat.com, www.Lignomat.com

Package Includes

Ligno-VersaTec

Pin – Pinless – RH. Meter comes with a BNC connection for external electrodes or in-kiln cables and a connector for Lignomat’s RH BluePeg probe. Manual, laminated species card, battery and a pouch with belt loop.

The Ligno-VersaTec has 170 individualized correction settings for domestic and tropical wood species, bamboo, gypsum and wall boards (water resistant, interior and exterior). Wood temperature corrections are built-in for pin mode and dual-depth measuring mode for pinless.

RH Thermo-Hygro Probe

RH Thermo-Hygro Probe consists of one RH BluePeg Probe and the RH Adapter ready to be connected to the RH meter or data logger using the easy-connect 3.5mm stereo plug.

RH adapter can be replaced by RH-C cable (6 ft) for remote measurements

RH Cable

Cable is used to connect RH BluePeg probe to the Ligno-VersaTec.

Standard length 6 ft, upon request longer.

Pouch

Pouch with zipper and carry strap.
For all parts V-B

Specs VersaTec

Properties Pin Mode Pinless Mode
Moisture Range 5-99%* 5-60%*
Resolution 0.1% for entire measuring range 0.1% for entire measuring range
Measuring Depth Up to 2″ with electrode E12 (5 cm)
Up to 7″ with electrode E14, E16 (17.5 cm)
Up to 2 ½″ with PK probes, in-kiln
1/4″ and 3/4″ deep (7 mm and 20 mm)
Wood Species Corrections Over 150 individualized settings Over 150 individualized settings
Wood Temperature Corrections 0°F to 210°F -10°C to 95°C Not necessary.
Reference Scale  for non-wood building materials (0-99) 3 sensitivity levels: wood, concrete, and other materials (0-99)
Calibration The calibration is internally checked before each reading and automatically adjusted if needed. Test blocks available. The calibration is internally checked before each reading and automatically adjusted if needed. Test blocks available.
Battery One 9 V battery One 9 V battery
Size 2.5″ x 4.75″ x 1″
(60 mm x 120 mm x 25 mm)
2.5″ x 4.75″ x 1″
(60 mm x 120 mm x 25 mm)
Weight 8 ounces (200 g), made out of high-impact plastic 8 ounces (200 g), made out of high-impact plastic
Electrodes Electrode or PK Probe required No attachments necessary



Properties RH Measurements with RH BluePeg Probes
Relative Humidity Range 0% to 99.9%
±2% for 10% to 90%
±3% for below 10% and above 90%
Resolution for entire range is 0.1%
Ambient
Temperature
Range 5°F to 160°F  (-15°C to 70°C)
±0.5°F for 32°F to 120°F  (±0.3°C for 0°C  to 50°C, )
±1°F for 5°F to 32°F .(±0.5°C for -15°C to 0°C, )
±1°F for 120°F to 160°F .(±0.5°C for 50°C to 70°C, )
Resolution for entire range  is 0.1°F (0.1°C)
DPT -17.8°F to 160°F (0°F to 70°F)
GPP 0-99.9
Resolution 0.1
RH Probe Ø 0.5 inches (1.27cm), length 1.35 inches (3.8cm)
RH Probe
Connection
Easy-to-connect 3.5 mm stereo connectors.
RH probe comes with jack.
RH adapter and RH cables come with plugs on both ends to connect RH BluePeg probe to moisture meters or data loggers.
Sleeves
Hole Liners
1.8″ and 3.0″ long. Sleeves that can be shortened to desired lengths. Extension past 3″ is available.
Calibration All RH BluePeg probes are NIST certified
Calibration
Check
Calibration Salts for 33 and 75% RH available.
During the first year Lignomat checks the calibration three times at no charge.
Meter 4.75″ x 2.5 x 1″ (12cm x 6cm x 2.5cm)
Weight 8ounces
Warranty All moisture meters have a 2 year warranty. All accessories incl. RH BluePeg probe have a 1 year warranty and battery is excluded

All Lignomat meters come with a 2 year warranty. Accessories have one year warranty. Battery and pins are excluded.

  • *Measuring range depends on wood species settings.
  • *Moisture measurements above fiber saturation point are less accurate.
  • *Pinless meters from Lignomat can read lower moisture content than pin meters.
