• RH Depth-Adapter makes RH BluePeg probe longer to:

    • Meaasure thick concrete slabs.
    • Measure deeper with hand RH meter.

  • One or more RH depth-adapters can be added to measure hard-to-reach places, wall cavities or duct work.

  • The RH depth-adapter makes cable connections easy, when the RH probe is in a sleeve 2.4″ or deeper.

  • All connections are simple, fast-to-connect and fail-proof 3.5mm stereo plugs.

  • Lignomat offers three RH meters with packages for in-situ RH concrete moisture testing:
    V2-KM, BW-KS, RH-KS.

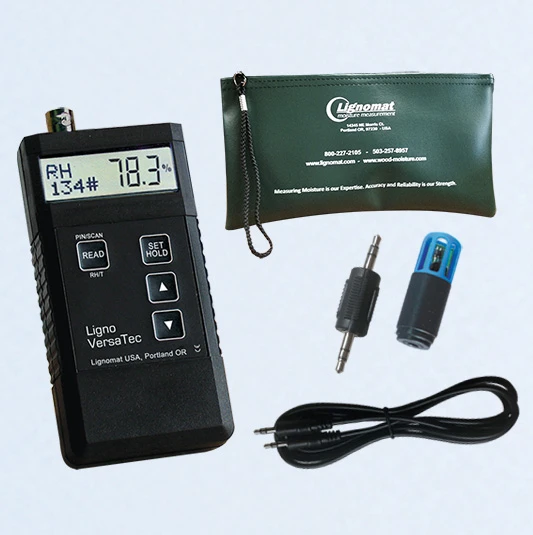

  • Lignomat offers three thermo-hygrometer packages V-B, BW-B, RH-B.

    Add RH depth-adapter to reach deeper.

RH Depth-Adapter

The RH depth-adapter is used to extend the length of the RH BluePeg probe.

In-situ RH concrete moisture testing: When the measuring depth is over 2.4″, the RH probe by itself sits too low in the sleeve to easily connect the RH concrete cable. Using the depth-adapter brings the connection for the RH concrete cable closer to the surface.

In-depth measurements: When the RH probe is not sticking out far enough above the top of the meter to reach into small places, wall cavities or duct work, the RH depth-adapter is added to elongate the RH BluePeg probe.

The RH depth-adapter has simple, fast-to-connect and fail-proof 3.5mm stereo connectors, one jack and one plug. No pin arrangements have to be fitted, not on the RH meter, RH adaptor or probe.

Lignomat offers three RH meters and two data loggers:
— Ligno-Tec RH  — Ligno-DuoTec BW  — Ligno-VersaTec

— RH data logger BL2 Memo-Chip
— MC Moisture Tracker

Item Number: RH-DA

Starting at $4.00

Add-ons

Works With

Related Products

Product Description

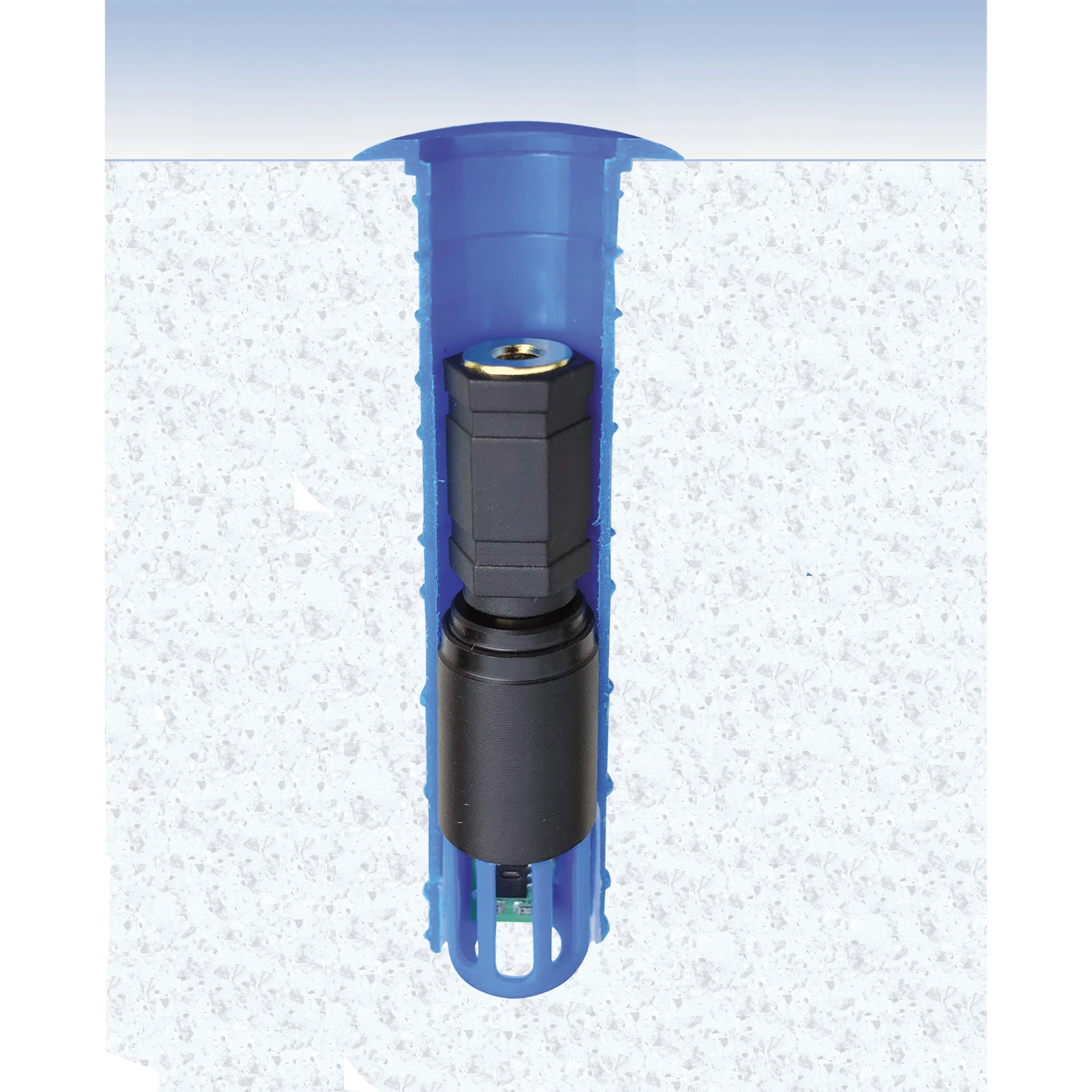

—The RH depth-adapter is used for in-situ RH moisture testing of thick concrete slabs, when the measuring depth is over 2.4″. Because of the depth of the hole, the RH BluePeg probe is so far down, that it is hard to directly connect the RH concrete cable. One or more RH depth-adapters can be connected to the RH probe before the probe is inserted into the sleeve or plastic hole liner (for over 3.25″ measuring depth). This brings the cable connection closer to the surface for easy plug-in.

—The RH depth-adapter is also used to make the shaft of the RH probe longer when measuring relative humidity in hard-to-reach places, wall cavities or duct work. Again, one or more RH depth-adapters can be added to further increase the reach of the RH probe.

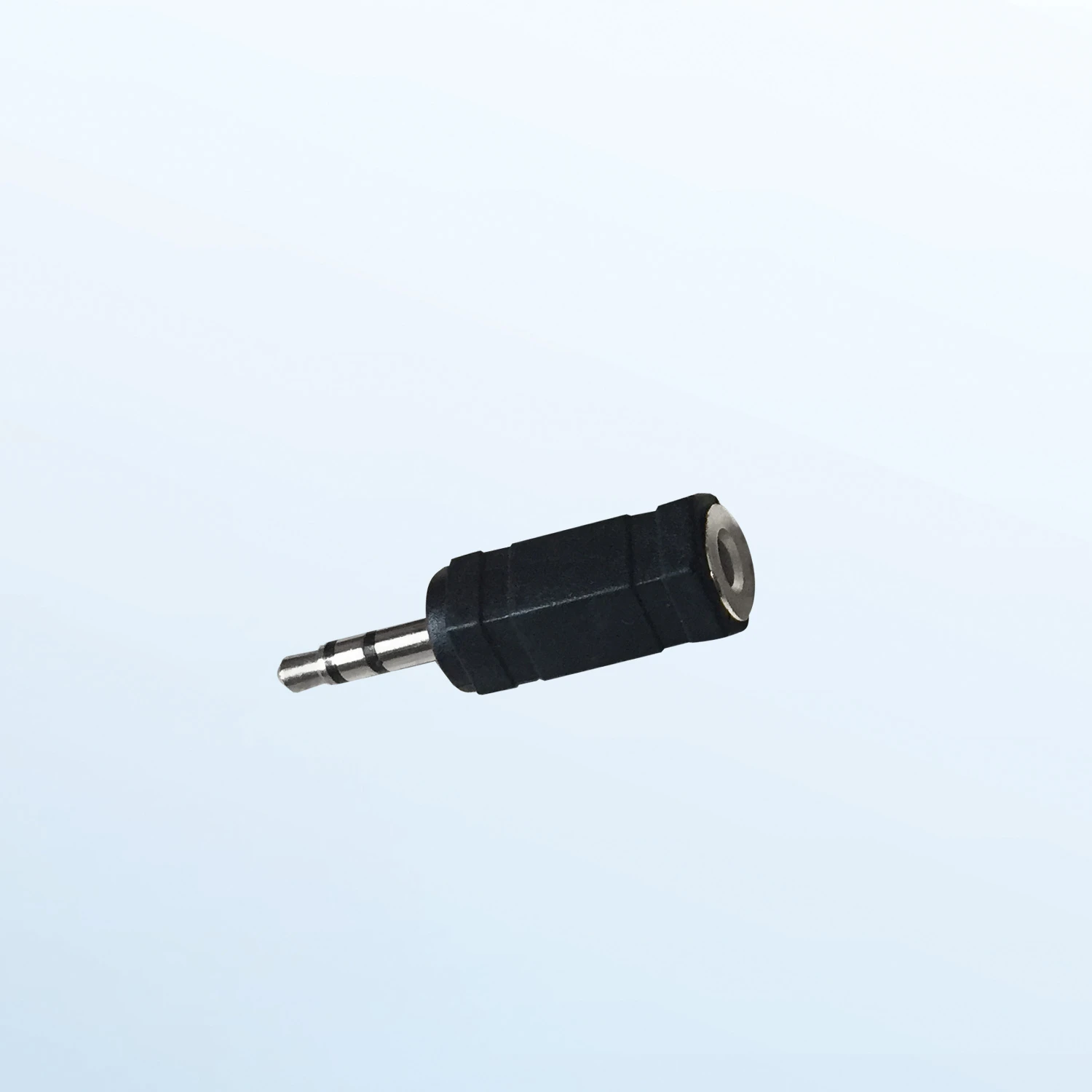

The RH depth-adapter is placed between the RH BluePeg probe and the RH adapter or one of the RH cables. The depth-adapter including the plug is 1.5″ long. The black part is 1″ long. Several depth adapters can be stacked to make the RH probe even longer, one inch for each adapter. The connection is made by a simple, fast-to-connect and failproof 3.5mm stereo plug and jack. No pin arrangements on the meter, adapter or probe have to be fitted.

When using the depth-adapter, RH adapter or RH cables are still necessary to connect to the RH meters or data loggers:

— Ligno-Tec RH: RH only
— Ligno-DuoTec BW: RH and pinless
— Ligno-VersaTec: RH and pinless and pin

— RH data logger BL2 Memo-Chip
— MC Moisture Tracker: RH and moisture content

If you need a cable for remote RH measurements, click here to order the RH cable.
If you need a cable for in-situ RH concrete moisture testing, click here to order the RH concrete cable.

If you need shorter sleeves than 1.5″, the RH BluePeg probe is sticking out over the concrete surface and you need the RH top-extenders to cover, protect  and seal the probe.

For more information please contact Customer Service at 1-800-227-2105.

Lignomat USA Ltd, 14345 NE Morris Crt., Portland OR 97230, USA,
Email: sales@Lignomat.com, www.Lignomat.com
