Pin – Pinless – RH: When moisture and humidity need to be measured, the Ligno-VersaTec combo moisture meter offers the best solutions – all in one meter. The moisture meter features the most advanced measuring technology for pin and pinless moisture meters with individual correction settings for over 150 wood species. A wide moisture range for pin mode (5-99*), with built-in wood temperature corrections (pin only) and dual-depth capability for pinless.

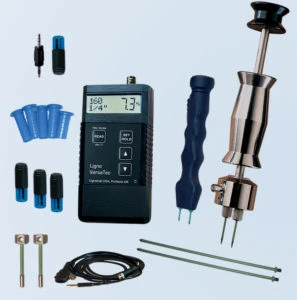

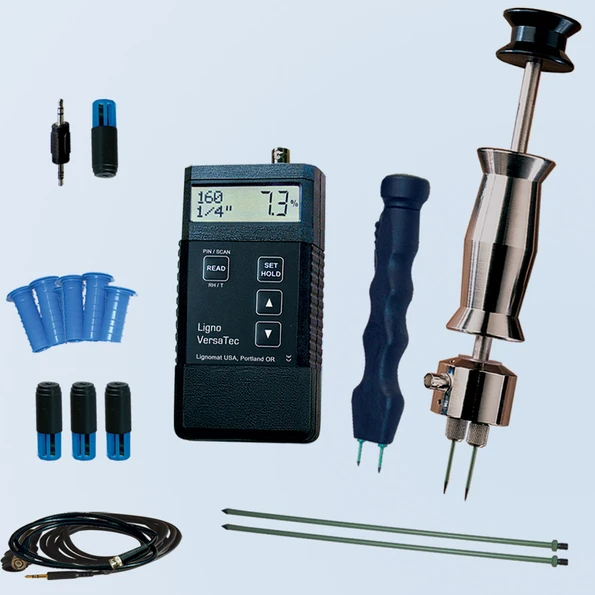

The Ligno-VersaTec combo moisture meter by itself is a fully functioning pinless moisture meter which provides precise moisture percentages, but can also be used for quick-scanning areas for high and low moisture levels. To use pin mode, add one of Lignomat’s electrodes. To use the RH / Thermo-Hygrometer mode add Lignomat’s RH BluePeg Probe.
Corrections are built-in for pin and pinless mode for:
- domestic and tropical wood species
- OSB, Advantech, sub floors, engineered floors and other panel products
- gypsum (sheetrock, water resistant, interior and exterior glass mat wall boards).
- reference scales tailored to the products to be measured: wood composites, laminated panels, vinyl, textile, lightweight building materials and heavy building materials such as concrete (ASTM F2659), tile, stone, etc.
* Solid and engineered bamboo: Lignomat developed a set of special calibrations for the flooring industry. Bamboo calibrations for pinless measurements are different from wood calibrations to fit horizontal, vertical, strand and engineered Bamboo products in pinless mode.
The moisture meter provides for pin, pinless and RH measurements:
Pinless: Two flat measuring plates are mounted on the back of the meter.

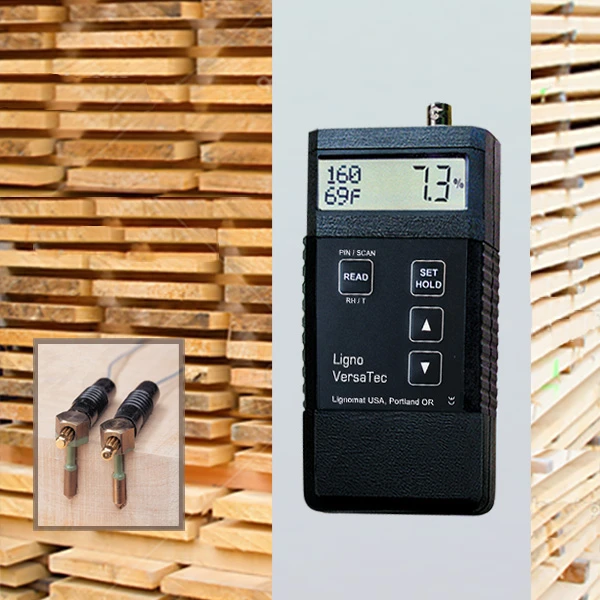

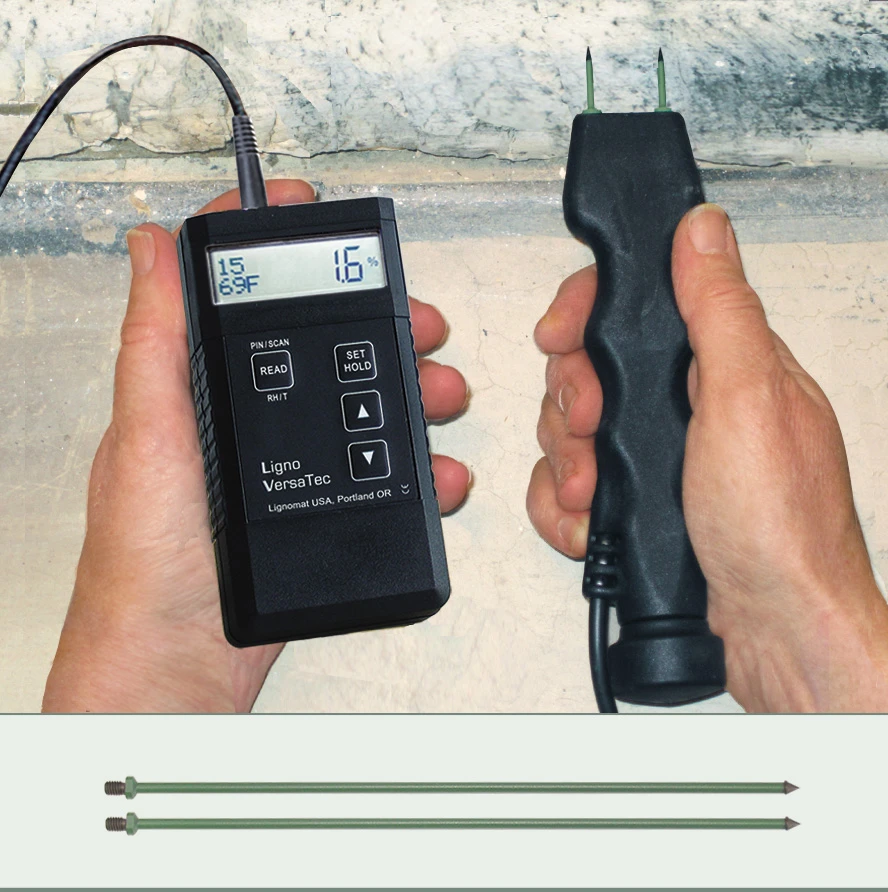

Pin: BNC connector for electrode E12/E14/E16 and in-kiln and building monitor cables (needs Adapter H)
RH: 3.5mm stereo jack to connect RH cable or RH adapter.
Calibration Stability: The Ligno-VersaTec moisture meter has proven to be a trustworthy moisture meter. The calibration for pin and pinless mode is checked internally before each measurement and if necessary, automatically adjusted. These “background checks” before measurements assure calibration consistency for every reading for Lignomat’s pinless moisture meters. Manual re-calibration by the customer is not necessary. Lignomat offers an external calibration check block TS for scan and TP for pin to confirm the accuracy and functionality of meter, cable and electrode..

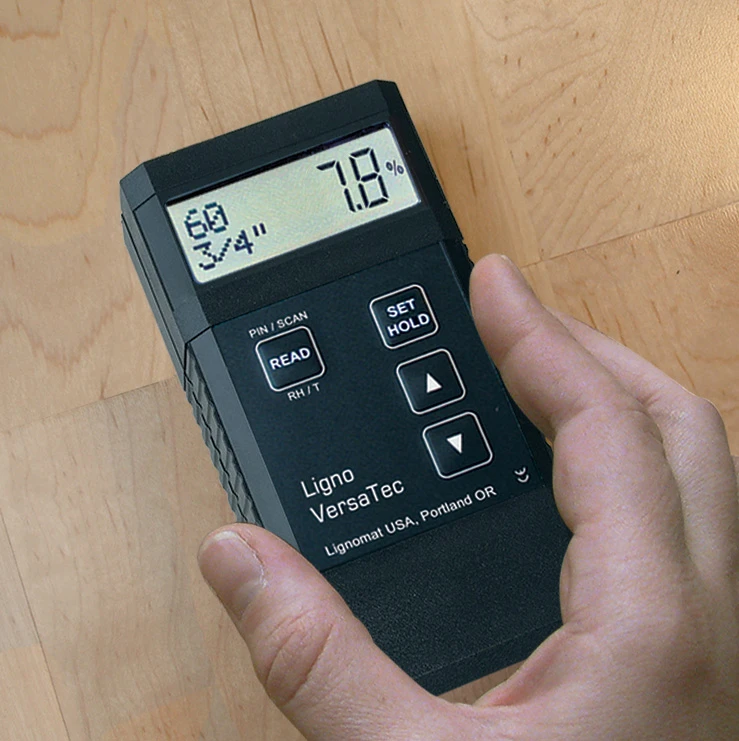

Pinless Mode: Lignomat’s unique pinless measuring technology assures calibration accuracy, reliability and dual-depth measuring capability, measuring depth 1/4″ and 3/4″. The meter indicates wood moisture in percent, corrected for 150 different settings. Specific gravity can also be entered to correct for different wood species, settings between 30-100 (0.3 – 1.0).
Pinless advantage: Pinless moisture meters from Lignomat measure lower moisture contents than pin moisture meters. A feature specifically valued by the flooring industry in areas with low relative humidity and high desert climate zones.
Reference Scales: Reference scales are used in pin and pinless mode to compare moisture levels, when measuring materials where a correction setting is unknown. This could be a flooring material, plastic and other materials used in the building envelope. Ref. scales are often used in the restoration and building industry to quickly detect different moisture levels.
Reference Scale for Concrete: Moisture conditions within the upper 3/4″ depth can be measured. When performing in-situ probe testing in concrete, pinless measurements can find areas of high moisture levels where in-situ probes should be set. However, it is not the right method to determine if a concrete slab is dry enough for resilient floor coverings to be installed. For more information go to the NWFA Installation Guidelines. For use of pinless moisture meters see ASTM F2659.
Many materials other than wood products can be checked to determine different moisture conditions. When measuring wood, the Ligno-VersaTec combo moisture meter gives accurate moisture readings in percent corrected for different wood species.

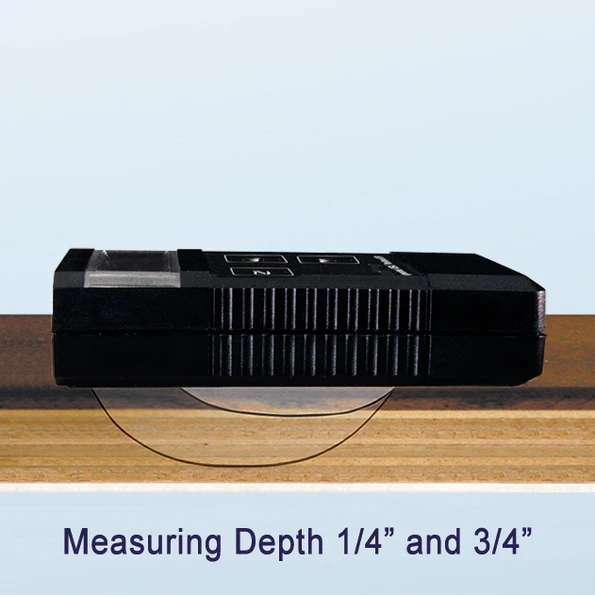

Measuring Depth Pinless: Selectable measuring depth 1/4″ and 3/4″ is another plus for the Ligno-VersaTec. The measuring depth for all pinless moisture meters is crucial. Most pinless moisture meters are calibrated for a product thickness of 3/4″, which allows measuring products between 3/4″ and 1.5″ thick (if both sides are accessible for measurements). That presents a problem for thinner products. With the dual-depth Ligno-Scanner SD you can measure all products from veneer up to 1.5″ thick.
If you would measure products thinner than 3/4″ with a measuring depth of 3/4″, the indicated value is wrong. For products thinner than 3/4″, which are laying on a solid surface (concrete, sub floor, work table), measurements could be too high, because the solid surface is included in the measurements. If thinner products are measured with an air space underneath, measurements will be too low, because not enough material is underneath the measuring plates. The 1/4″ depth gives accurate measurements for products 5/8″ or less . Even veneer can be measured.
The moisture meter is sensitive to surface moisture and for that reason it is ideal to check waterborne finishes between coatings or to check dryness of surfaces after industrial cleaning.

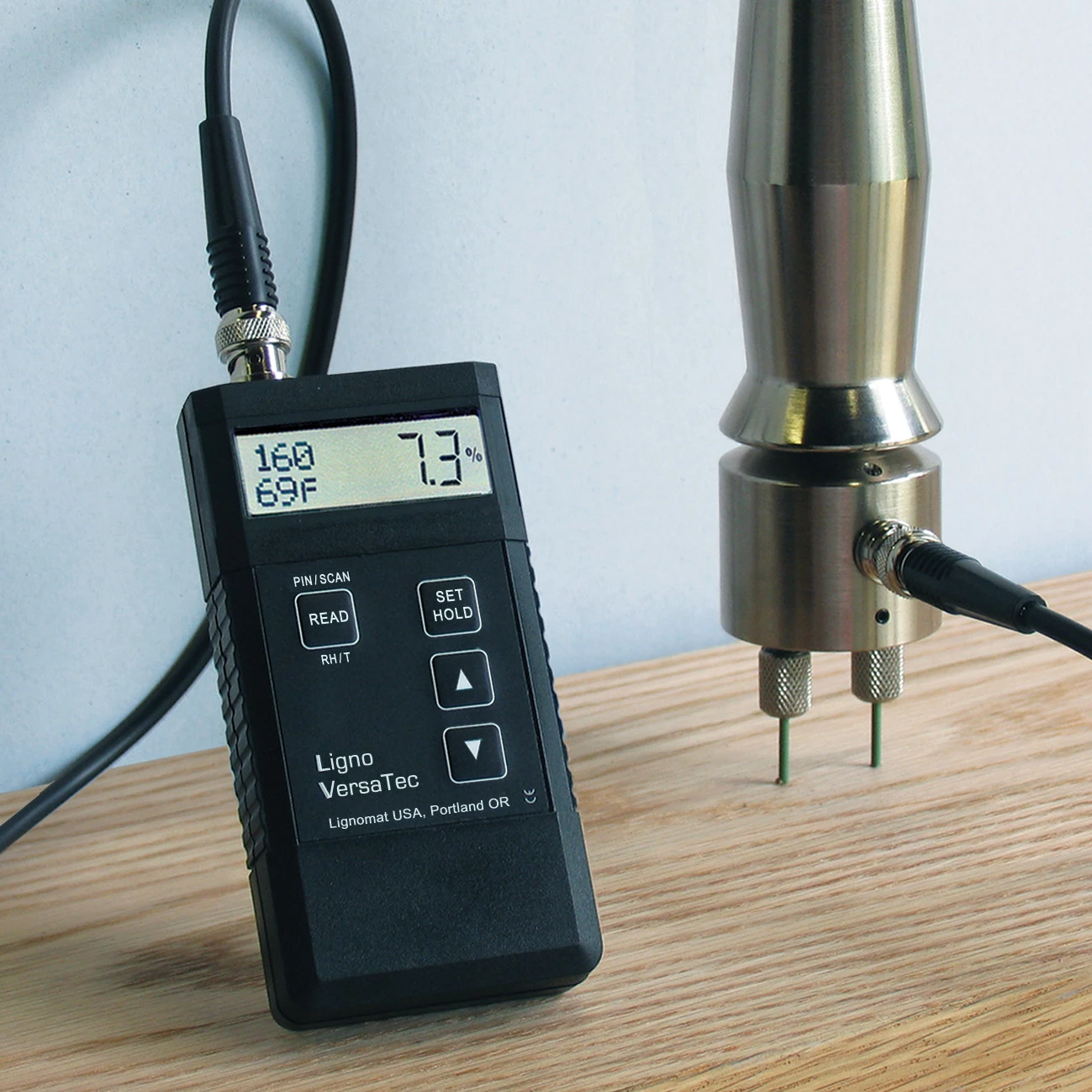

The pin mode of the VersaTec is the same as the pin mode in the Lignometer K (pin moisture meter only).
The pinless mode of the VersaTec is the same as the pinless mode in the Ligno-Scanner SDM (pinless moisture meter only).
The RH mode of the VersaTec is the same as the RH mode in the Ligno-Tec RH (RH meter only)

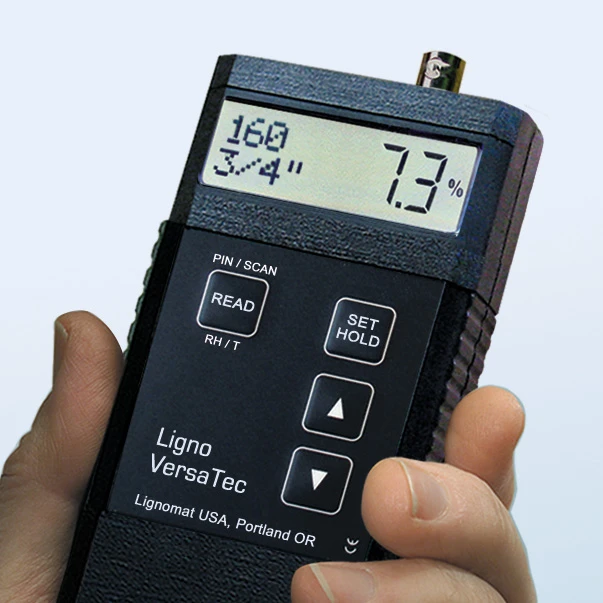

Operation: Working with the Ligno-VersaTec is simple with clearly marked push buttons. Moisture meter fits comfortable in your hand for pin and pinless readings. Functions include:
- SET: to dial species, wood temperature and measuring depth.
- READ: to obtain moisture measurements.
- HOLD function is available for measuring in places, where the display cannot be seen or when taking photos of the display
- Instrument stays on for 3 minutes, then turns itself off.
- While in pinless mode, measuring depth can be changed by depressing up or down keys.

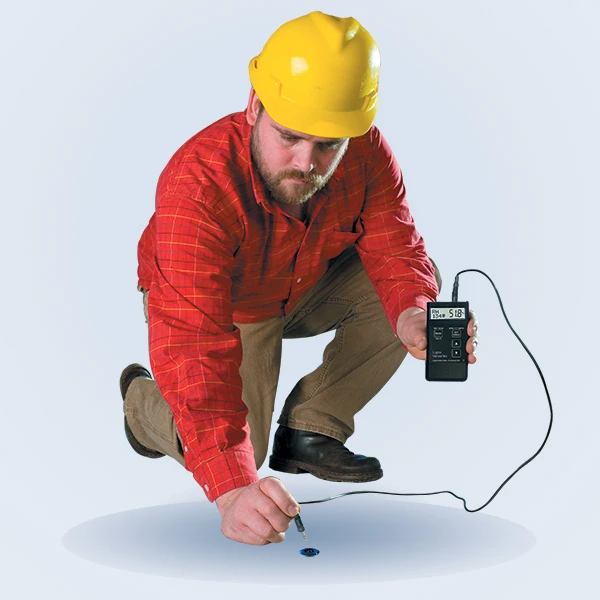

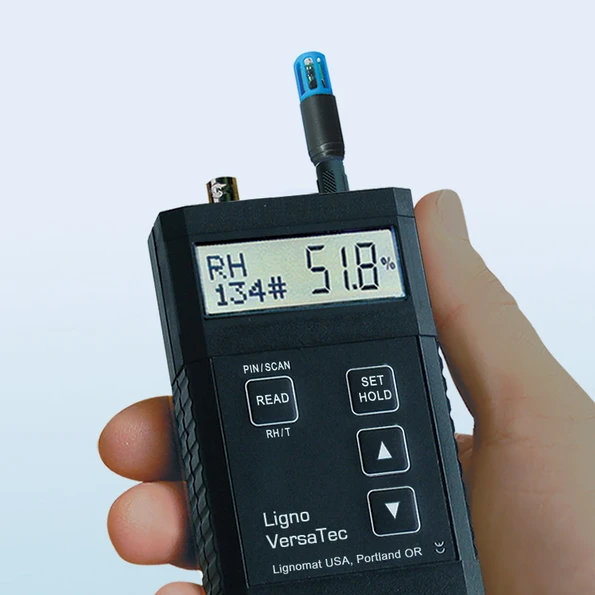

- When the RH BluePeg is connected, the moisture meter automatically switches to RH mode. No further set-up is necessary.
- Display shows moisture percentage, wood species, wood temperature (only pin) and depth settings (only pinless).
For more information please contact Customer Service at 1-800-227-2105.
