Product Description
Track Moisture with Lignomat’s Tracker MC/RH
For short term and long term monitoring. In order to ensure a leak is fixed or to ensure a moisture problem has not returned to a site it is important to track moisture. With this easy to use Tracker MC/RH Lignomat can solve a lot of problems for you.
The Tracker MC/RH module contains state-of-the-art measuring circuitry for relative humidity, ambient temperature and moisture measurements. Track moisture in wood, drywall and other building materials. Measuring cables from the measuring points are plugged into the Tracker which includes a datalogger to log all the measurements.

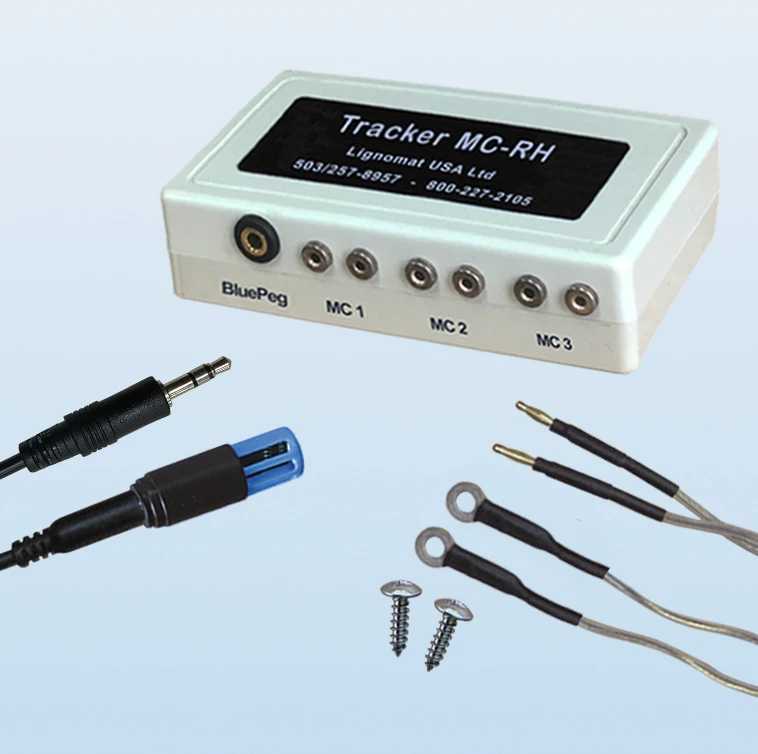

Data Logging: Probes, pins or screws, RH BluePeg probe and connecting cables are installed and plugged into the Tracker. Length of cable can be customized depending on job. Then, the Memo-Chip BL2 is set up for the test series and connected to the Tracker. Now you are ready to track moisture.
The BL2 initiates measurements at pre-set time intervals. The moisture Tracker takes measurements from all measuring points and the BL2 saves the measurements. The BL2 can save up to 32000 sets of RH and MC measurements with date and time stamp. Data can be downloaded and reviewed on a PC.
Tracker MC/RH:
The moisture Tracker MC/RH functions as 3 moisture meters and 1 thermo-hygrometer, taking measurements at preset time intervals.

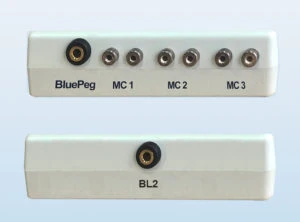

The Tracker has connectors for 4 cables in the front and 1 cable in the back. All connections are plug-ins, easy to use and fail-proof.
The connectors in the front are for the measuring cables:
Three sets of 2mm jacks are for 3 cables with 2mm plugs coming from screws, probes or pins installed in the material for moisture measurements. One 3.5mm stereo jack on the left is for a RH cable or RH adapter to connect the RH BluePeg probe for relative humidity and temperature measurements.
The connector in the back is a 3.5mm stereo jack to connect a RH cable or RH adapter to the Memo-Chip BL2 to save measurements.
This 2-module system with BL2 and Tracker MC modules allows for installing probes, cables and the moisture Tracker permanently and leaving the BL2 in an easy-to-retrieve location for intermittent data retrieval. Upon request, the RH cable between Tracker and BL2 can be custom cut to allow remote placement of the Tracker.
Measuring cables:
- If screws are used, LP-mini cables connect to Tracker.
- If EL or EG pins are used, LP-mini cables with Loop Nuts connect to Tracker.
- If PK Probes are used, PK-mini cables connect to Tracker.
- For RH probes, RH cables with 3.5mm plugs are used to connect to Tracker.
Data communication cable: A RH cable with 3.5mm plugs is used for the connection between Tracker and Memo-Chip BL2.
Specifications:
Tracker MC-RH
Size; 4″ x 2.5″ x 1″ (10cm x 6.4cm x 2.6cm)
No battery needed, measurements are initiated and recorded by the BL2 Memo-Chip.
Built-in connectors for
– cables to measure moisture content and relative humidity
– cable to connect BL2
Moisture Measurements
Tracker MC/RH can track moisture in wood, drywall and other moisture-absorbing materials.
Measuring range for wood is 5-99.9%.
With built-in temperature probe for wood temperature corrections
Final moisture values which appear in graph and log on PC are corrected
- for the wood temperature as measured by the Tracker
- for the wood species as selected when the BL2 is set up for the test
- for drywall settings and for reference scales as selected when the Bl2 is set up for the test
RH Measurements
RH: ±2% for 10-90%, ±3% for 0-10% and > 90%
T: ±0.5°F for 32°F to 120°F, ±1°F less 32°F to 5°F and above 120°F to 160°F
For more information, please contact Customer Service at 1-800-227-2105.
Lignomat USA Ltd, 14345 NE Morris Ct., Portland OR 97230, USA,
Email: sales@Lignomat.com, www.Lignomat.com
