Loop nuts are used to secure a tight connection between the loop cables and the pins (EA-EL) for monitoring.
They have a knurled grip on the outside and a thread inside. They are screwed onto the pins EG, EL, EA, EC, EV (pins for E14 and E10) Once the loop nuts are tightened down, they hold the loops of the cable in place and make sure there is a stable electrical connection between the pins and the cable.
Each loop nut comes with a rubber cap.
Dimensions: diameter 1/4″ (6mm), heights 5/16″ (8mm).
Loop nuts are used with all loop cables from Lignomat and EA-EL pins:

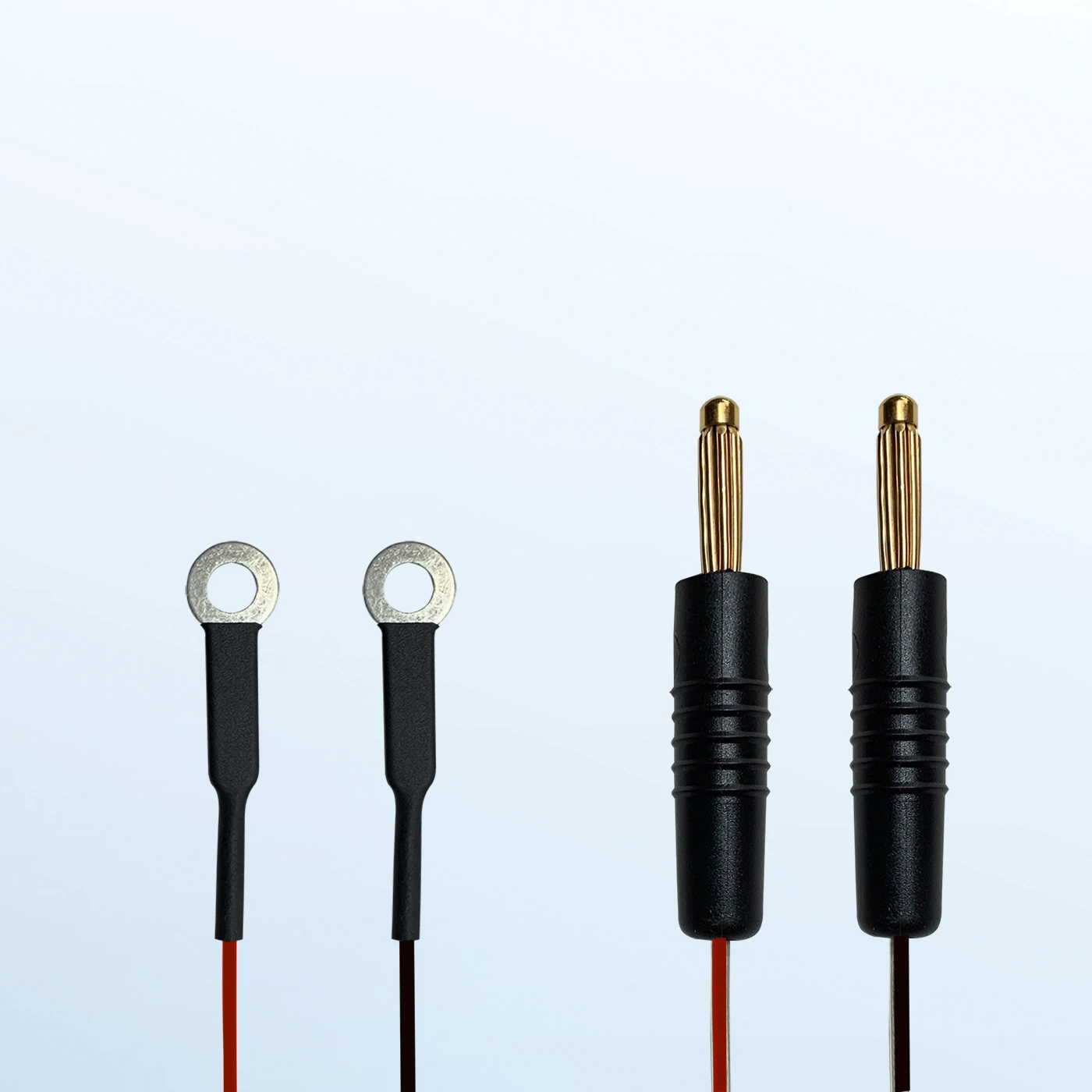

- LP-H cable with Lignometer K and Ligno-VersaTec

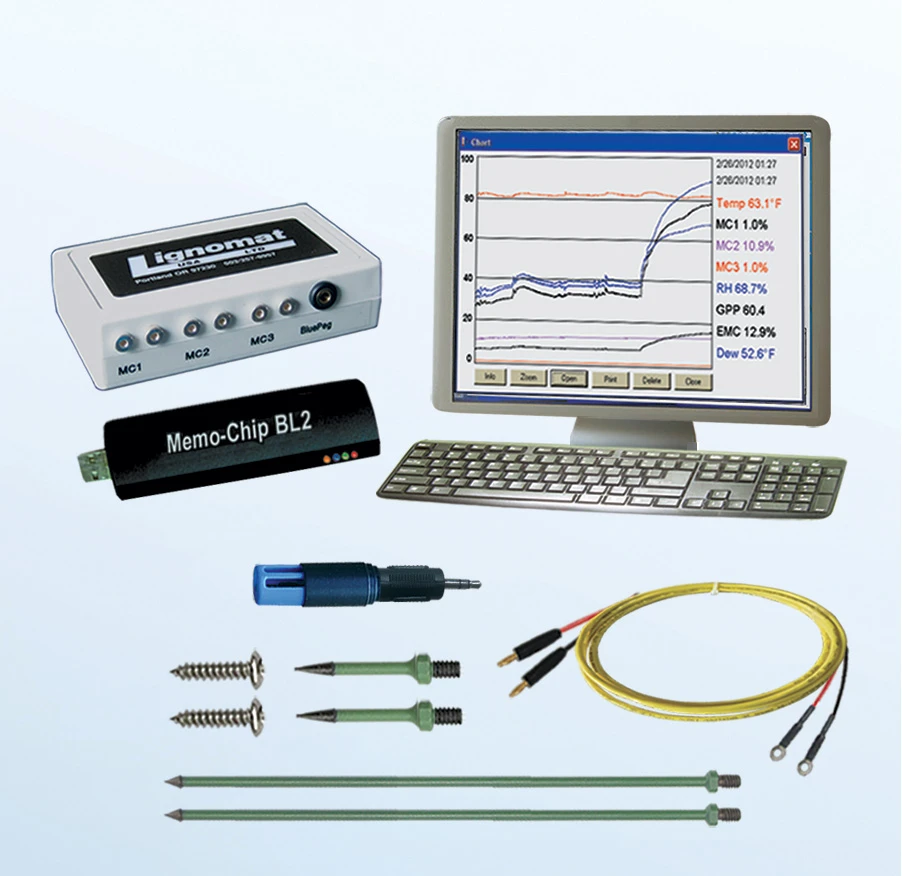

- LP-mini cable with mini-Ligno C’ models and the MC Tracker data logger
- LP-Hf cable with wireless transmitters.
If stainless steel screws are used for monitoring, loop nuts are not necessary. Pins for Electrode E12 have a round end piece, they cannot be used for monitoring with loop cables.
Loop nuts are not supplied with loop cables or the pins, they need to be ordered separately. Order as # LP-N
For more information please contact Customer Service at 1-800-227-2105.
