Product Description
Package M6-P
Meter is used for measurements in wood from 6 to 25% moisture or to take comparative measurements in other moisture sensitive materials. The electrode E16 is added for special applications, where two single posts are easier to place. Depth measurements up to 7″ with EL pins.

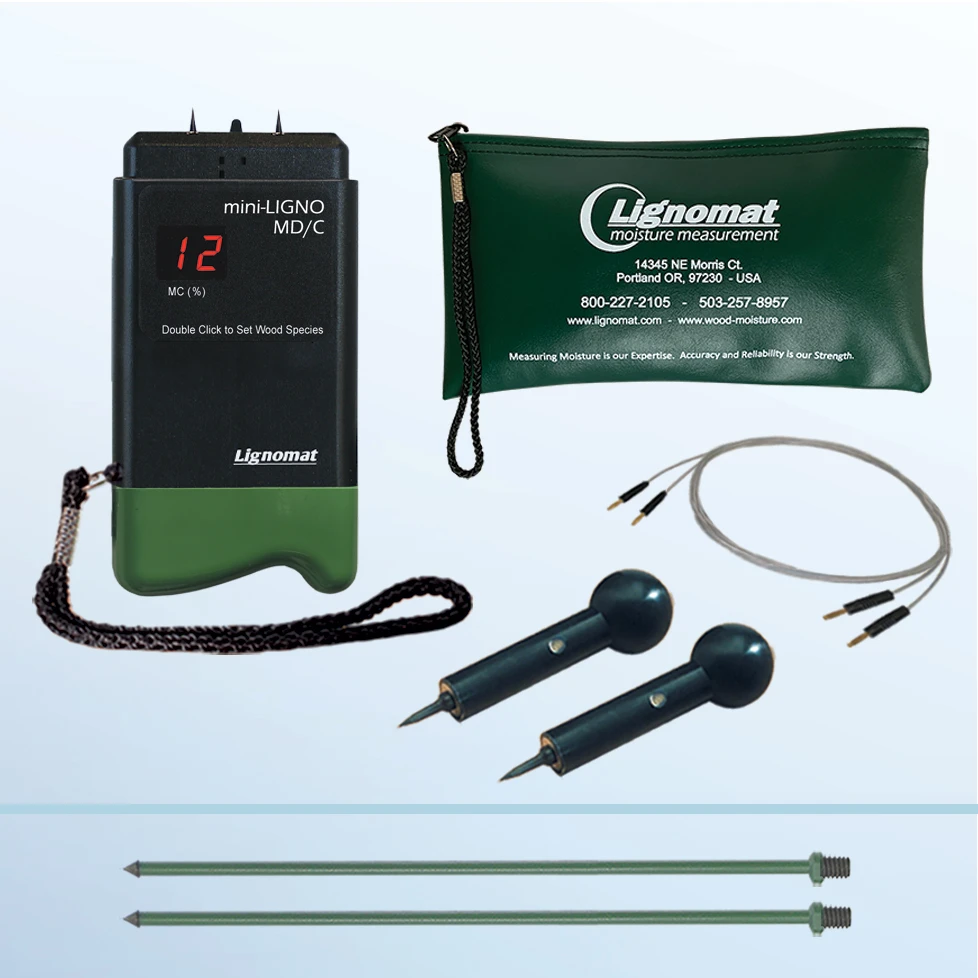

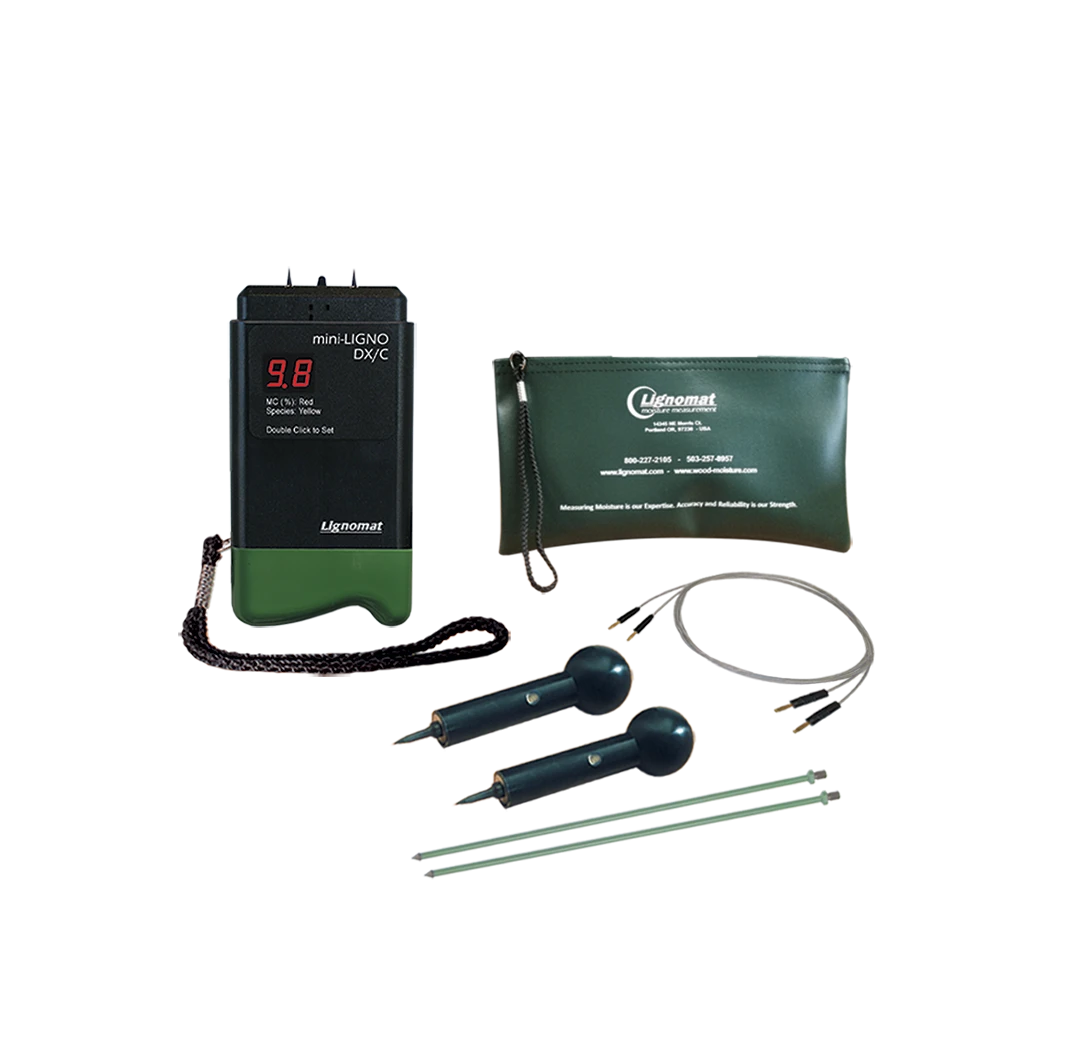

The package M6-P consists of:
The mini-Ligno MD/C offers Lignomat quality at its best price. The measuring range of 6%-25% is often wide enough to cover applications from woodworking to home construction and home restoration. Two correction settings are built-in for measuring hardwoods, softwoods and panel products.
For lumber: The integral pins at the mini-Ligno measure 7/16” deep. When measuring thicker lumber, you can make a fresh cut and measure the end grain to reach the core. If it is not feasible to cut the wood, you should add the electrode E12 for depth measurements.

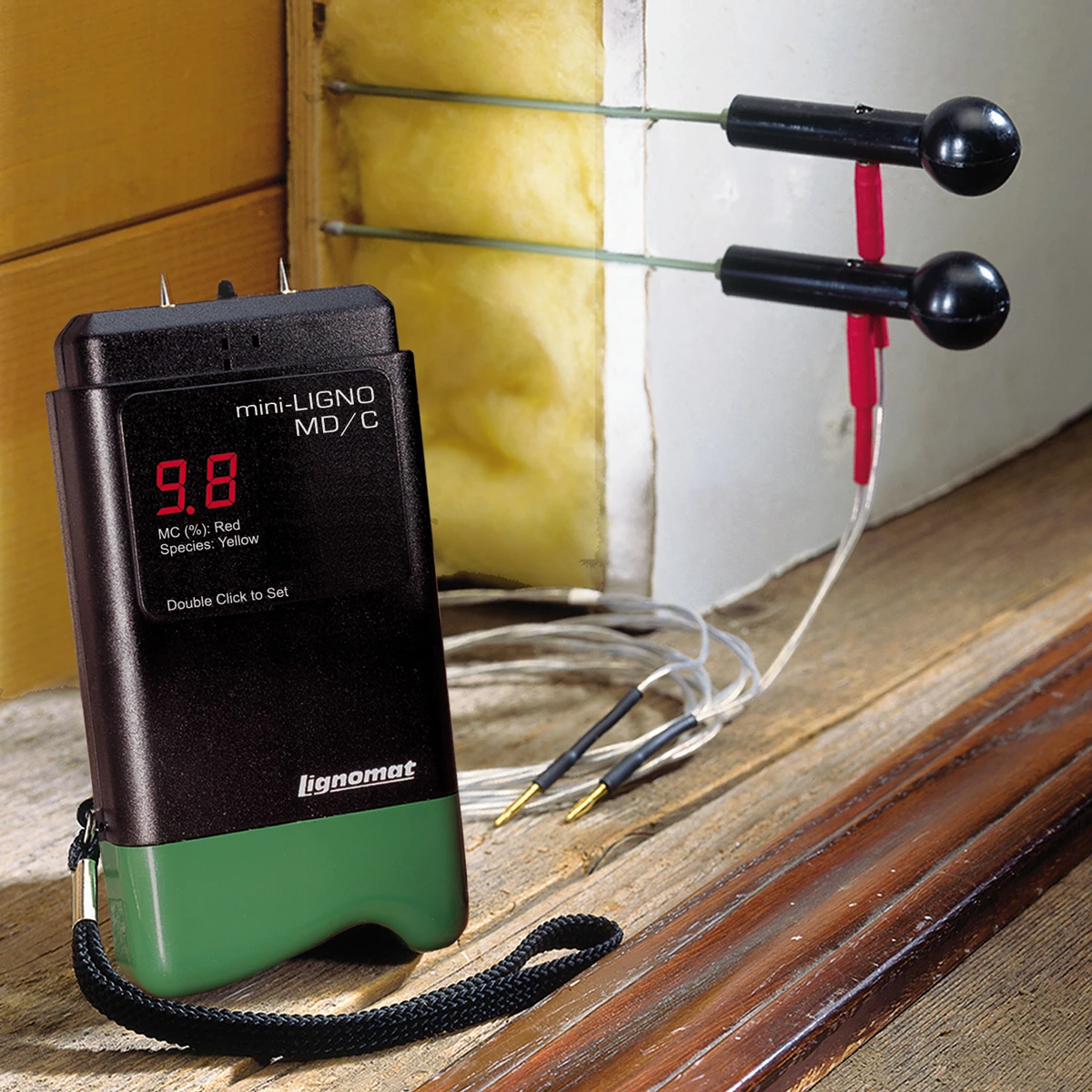

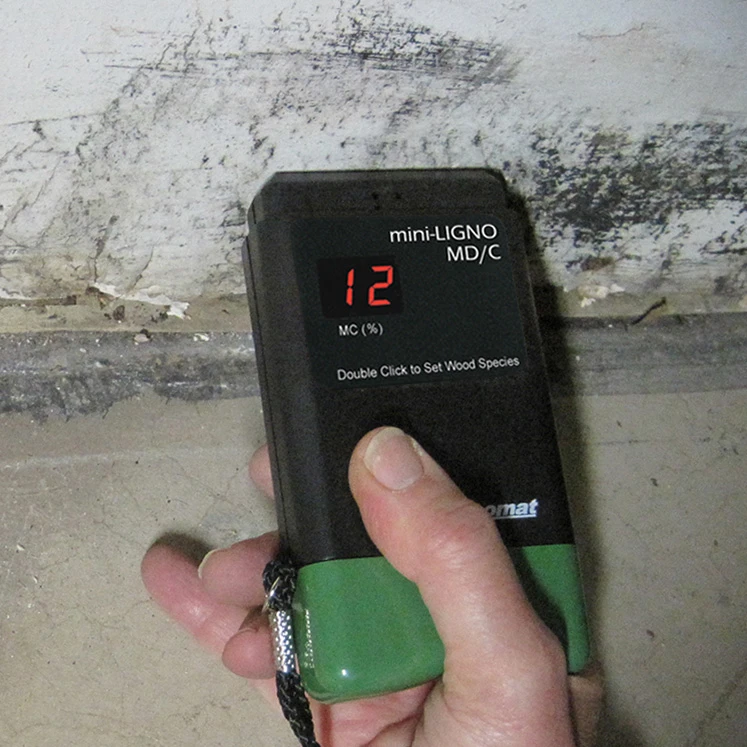

For building materials: The pins on the meter work well in soft materials such as drywall for a depth of 7/16″. If corners and tight places cannot be reached with the integral meter pins, the electrode E16 can be used for measurements up to 7″ deep. (Add-on EL pins).
Electrode E16 is used mainly to measure hard building materials, such as concrete slabs, brick walls, tile. The electrode can also be used when the distance or the angle between the 2 measuring pins need to be changed. Standard distance between pins is 1 1/4″.

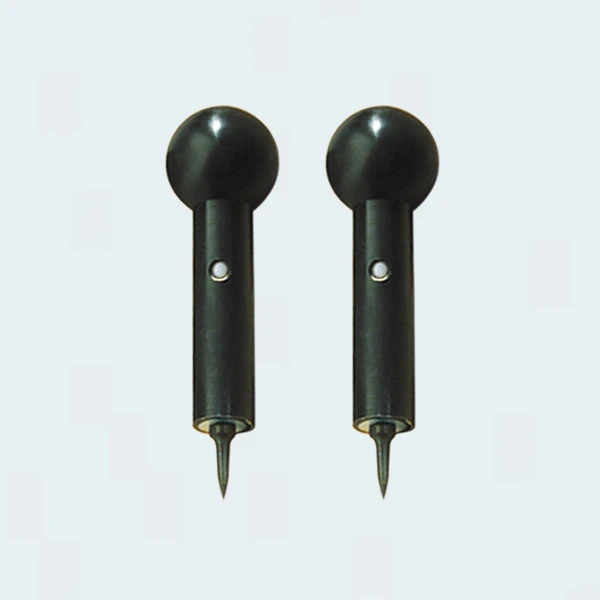

The electrode E16 consists of two separate posts. Each post is 2″ long with a ball head. The cable is connected through a hole in the post using a 4mm banana plug. The bottom of the posts have threads for the pins. An assortment of pins is available with lengths from 3/16″ to 7″ (Pins EG, EL and EC, EA, EV). Tapping on top of the ball head with a mallet or hammer will drive pins into the material. Pre-drilling holes maybe required for deeper measurements.

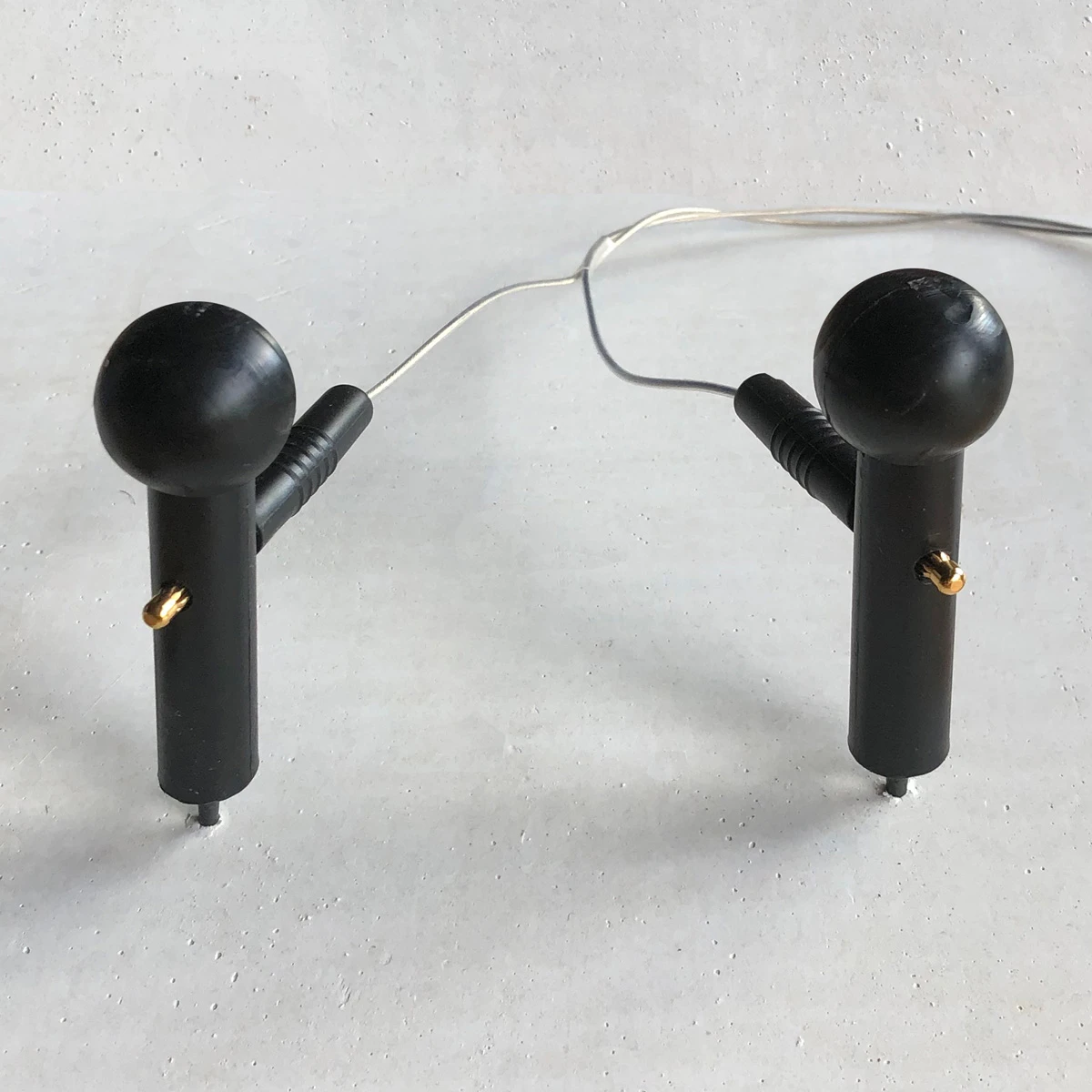

We recommend a distance of 4″ (10cm) between the pins for measuring cementitious materials including concrete. Cementitious materials have a very low electrical resistance compared to wood and tend to give high values, therefore changing the distance allows a wider moisture range.
Measurements obtained from concrete or cementitious materials are not true percent values. They only can be used as reference numbers or comparative readings. Comparative measurements become meaningful, when a dry (wet) sample piece of the material is available. Measurements can then be compared to the moisture value for dry (wet).
Using the mini-Ligno MD/C with the Electrode E16 gives immediate results when measuring concrete. The measurements can show areas of high and low moisture. If measurements are taken with the EL pins at different depth levels, the moisture profile of the slab becomes obvious. However, it cannot replace the in-situ probe test or the Calcium-Chloride test which allow to determine, if a wood floor can be installed. More info on in-situ concrete moisture testing.
Available pins for E16:
EG pins teflon coated, measuring depth 3/4″
EL pins teflon coated, measuring depth 7″
EC 5/8″, EA 7/16″, EV 3/16″, un-coated
EC pins are included in package M6-P.
For more information please contact Customer Service at 1-800-227-2105.
