Ligno-Scanner D

The Ligno-Scanner D is a single depth pinless moisture meter, measuring depth 3/4″. The moisture meter is equipped with all functions necessary to produce accurate wood moisture measurements corrected for different species, and is often used for woodworking, flooring and inspections. For restoration applications, the reference scale comes in handy to quickly detect high and low moisture levels in building materials.

The moisture meter has a wide measuring range and ¾” measuring depth, which is standard for pinless moisture meters. (Scanner S: depth ¼”, Scanner SD: dual-depth ¼” and ¾”).

Approved by woodworkers for quality and price,
see Fine Woodworking Magazine’s Review.

Choose Lignomat if you are looking for accuracy, reliability and consistency. A meter you can depend on.

Item Number: D


Product Description

Ligno-Scanner D – Pinless Moisture Meter

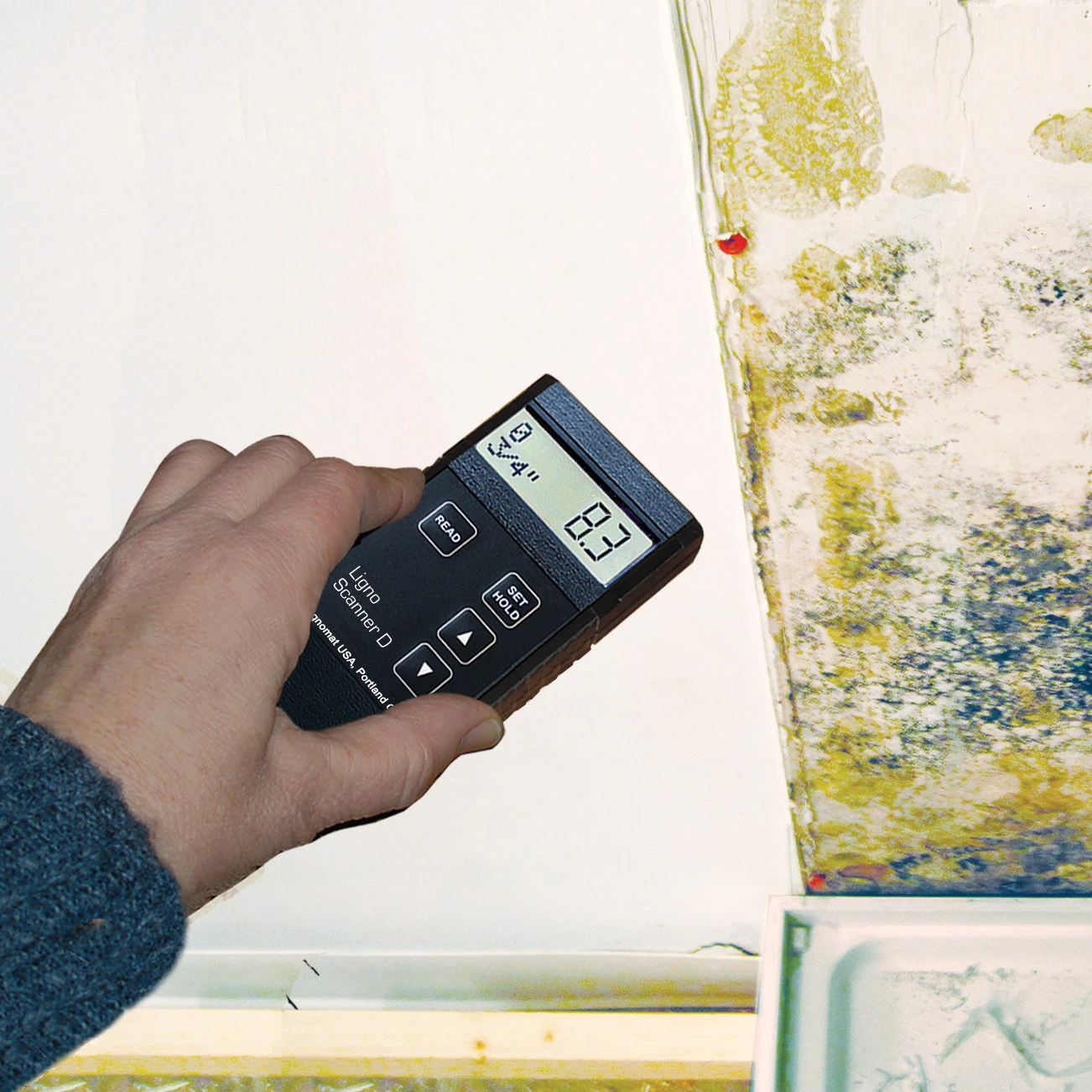

Lignomat’s unique measuring technology for the pinless moisture meter assures calibration accuracy, reliability and repeatability. Measuring depth 3/4″. Includes 71 wood group settings for different wood species. Wood species and corresponding settings are listed on a laminated species card included with each moisture meter. Wood species corrections can also be custom-programmed by entering the specific gravity between 0.3 and 1.0. A reference scale has been added to allow comparing different moisture levels in laminates and building materials, useful when searching for high moisture levels in walls, ceilings and floors after water damage.

The Ligno-Scanner D indicates true wood moisture percentage. Another pinless advantage: Pinless moisture meters from Lignomat measure lower moisture contents than pin moisture meters for hardwoods. A great advantage for the flooring industry in areas of low relative humidity and high desert climate zones.

Calibration Stability: The Ligno-Scanner D moisture meter has proven to be a trustworthy meter, which produces the same accurate moisture percentages today, tomorrow and in a year due to internal calibration checks. The calibration is checked before each measurement and if necessary, automatically adjusted. These “background checks” before measurements assure calibration consistency for Lignomat’s pinless moisture meters. Manual recalibration by the customer is not necessary. Lignomat offers an external calibration check block TS.

Operation: Pinless moisture meters from Lignomat are easy to use.  The large display indicates wood species settings, measuring depth and moisture percentages with a resolution of 0.1%. Push buttons are clearly marked. A HOLD function is available for measuring in places where the display cannot be seen or when taking photos of the display. Measuring depth is 3/4″. All Lignomat moisture meters are covered by a two-year warranty.

Approved by experts for quality and price, see review in Fine Woodworking Magazine.

When selecting the right Ligno-Scanner for your application consider measuring depth and materials you want to measure.

Measuring Depth:  The measuring depth is crucial for all pinless moisture meters. Most pinless moisture meters, just like the Ligno-Scanner D are calibrated for measuring 3/4″ deep, which allows measuring products between 3/4″ and 1.5″ thick (if both sides are accessible for measurements).

If thinner products are measured, the indicated value could be too low or too high. For products thinner than 3/4″, which are laying on a solid surface (concrete, sub floor, work table), measurements could be too high, because the solid surface is included in the measurements. If thinner products are measured with an air space underneath, measurements will be too low, because not enough material is underneath the measuring plates.

Many materials other than wood products can be checked to determine different moisture levels. Higher values indicate more moisture. When measuring wood, the Ligno-Scanner D gives accurate moisture readings in percent corrected for different wood species.

Choices:  Click to check your options:

Calibrated for wood
Ligno-Scanner D     single depth 3/4″
Ligno-Scanner S     single depth 1/4″
Ligno-Scanner SD  dual-depth 1/4″ and 3/4″

Calibrated for wood, bamboo, drywall with 3 ref scales for concrete, laminates, building materials
Ligno-Scanner SDM   dual-depth 1/4″ and 3/4″
Ligno-DuoTec BW       dual-depth 1/4″ and 3/4″  +RH
Ligno-VersaTec           dual-depth 1/4″ and 3/4″  +RH  +Pin

For more information please contact Customer Service at 1-800-227-2105.

Lignomat USA Ltd, 14345 NE Morris Crt., Portland OR 97230, USA,


Included Ligno-Scanner D, a pouch with belt loop, one 9 V battery, manual and laminated wood species card
5-60% dependent upon species settings*
Lower than 5% for hardwoods, higher than 5% for softwoods
Display 0.1% resolution for the entire range.
71 wood species settings, or specific gravity of the wood, between 0.3 and 1.0 (setting 30-100)
Measuring Depth 3/4″ deep
Reference Scale 0-99 for non-wood building materials
Stable calibration not affected by ambient temperature. Built-in calibration check.
Calibration Check External calibration check block #TS is available to verify the calibration and functions of the meter.
Size Pocket-size 2″ x 5.5″ x 0.5″, measuring pad 1 5/8″ x 2 5/8″
Weight 8 ounces (200 g), made out of high-impact plastic
Warranty All moisture meters have a 2 year warranty. battery excluded.
