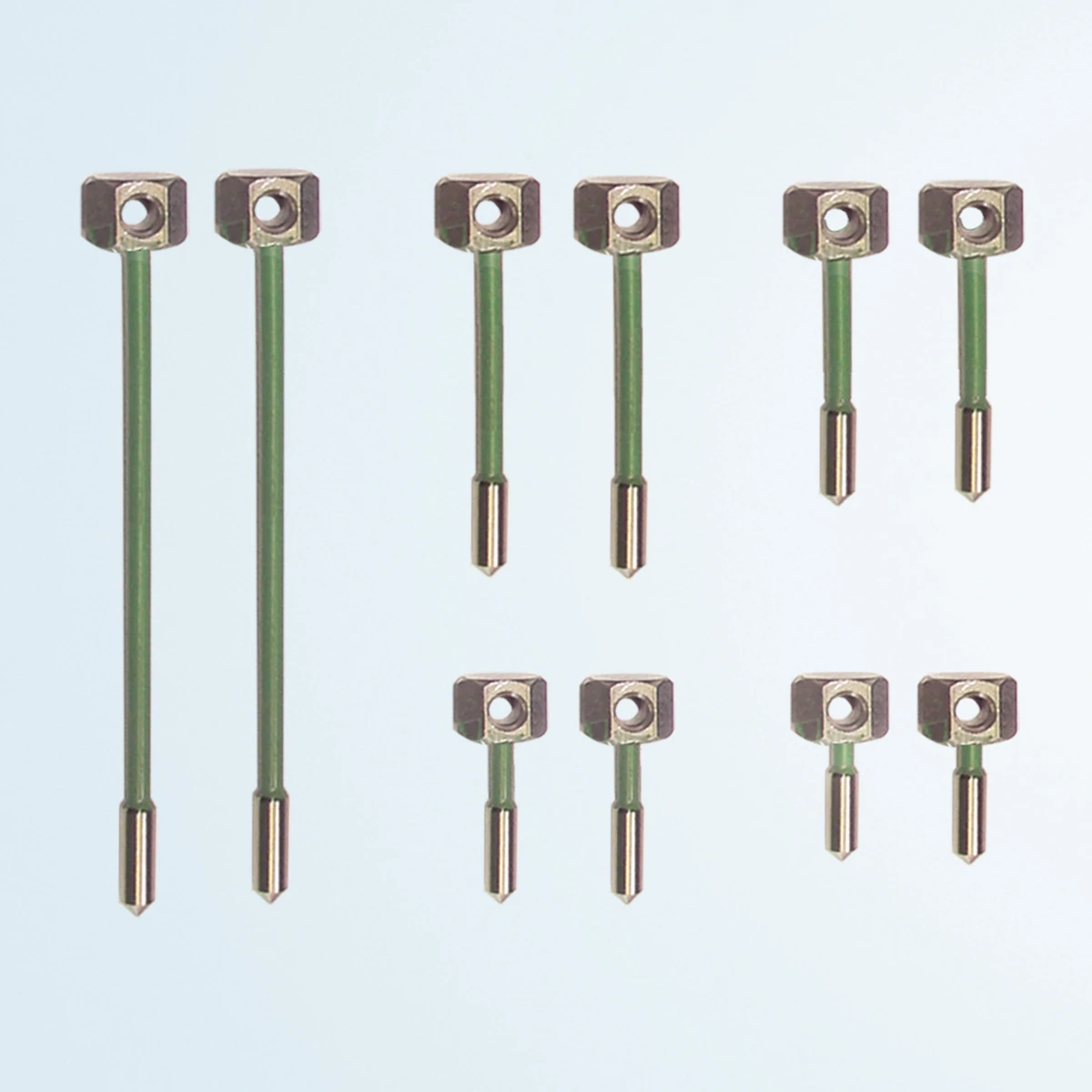

• PKA-PKE probes are used in lumber dry kilns (1/2″ to 2 3/4″).

    For lumber and other solid materials.

  • PKB teflon-coated wood probes measure only at the tip.

    Cable connection is secured with banana plug through hole in probe head.

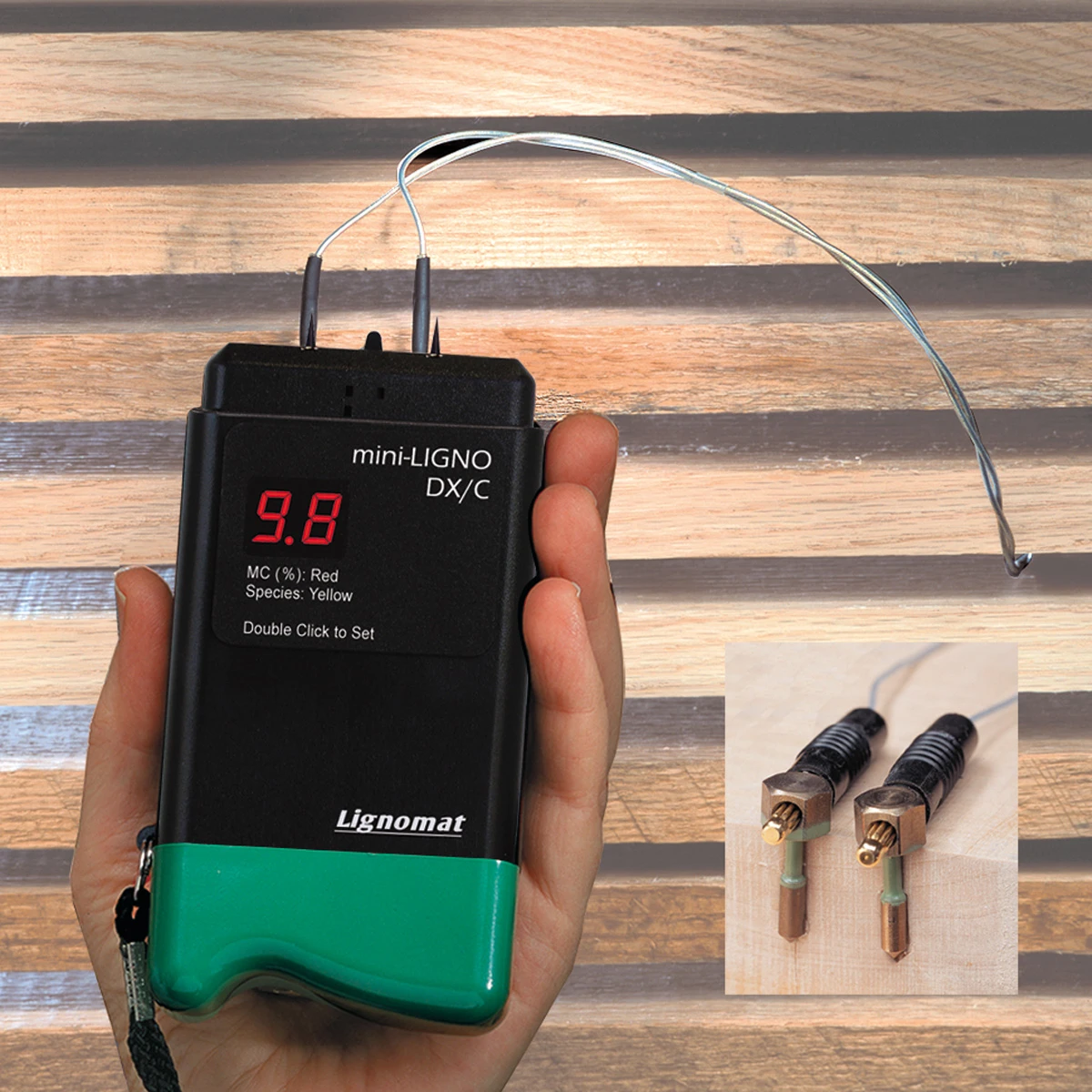

  • Probe cable connects directly to:

    mini-Lignos MD/C, S/DC, DX/C
    (Adapter H is needed for Ligno K, VersaTec)

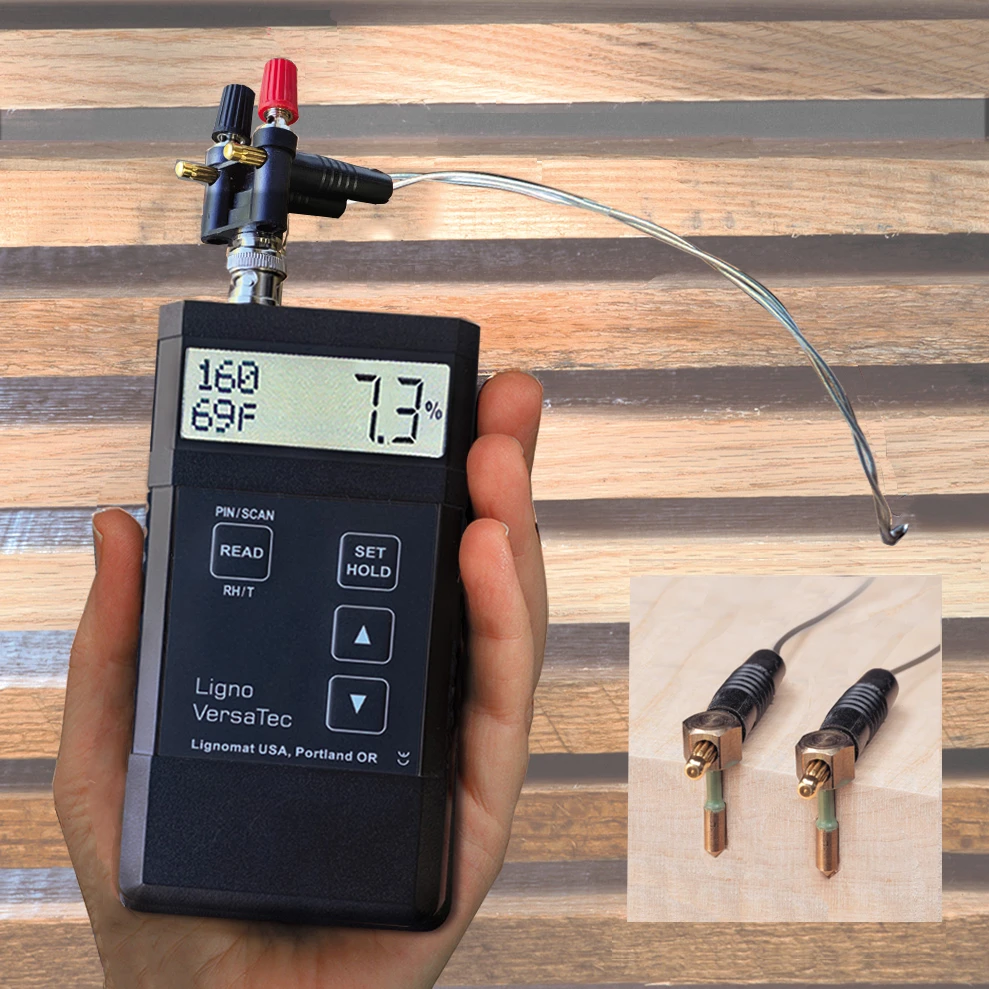

  • Probe cable connects directly to:

    Ligno K, VersaTec via Adapter H
    (Adapter is not needed for mini-Lignos)

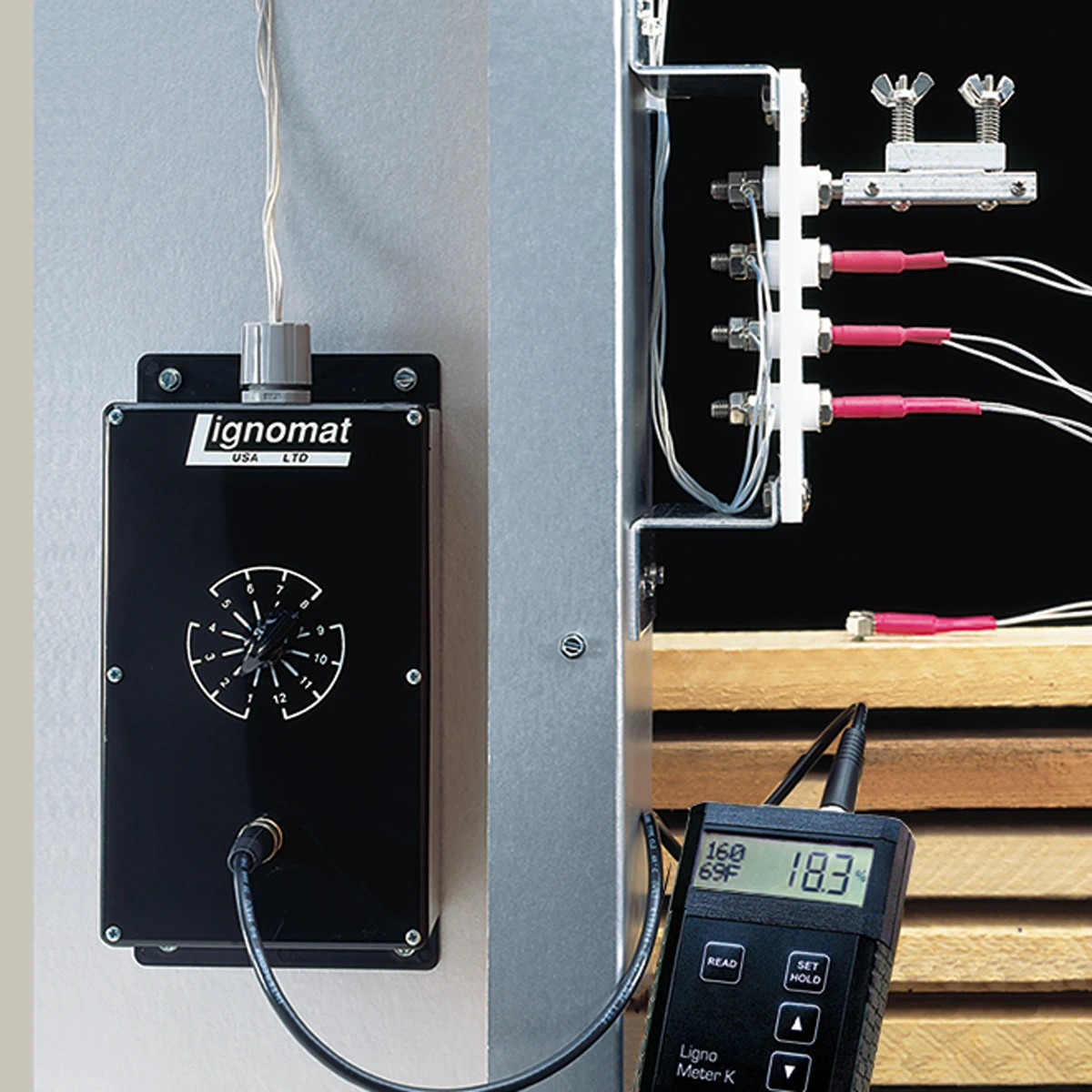

  • PK wood probes are connected with PK-H cables to station plate at kiln wall.

    Ligno K or Ligno-VersaTecare measure outside at switch box.

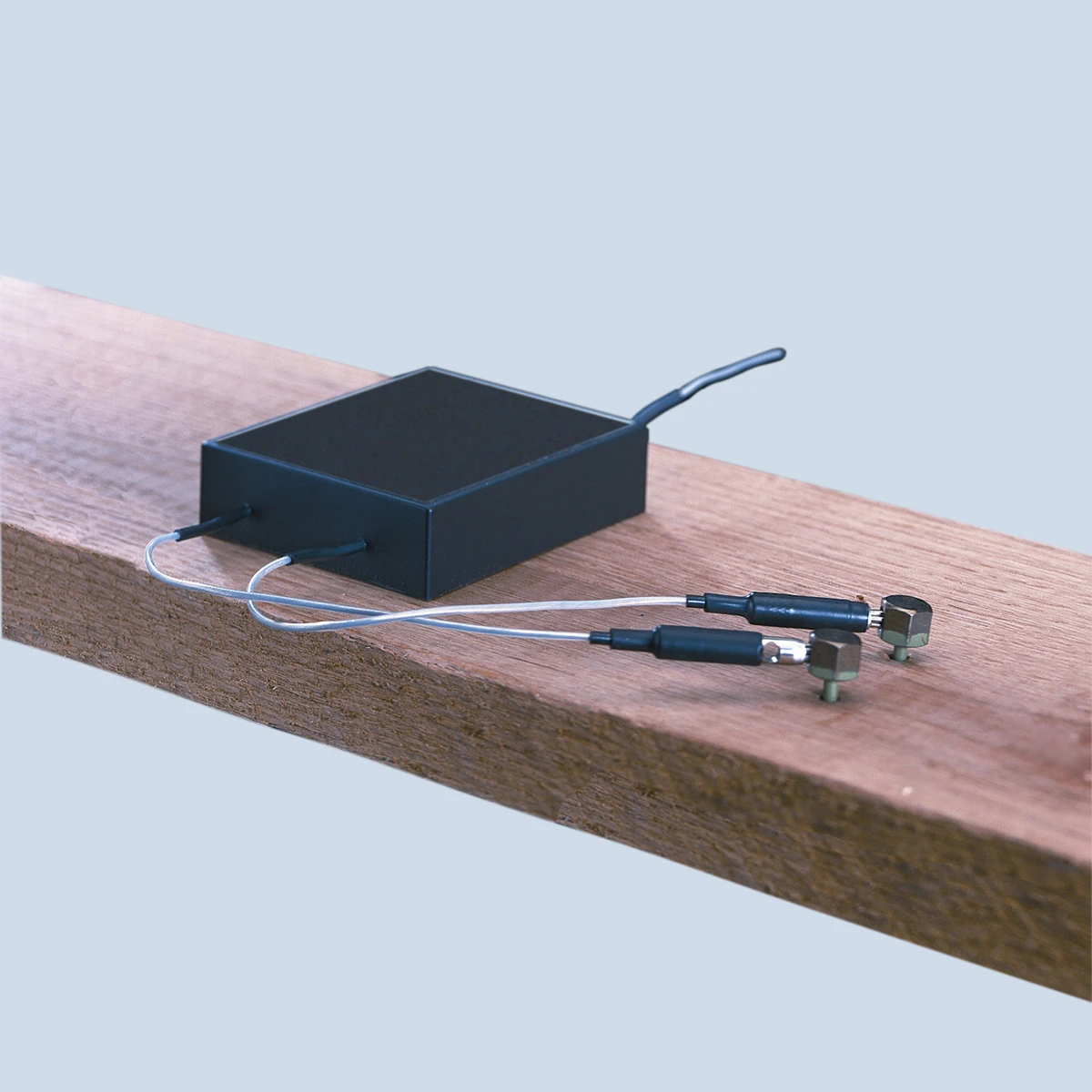

  • Wireless transmitter connects to PK probes
    sends data to receiver to PC or control system.

PK Probes

PKA-PKE probes measure/monitor moisture in lumber. Used in dry kilns from small solar to large industrial kilns, pre-dryers, air drying stacks or storage areas.

Probes have teflon-coated shanks, they measure only at the tip. To chose the appropriate measuring depth, consider that at least 1/3 of the lumber thickness has to be penetrated to measure the core moisture.

PKA: measuring depth 1/2″  (1.2cm)    4/4 lumber
PKB: measuring depth 3/4″ (1.9cm)    6/4 lumber
PKC: measuring depth 1″     (2.5cm)    8/4 lumber
PKD: measuring depth 1 ½” (3.8cm) 12/4 lumber
PKE: measuring depth 2 ¾” (7cm)

Prices below are for 1 pair of pins (2 pieces).

Item Number: PKA-PKE

Starting at $10.25

Add-ons

Works With

Related Products

Product Description

The PK probe and cable systems measure/monitor wood moisture in the middle of a stack, in the middle of a kiln, or at a place that would otherwise be unreachable. The probes have a hole in the head for pushing a 4 mm banana plug through. This is a fail-proof connection. The teflon-coated shanks insure that the moisture is measured at the core and measurements are not affected by surface moisture. Probes are inserted into pre-drilled holes and can be removed with the Pulling tool.

All PK probes are made out of stainless steel to withstand the harsh conditions in a kiln. They can be used for many drying cycles.

PK probes can be used in many other materials than wood such as concrete walls, brick, tile, roofing materials, they monitor changes in moisture content at the depth where the tips of the probes are placed. The measuring cable can be connected to handheld moisture meters, angle connector and switchbox, MC Tracker data logger or wireless transmitters.

PKA: measuring depth 1/2″ (1.2cm) 4/4 lumber
PKB: measuring depth 3/4″ (1.9cm) 6/4 lumber
PKC: measuring depth 1″ (2.5cm) 8/4 lumber
PKD: measuring depth 1 1/2″ (3.8cm) 12/4 lumber
PKE: measuring depth 2 3/4″ (7cm)

PK-H cable connects PK wood probes using adapter H to:
— Ligno-VersaTec
— Lignometer K

PK-H cables are also used to connect PK wood probes inside a kiln to a
— station plate
— angle connector
mounted at the wall of the kiln.

PK-mini cable connects PK wood probes to:

— mini-Ligno DX/C
— mini-Ligno S/DC
— mini-Ligno MD/C
— MC Tracker

For more information please contact Customer Service at 1-800-227-2105.
