• Less degrade, more uniformity and energy savings with latest technology for Lignomat’s control systems.

  • Multiple dry kilns and predryers are controlled from a central location accessible also remotely.

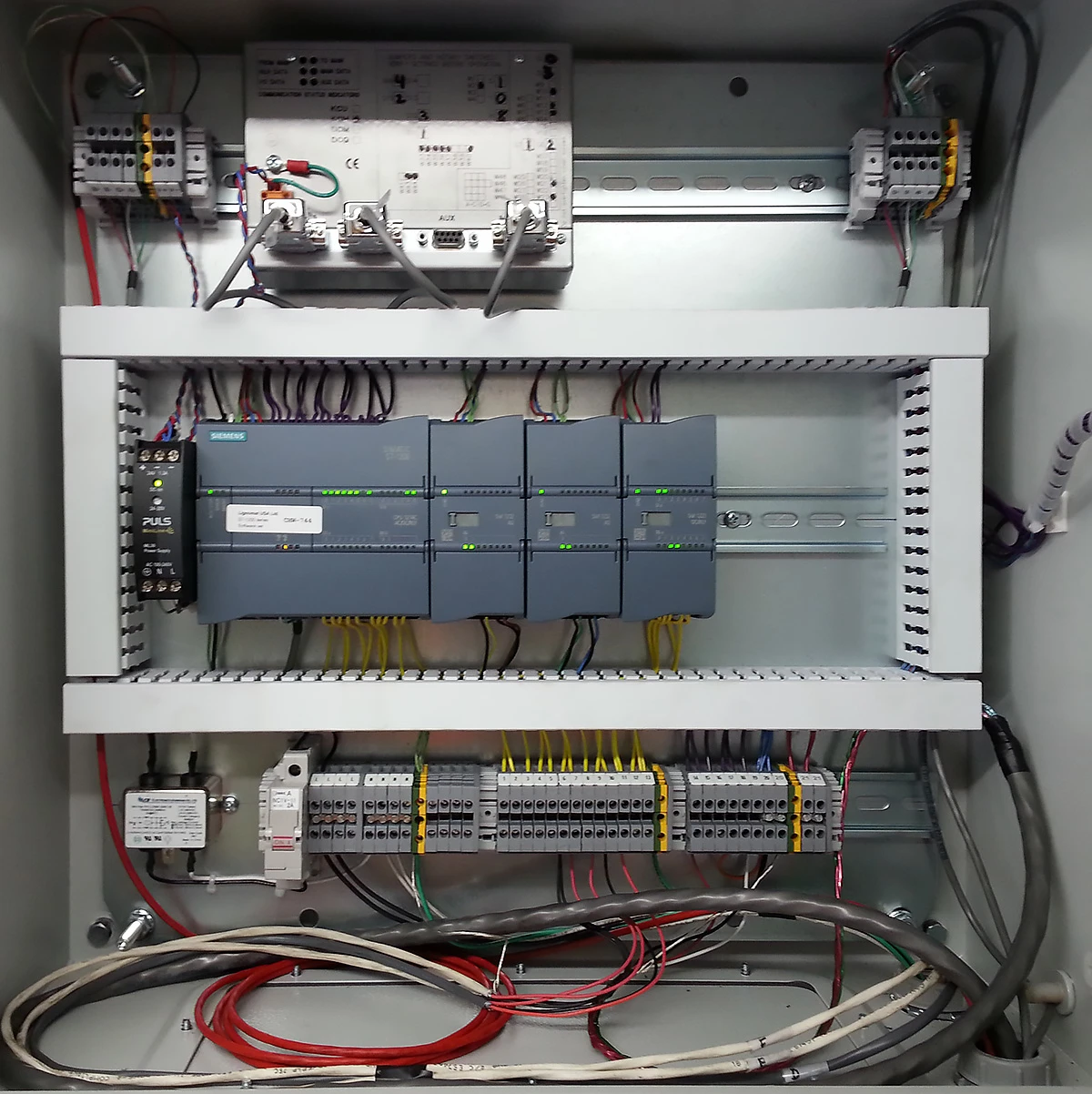

  • Operation made easy for a single kiln with expertly designed software and hardware.

  • The basic for every control system is an exact measuring system. From Lignomat only:
    EMC wireless measurement.

  • You have the choice for drybulb-wetbulb measurements with 2T wireless receiver.

  • You also have the choice to control your klln with the wireless wood probe measurements.

  • Stand-alone in-kiln monitor can be used for any dry kiln.

Lumber Dry Kiln Controls and Monitors

Lignomat has manufactured monitors and control systems for lumber dry kilns for over 40 years. For all sizes of lumber drying operations:

  • Steam and hot water kilns
  • Dehumidification and solar kilns
  • Vacuum kilns
  • Direct fired kilns
  • Package or track loaded kilns
  • Single zone and multi zone
  • Pre-dryers
    .
  • Heat treatment
  • Steam chambers
  • Conditioning rooms
  • Stand-alone wireless kiln monitors

Years of experience and customer inspired features help you to produce high quality lumber with more even moisture distribution, shorter drying times and reduced energy consumption. Another plus are ease of operation and latest software features, which allow remote access, remote control, text/email alerts available on your smartphone, tablet or lab top. Call 800-227-2105 for more info.

→ more info on kiln controls
→ more information on wireless monitors

Related Products

Product Description

Controlling and Monitoring Lumber Drying

The most complete line of kiln control systems and monitoring systems for small and large kilns and predryers.

We have developed software and hardware options to be able to put a control system together that will fit your needs.

Lignomat USA Ltd. is the first company to offer kiln control systems with the following features:

  • Wireless Communication of MC and EMC measurement inside a kiln
  • Completely digital data transfer of Wood Moisture Content, Temperature and EMC from Measuring Points inside the kiln to the Computer System
  • Internet Compatibility between Client and Server Software Modules

These technological advancements are only available from Lignomat. Lignomat’s Kiln control systems offer more accurate readings of MC and EMC especially in the low range. The increased accuracy is enhanced by the completely digital data transfer between data acquisition modules, process control modules and operator interface. Interferrence due to electrical noise are virtually eliminated. Operating stability is increased.

Wireless Systems requires only one four-conductor cable to run from the kiln directly to the kiln setpoint controller (KCM/KCU) typically installed in the kiln control room and further to the user interface on Host PC. Installation and maintenance are very easy. The new technology offers a maximum in cost efficiency, operational stability and ease of operation. Measuring the temperature in the core of the wood for heat treating applications has also become available.

Wireless measuring systems offer new possibilities for predrier controls. All sensors for wood moisture, EMC and temperature are wireless and communicate with several receivers located inside the predrier. Long sensor cables inside the predrier are eliminated, making installation, operation and maintenance a lot easier. The system offers complete freedom in placement of sensors without having to install or move any cables – a great advantage.

The same advantages apply to Lignomat’s wireless monitor using wireless probes. Long cable runs are eliminated. Transmitters are placed in bundles and communicate with several receivers. They, in turn, communicate with the Host PC, for data logging and display.

Fully Automatic Full Feature Dry-Kiln Controller – Lignomat LMS-16G

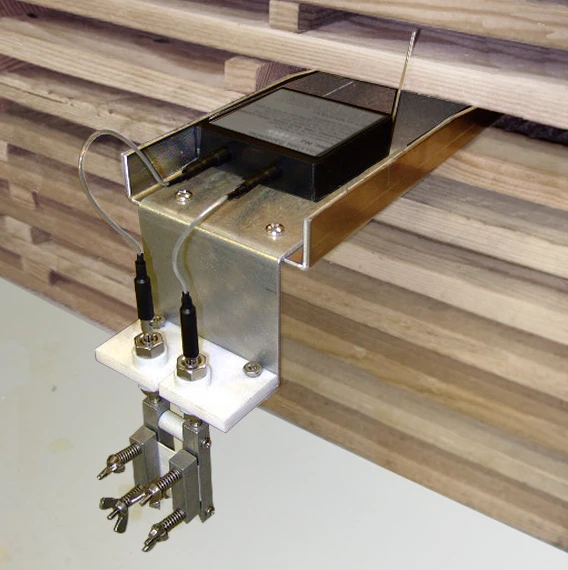

  1. Wireless In-kiln Moisture Probes – Require very minimum in-kiln wiring
  2. Multi-zone Temperature Control Regulation
  3. Up to 16 Wood Moisture Probes (MC) per kiln – Six probes is standard
  4. Steam Pressure & Energy Optimization
  5. EMC or Wet-bulb sensors
  6. Heat Treating
  7. Sample Boards Scale – In-kiln or External option
  8. High Temperature kiln operations available as wirebound setup

Fully Automatic Dry-Kiln Controller – Lignomat LMS-XG

  1. Lower overall cost with the same per-kiln hardware as LMS-16G
  2. No master controller MP16 required – now integrated into PC software
  3. Single Heat-zone Temperature regulation only
  4. Up to 8 Wood Moisture Probes per kiln
  5. Schedule Mode or simple Set-point Mode operation

For more information please contact Customer Service at 1-800-227-2105.

Lignomat USA Ltd, 14345 NE Morris Crt., Portland OR 97230, USA,
Email: sales@Lignomat.com, www.Lignomat.com
