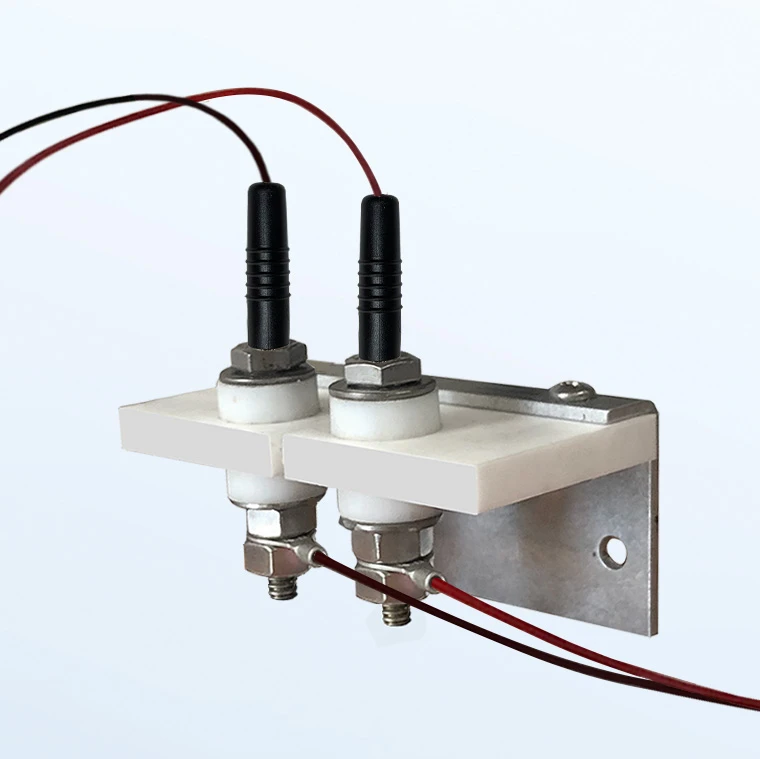

• Angle connector is a junction box for wood probe cable and in-kiln wiring,

    or a mounting plate for an EMC holder.

  • Top: 4mm jack for PK-H cable and EMC holder.

    Bottom: lugs for in-kiln cable connection.

  • Angle connectors allow to connect and disconnect PK-H cables while loading and unloading dry kilns.

  • In-kiln monitor uses PK probes for all thicknesses of lumber from a measuring depth of
    1/2″ to 2 3/4″.

  • Angle connector with mounting bracket serves as plug-in for EMC holder.

  • EMC holders with cellulose wafers have replaced wet-bulb thermometers in Lignomat’s kiln control systems for over 50 years.

Angle Connector

Angle connectors are used inside dry kilns to connect a PK-H cable coming from wood probes with a cable going to a switchbox (kiln monitor) or kiln control system. The angle connectors are mounted at the kiln wall and serve as junction boxes for connecting and disconnecting cables when loading and unloading a dry kiln, for easier handling and shorter cables.

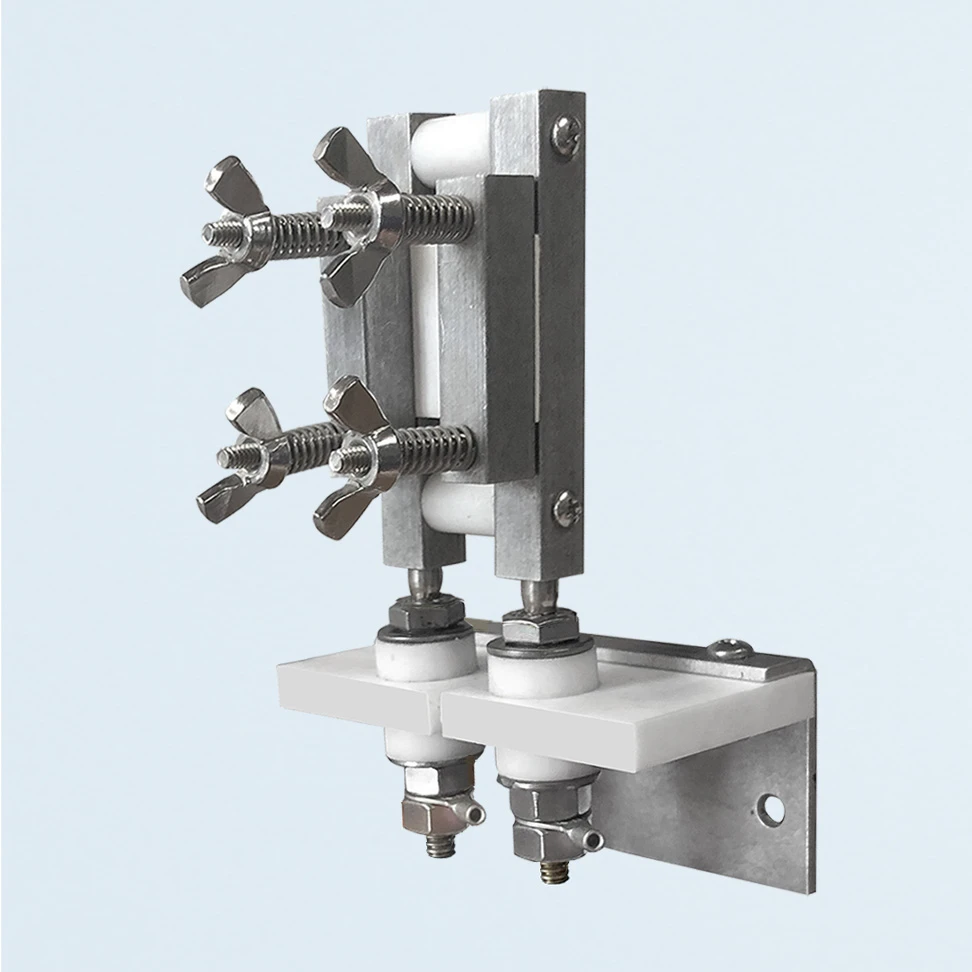

Angle connectors are also used as mounting stations for EMC holders. On one side the EMC holder is plugged into the angle connector, on the other side the cable is connected.

Measurements from wood probes and EMC wafers can be obtained with
— Ligno-VersaTec
— Lignometer K
— Wireless monitors
— Kiln control systems

Item Number: K-AC

$46.00

Works With

Related Products

Product Description

Angle connectors are often used in medium or large kilns to manage cable runs inside the kiln. The angle connector comes with a bracket for mounting to the kiln wall and a teflon plate with 4mm jacks on one side to connect wood probe cables and cable lugs on the other side to connect in-kiln cables, which are permanently installed at the kiln wall. Having a cable junction box installed on the kiln wall, allows connecting and disconnecting the PK wood probe cables while loading and unloading the kiln. Otherwise long cable runs make handling the cables cumbersome. All in-kiln wiring can be avoided, when using the wireless transmitter / receiver system from Lignomat.

An angle connector is also necessary to mount the EMC holder onto the kiln wall and to make the connection to the in-kiln wiring. The two 4mm banana plugs from the EMC holder fit into the angle connector from one side. On the other side, cables are connected going to the switchbox of the in-kiln monitor or to the measuring box for the kiln control system.

If the EMC holder is used outside a kiln in an air-drying facility, warehouse or storage area, the angle connector is always needed to mount an EMC holder.

In addition, Lignomat offers a mobile station to mount the EMC holder. The station is placed between two layers of lumber in the kiln. If used with the wireless transmitters, the mobile station is truely mobile and there are no cables hanging inside the kiln. With the wireless monitor measurements and drying history can be viewed at any time at the PC.

All in-kiln parts including the angle connector are made from aluminum, stainless steel and teflon to withstand the corrosive air and hot temperatures inside a drying chamber.

In-kiln equipment:

— PK wood probes
— PK-H cable
— angle connector
— teflon cable
— switch box

— EMC wafer
— EMC holder
— angle connector
— EMC mobile mount: EMC holder with plate to slide into stacked lumber
— teflon cable
— switch box

Measurements:
— Ligno-VersaTec
— Lignometer K
— Wireless monitor
— Kiln control systems
