• DZ, DA and DB pins can only be used in the Electrode E12.

  • Used with Electrode E12.

  • Used to check lumber for even or uneven drying.

  • Electrode E12 is used to measure sub floor without removing floor planks.

Pins for Electrode E12

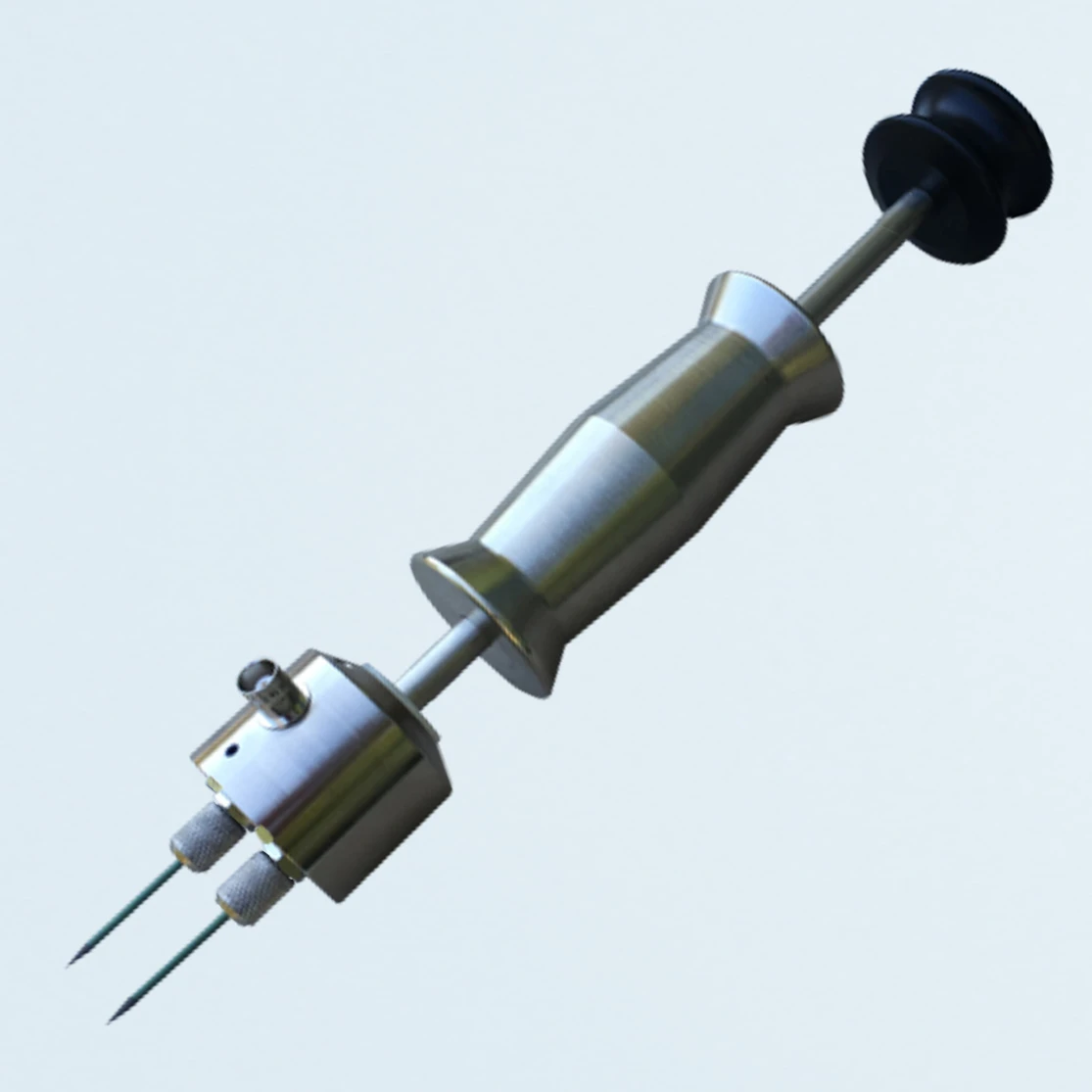

DZ, DA and DB pins are teflon-coated and give accurate measurements from the depth the pins have been driven to. As the pins are hammered deeper with the slide hammer electrode E12, consecutive measurements indicate if a moisture gradient exists.

The pins are only used in the Electrode E12. They measure moisture distribution up to 2″ deep. Pins can be used for wood and soft building materials.

DZ pins: measuring depth 1″ (2.5cm) total length 1 5/8″ (4cm)
DA pins: measuring depth 1.5″ (3.8cm) total length 2 1/8″ (5.4cm)
DB pins: measuring depth 2″ (5cm) total length 2 5/8″ (6.7cm)

Prices below are for 1 pair of pins (2 pieces).

Item Number: DZ, DA, DB

Starting at $3.75

Add-ons

Works With

Related Products

Product Description

All pins DZ, DA, DB for the Electrode E12 have insulated shanks and therefore measure only at the tip. As the pins are hammered towards the core, multiple readings show the moisture distribution within the material. Pinless meters cannot achieve the same measuring accuracy at a defined depth.

Pins are made out of hardened chrome-vanadium steel for easy penetration, maximum strength and low breakage.

Select length for required measuring depth. At least 1/3rd of the board thickness should be penetrated to reach the core section of the wood.

DZ pins: measuring depth 1″ (2.5cm) total length 1 5/8″ (4cm)
DA pins: measuring depth 1.5″ (3.8cm) total length 2 1/8″ (5.4cm)
DB pins: measuring depth 2″ (5cm) total length 2 5/8″ (6.7cm)

DZ-DA pins can only be used with the Electrode E12.

Other electrodes available from Lignomat are:

Inspector Electrode:
Electrode E14-V with BNC cable to connect Ligno-VersaTec and Lignometer K
Electrode E14-m with mini-BNC cable to connect mini-Ligno MD/C, S/DC and DX/C

Specialty, Concrete Electrode:
Electrode E16 with E16-BNC cable to connect to Ligno-VersaTec and Lignometer K
Electrode E16 with mini-E16 cable to connect to mini-Ligno MD/C, S/DC and DX/C

For more information please contact Customer Service at 1-800-227-2105.
