mini-BNC Cable

The mini-BNC cable connects Electrode E12 to
–mini-Ligno DX/C
–mini-Ligno S/DC
–mini-Ligno MD/C

mini-BNC cable comes in a standard length of 3 ft (0.9m) or can be ordered as an option 6 ft (1.8m) long.

If a cable is needed to connect the Electrode E12 to the Ligno-VersaTec or Lignometer K, click here to order the BNC cable.

Item Number: m-BNC

Starting at $28.00

Product Description

Lignomat offers the mini-BNC cable to make the connection between electrode E12 and the mini-Lignos DX/C, S/DC and MD/C. Lignomat’s mini-BNC cables are selected for their high quality and their ability to accurately transfer measured values from the electrode head to the meter. The mini-BNC cable is built with a flexible easy-to-work- with coaxial cable.

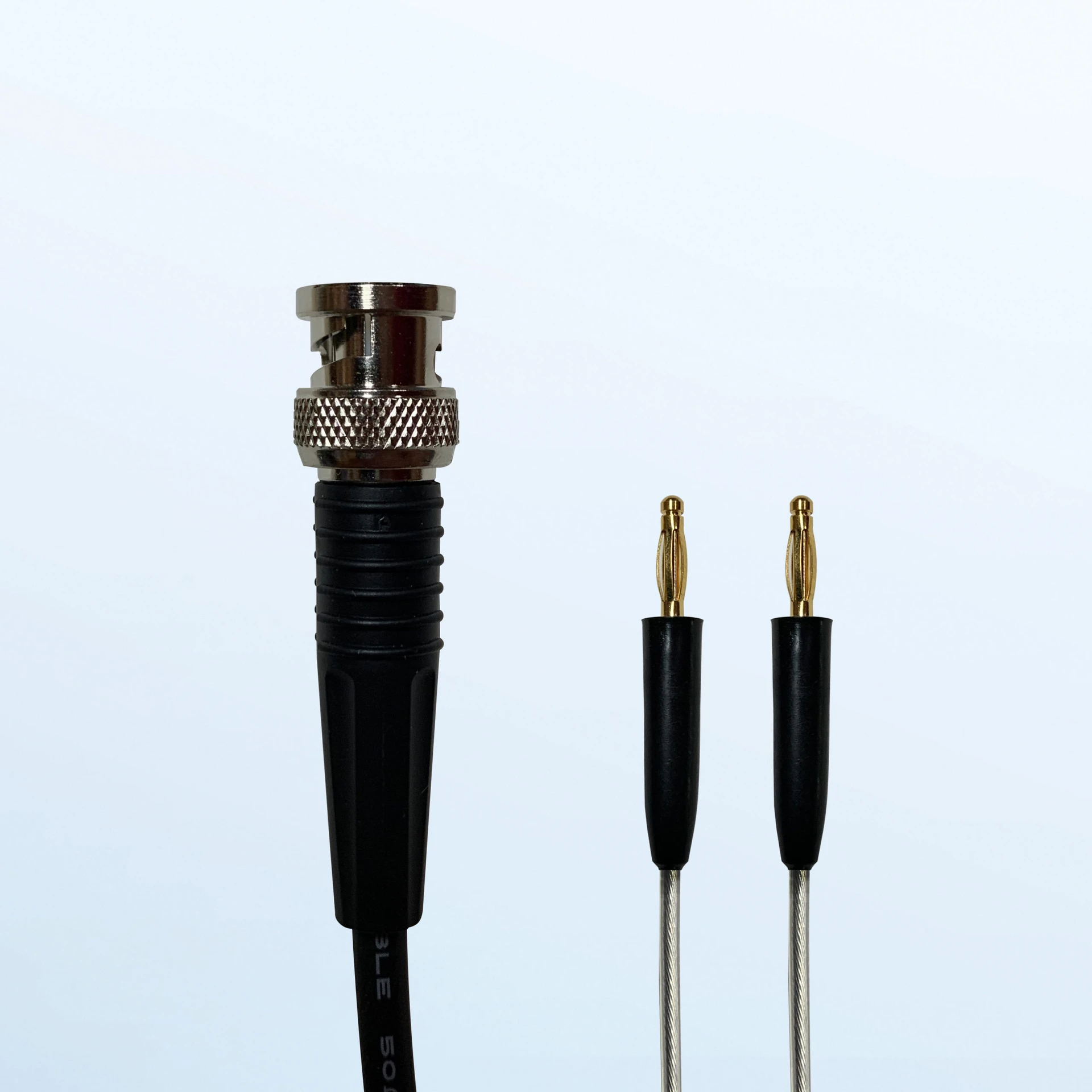

The male BNC cable connector fits the electrode E12. The 2mm banana plugs at the split end of the cable fit the inserts in the mini-Lignos DX/C, S/DC and MD/C.

mini-BNC cable comes in a standard length of 3 ft (0.9m) or optionally 6ft (1.8m) long.

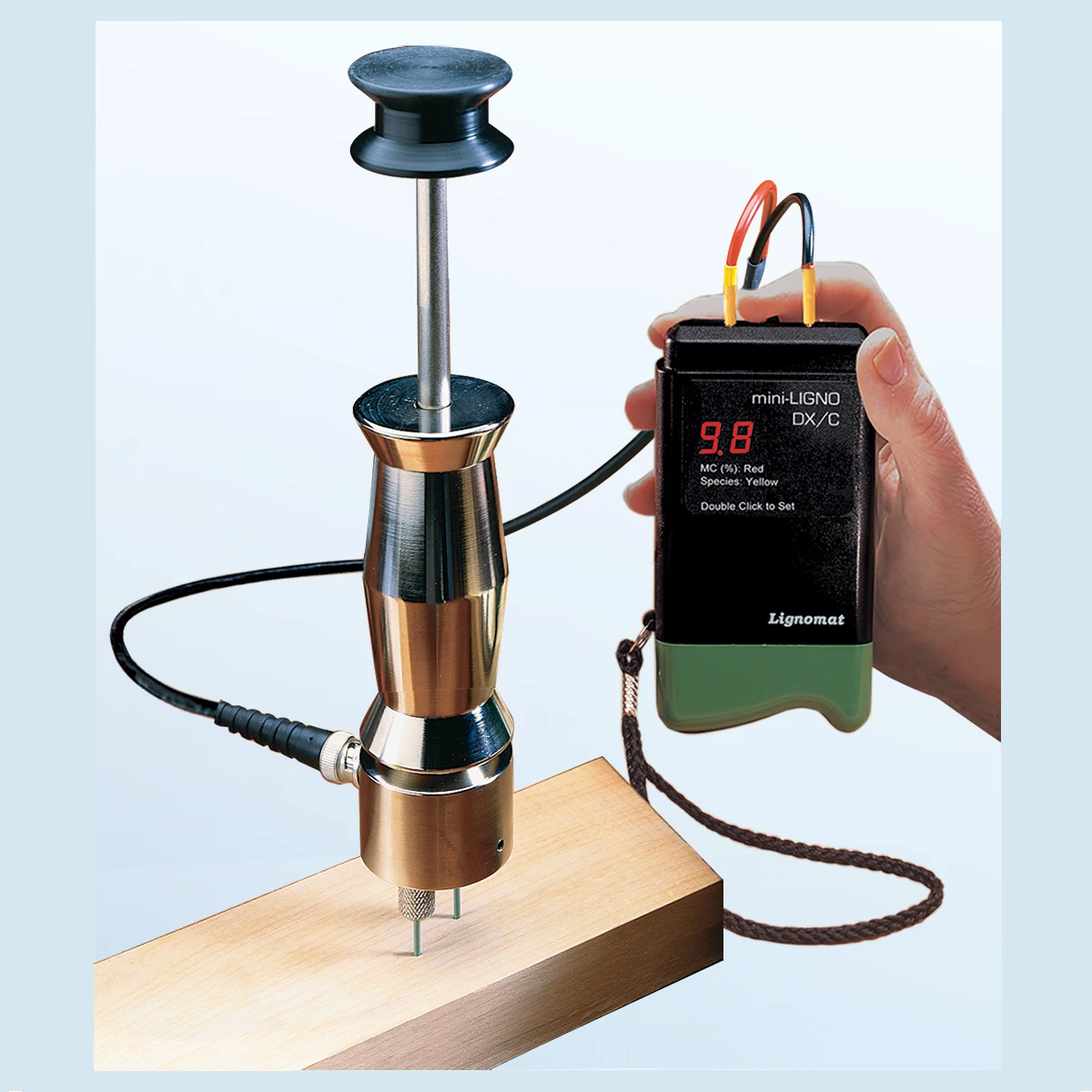

mini-BNC cable connects Electrode E12 to:
mini-Ligno DX/C
mini-Ligno S/DC
mini-Ligno MD/C

If a cable is needed to connect the Electrode E12 to the Ligno-VersaTec or Lignomaster K, click here to order the BNC cable.


If you want to check the performance of the cable, connect the cable to the meter but not the electrode and push READ. The lowest possible value should appear on the meter, which means the cable does not add a measurable value even in the low measuring range. To check continuity of the cable, put the split ends in your hand and close your fist over the plugs without the ends touching each other. Then, take a reading. The indicated value should be over 12%.


For more information please contact Customer Service at 1-800-227-2105.
