Packages D-11, D-33, D-55
The PK probe and cable system is designed to monitor places that would be otherwise unreachable. For example, the middle of a lumber charge in a hot dry kiln, studs in a crawl space or structural lumber in a roof. Lignomat D-11 package allows the user to measure and take in-kiln wood readings with one PK probe, cable and a mini-Ligno DX/C moisture meter.
The package D-11 consists of:
- mini-Ligno DX/C moisture meter
- 1 pair of PKB Probes
- 1 cable PK-mini 6 ft long (12ft for D-33 and D-55 Package)
- optional set of cables and probes 1, 3 or 5
mini-Ligno DX/C: The moisture meter of your choice, the mini-Ligno DX/C is the most advanced among the mini-Lignos. It comes with pins and a connector built-in for external electrodes or in-kiln cables. Features are the wide measuring range and 46 correction settings built-in for measuring domestic and tropical wood species, gypsum and different types of wall boards, bamboo and panel products.
PK probes and cables have been used to take in-kiln wood readings for over 50 years . PK probes are still used with Lignomat’s dry kiln control systems for small and large, industrial kilns. If multiple probes and cables are used, kiln performance can be checked by distributing the cables in top, bottom, sides and middle sections of the kiln. Cables are standard 6ft long, but can be custom-cut upon request up to 25 ft long.

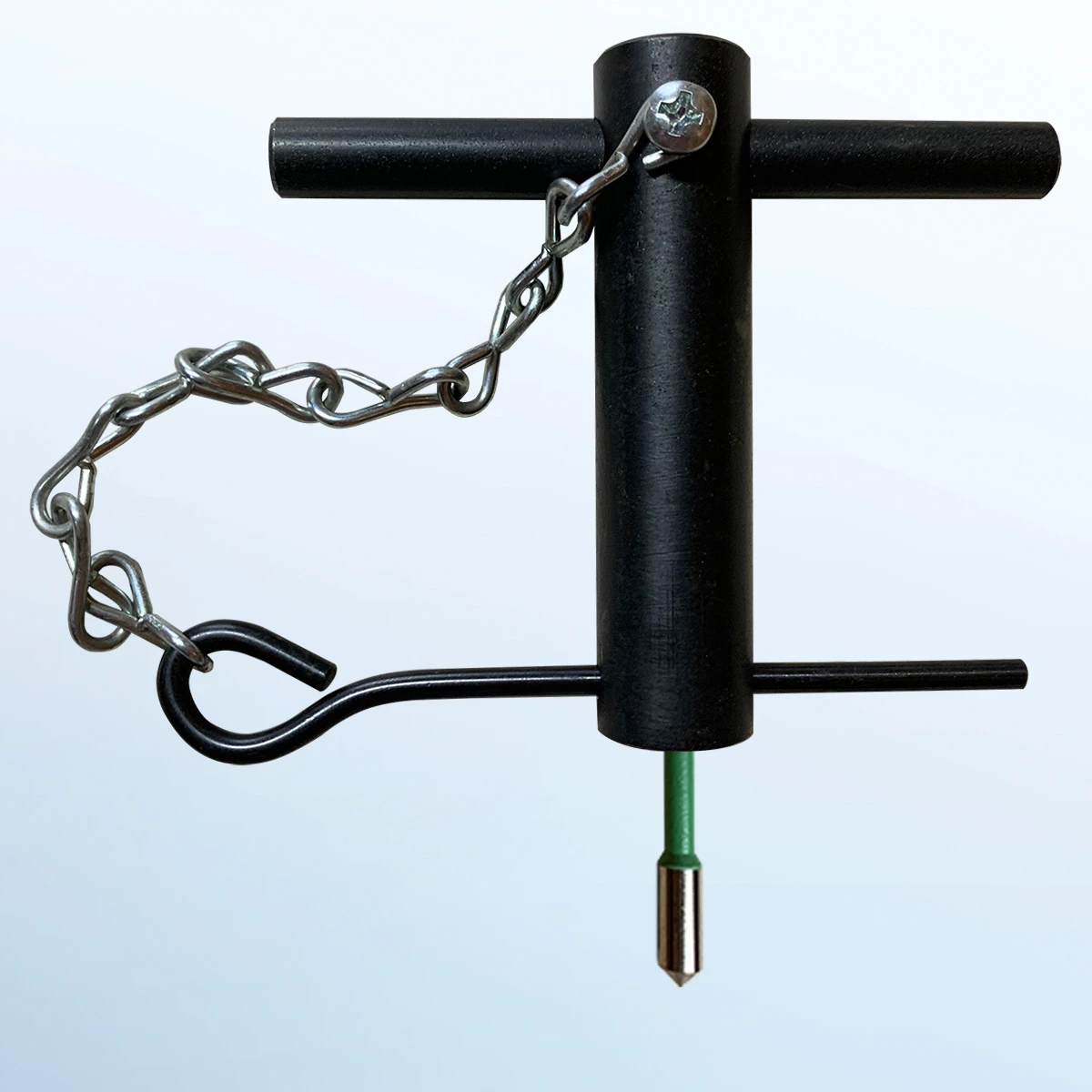

All probes have a hole in the head for pushing a 4 mm banana plug through. This is a fail-proof connection. The probes have teflon-coated shanks, which insure that moisture is measured where the tip of the PK probe is and measurements are not affected by surface moisture. Probes are inserted into pre-drilled holes and are set and removed correctly with the Pulling Tool.
All PK probes are made out of stainless steel to withstand the harsh conditions in a kiln. They can be re-used for many drying cycles. Using the pulling tool will help to set and remove probes without any damage.
PK probes can be used in many materials other than wood, such as concrete, brick, tile, roofing. They monitor changes in moisture content at the depth where the tips of the probes are placed. PKB probes are standard with D-11 Package.
PKA: measuring depth 1/2″ (1.2cm) 4/4 lumber
PKB: measuring depth 3/4″ (1.9cm) 6/4 lumber
PKC: measuring depth 1″ (2.5cm) 8/4 lumber
PKD: measuring depth 1 1/2″ (3.8cm) 12/4 lumber
PKE: measuring depth 2 3/4″ (7cm)
Measurements from PK probes can be obtained with handheld moisture meters and data loggers:
- Lignometer K or Ligno-VersaTec
- mini-Ligno MD/C, S/DC, DX/C
- MC Tracker data logger
- wireless transmitters
Cables: The PK-mini cables have 4mm plugs on one end to fit PK probes and 2mm plugs on the other end to fit the mini-Ligno DX/C. The PK-mini cable is made with a pair of teflon-insulated, twisted, shielded wires for reliable transfer of measurements and to be heat resistant.
The cables included in the D-11 package are 6ft long. For the packages D-33 and D-55 12ft cables are standard. Upon request we can supply longer cables, please call customer service at 800-227-2105 for a quote.

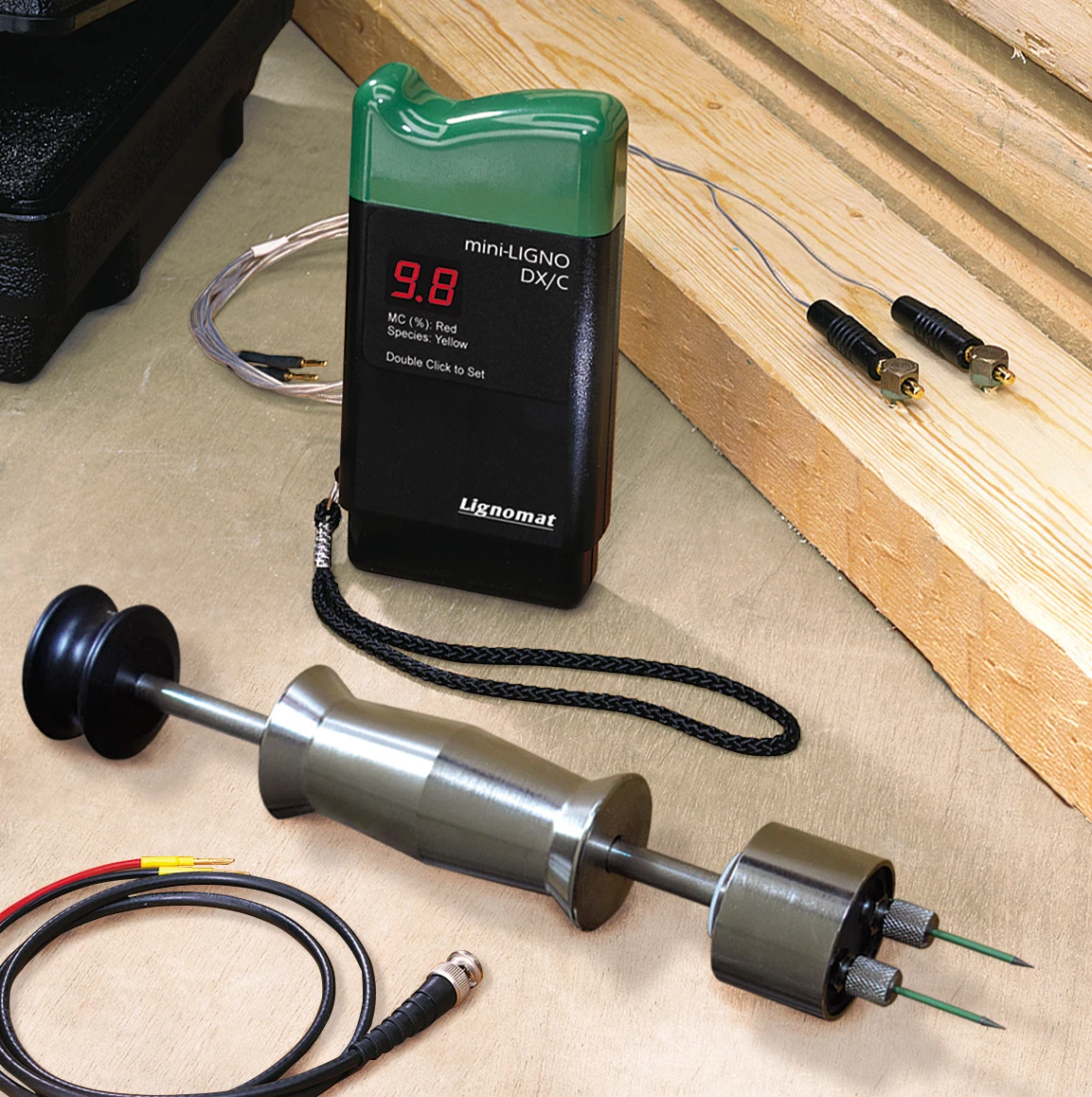

- Add depth-slide-hammer electrode E12 and mini-BNC cable to spot-check lumber anywhere at any time. Pins are available for core measurements up to 2″ deep.
- Add electrode E14-m for measuring wood, even extremely hard wood up to 1/2″ deep. Hammered into the wood with a hammer.
For more information please contact Customer Service at 1-800-227-2105.
