• Wood Probe Template makes pre-drilling for probes easy and consistent.

  • Wood Probe Template is placed over a slab of wood and has holes to guide where to drill for PK Probe installation.

  • Uniform PK probe placement leads to accurate and consistent readings.

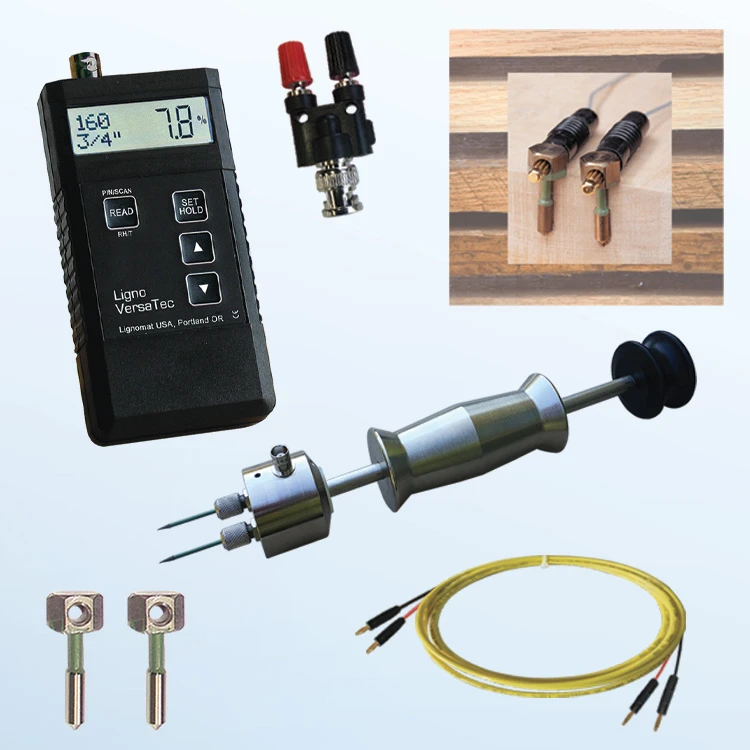

  • Add package V2-11M for the most PK system package that Lignomat offers.

Wood Probe Template

Wood Probe Template K-WPT is used as a template to pre-drill holes for PK wood probe placement. Having the same distance between the probes for all measurements, produces more accurate and comparable moisture values.

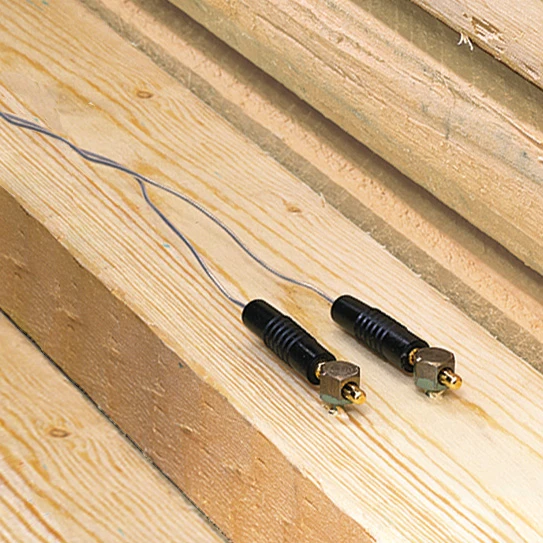

The template provides sets of holes for inserting the wood probes from the top of the board or from the side of the board. Once the holes are drilled at the right distance, the probes can be inserted with the pulling tool or pulling tool slide hammer.

Item Number: K-WPT

$25.00

Works With

Related Products

Product Description

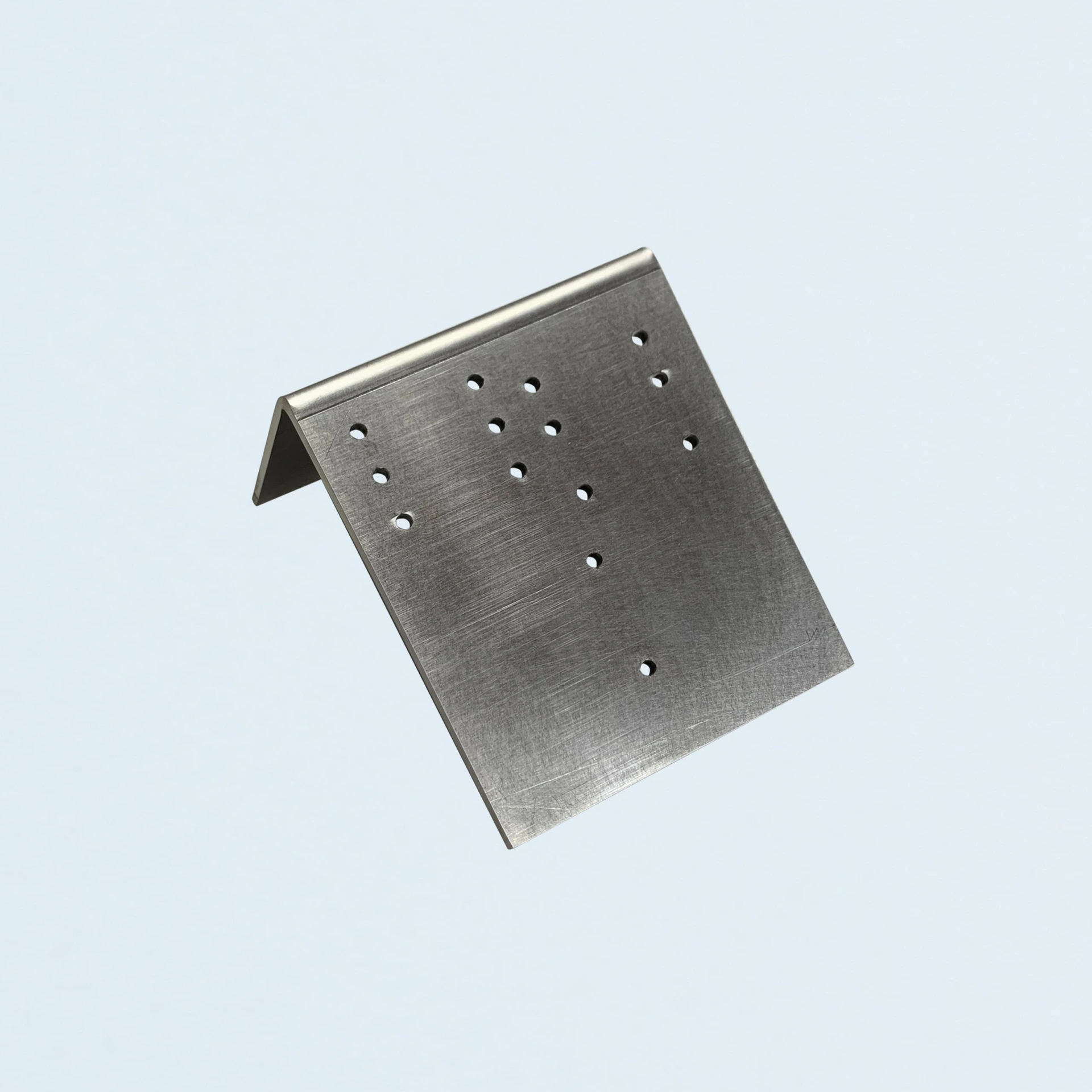

The wood probe template is a L-shaped piece of metal made out of aluminum. Sets of 2 holes are distributed across the larger side.

For drilling holes into the top of a board:

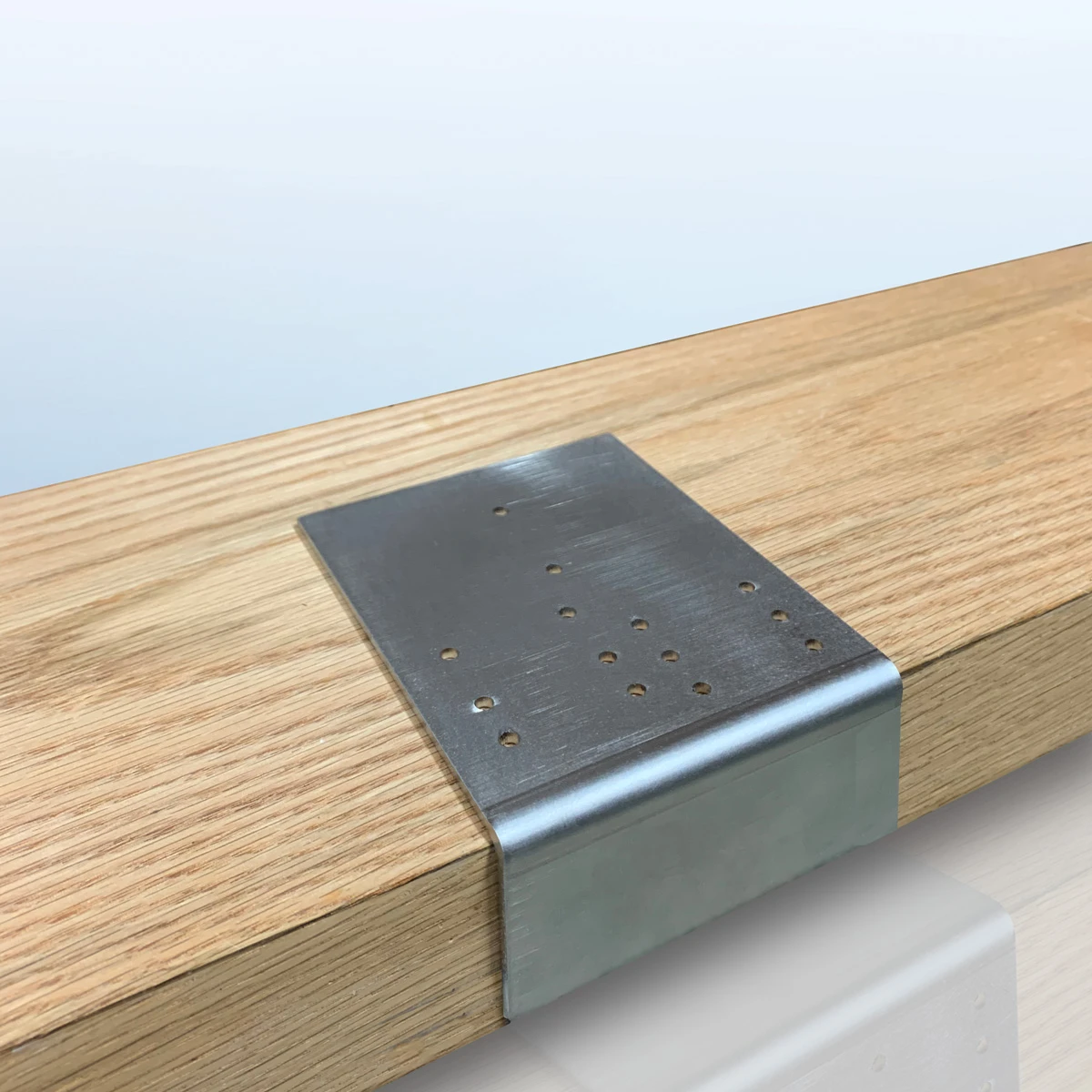

The longer side of the L-shaped template is set on top o the board and the two holes furthest from the edge are used. and the smaller side is pressed against the side of the board. The probes should be placed as close to the middle of the board as possible, but at least 2″ from the edge of the board.

For drilling holes into the side of a board:
Used when probes are installed after the kiln is loaded and the top of the board is not accessible any longer.

The longer side of the L-shaped template is put on the outside of the stack and the smaller side slides between the layers of stacked lumber and is pressed against the side of the board. Sets of holes are placed for the most common thicknesses of wood. The set that is closest to the middle of the board is chosen for drilling.

Dimensions:
width: 8″
long side of L: 6″
short side of L: 3″

Parts for handling wood probes correctly:
Wood probe template
Pulling Tool
Slide Hammer Pulling Tool

For more information please contact Customer Service at 1-800-227-2105.
