Package D4-P

Applications

For inspection, construction, restoration, building maintenance with specific calibrations for checking hardwood floors, sub floors, bamboo, panel products and wall boards.

Electrode E14-m is used when the integral pins of the meter cannot reach the areas to be measured, either pins and meter housing do not fit into the space (corner) or pins are not measuring deep enough or it is too hard to push the pins into the material by hand. Max measuring depth 7″ with EL pins.

Advantages

The DX/C moisture meter has a wide moisture range, low enough for hardwood floors and high enough to assess water damage. The meter comes with multiple calibrations for domestic and tropical wood species and percentage scales for different types of drywall and a reference scale for other building materials including concrete.

The slim Electrode E14-m is designed to measure corners, under base boards, around window frames. Handle is extendable to reach ceilings, floors easily. Teflon-coated pins measure moisture at different depth levels even behind a wet surface. Electrode E14 is strong enough to be hammered into hard materials even cementitiuos panels.

Item Number: D4-P

Starting at $245.00

Product Description

Package D4-P

  •  The D4-P package is used to detect moisture problems in buildings and moisture in home. That can be a tricky job, because moisture hides behind structural components and travels, wherever it finds a path. It is often impossible to reach these trouble spots with the integral pins of a handheld meter. An external electrode is required. The multi-purpose electrode E14-m is specifically designed for that purpose.
  • The E14-m is also used for woodworking and flooring, especially for measuring materials too hard for the meter pins to be pushed in by hand.

The package consists of:

Click here for details.

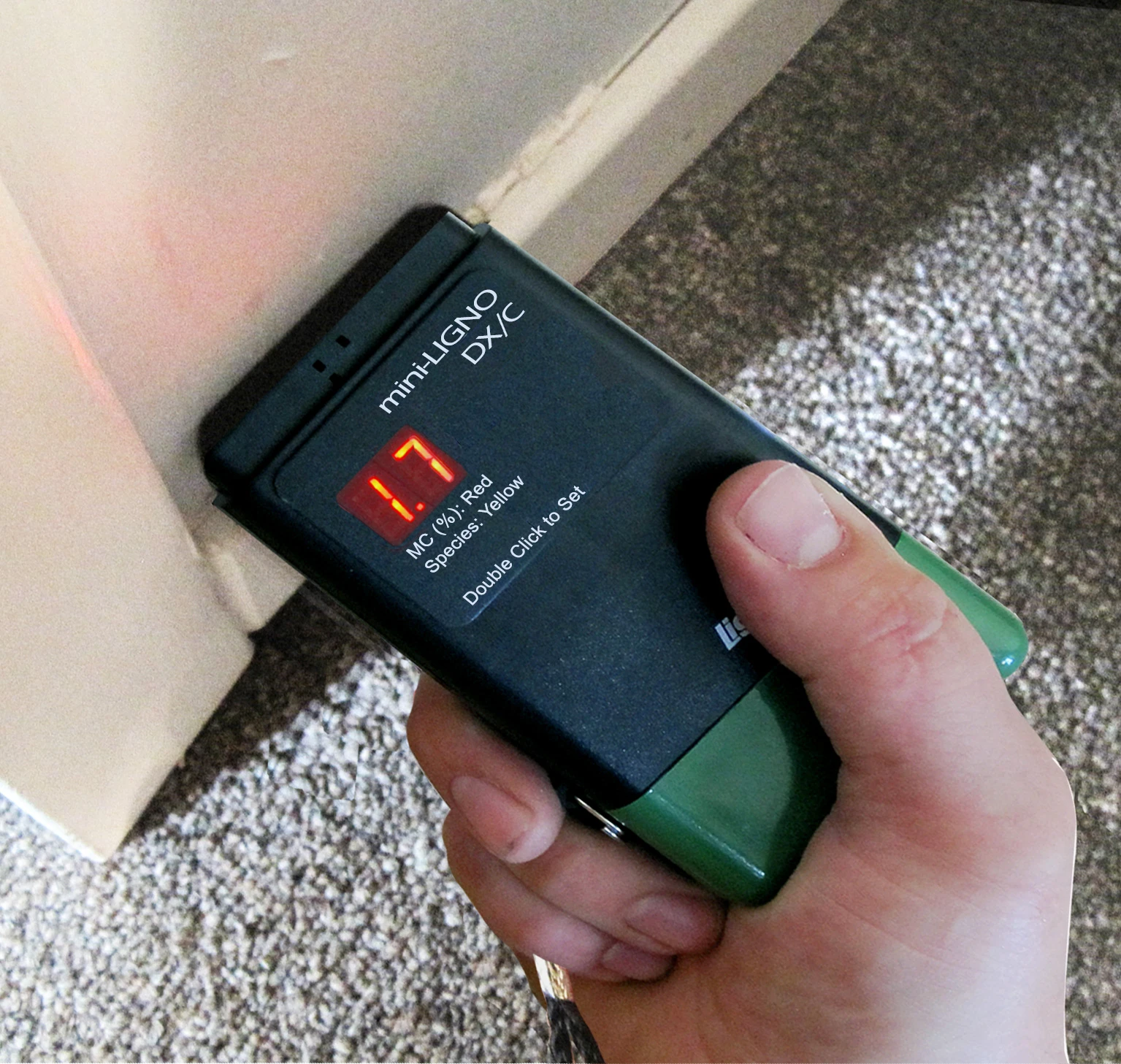

mini-Ligno DX/C: The moisture meter of your choice, the mini-Ligno DX/C is the most advanced among the mini-Lignos great for detecting moisture in home. It comes with pins and a connector built-in for external electrodes or monitor cables. Features are the wide measuring range and 46 correction settings built-in for measuring domestic and tropical wood species, making this meter a good choice when you accurately want to measure wood floors . In addition gypsum and different types of wall boards, bamboo and panel products. and a reference scale for building materials such as concrete are also included.

For wood: The integral pins at the mini-Ligno measure 7/16” deep. When measuring thicker lumber, you can make a fresh cut and measure the end grain to reach the core. If it is not feasible to cut the wood, you can add the electrode E12 for depth measurements.

For building materials: The pins on the meter work well in soft materials such as drywall for a depth of 7/16″. If corners and tight places cannot be reached with the integral meter pins, add the electrode E14-m or E16, whichever is more convenient. Add EL pins for measuring in-depth up to 7″ deep.

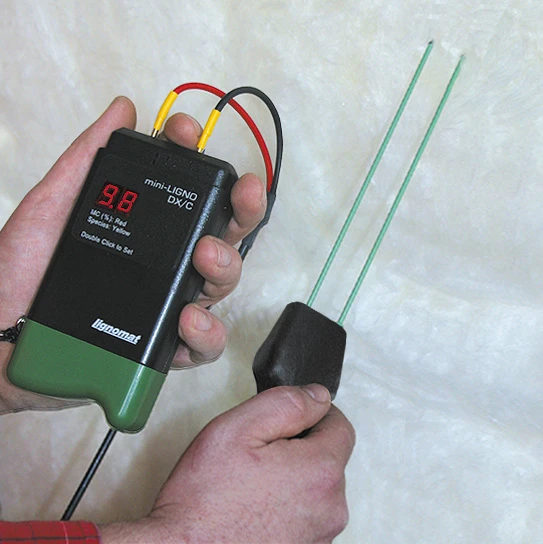

Electrode E14-m with EG pins can be used for measuring moisture on any surface up to 3/4″ deep with insulated pins EG. In addition, the slim shape of the E14 allows checking tight places, around pipes, below window sills, in wall corners, places which cannot be reached easily with other hand probes. If the pins are hammered into the material, consecutive readings show moisture changes within the material at every depth level the pins are driven to. Adding the 7″ long EL pins lets you reach through insulation or under baseboards into structural components. Great for EIFS inspections.

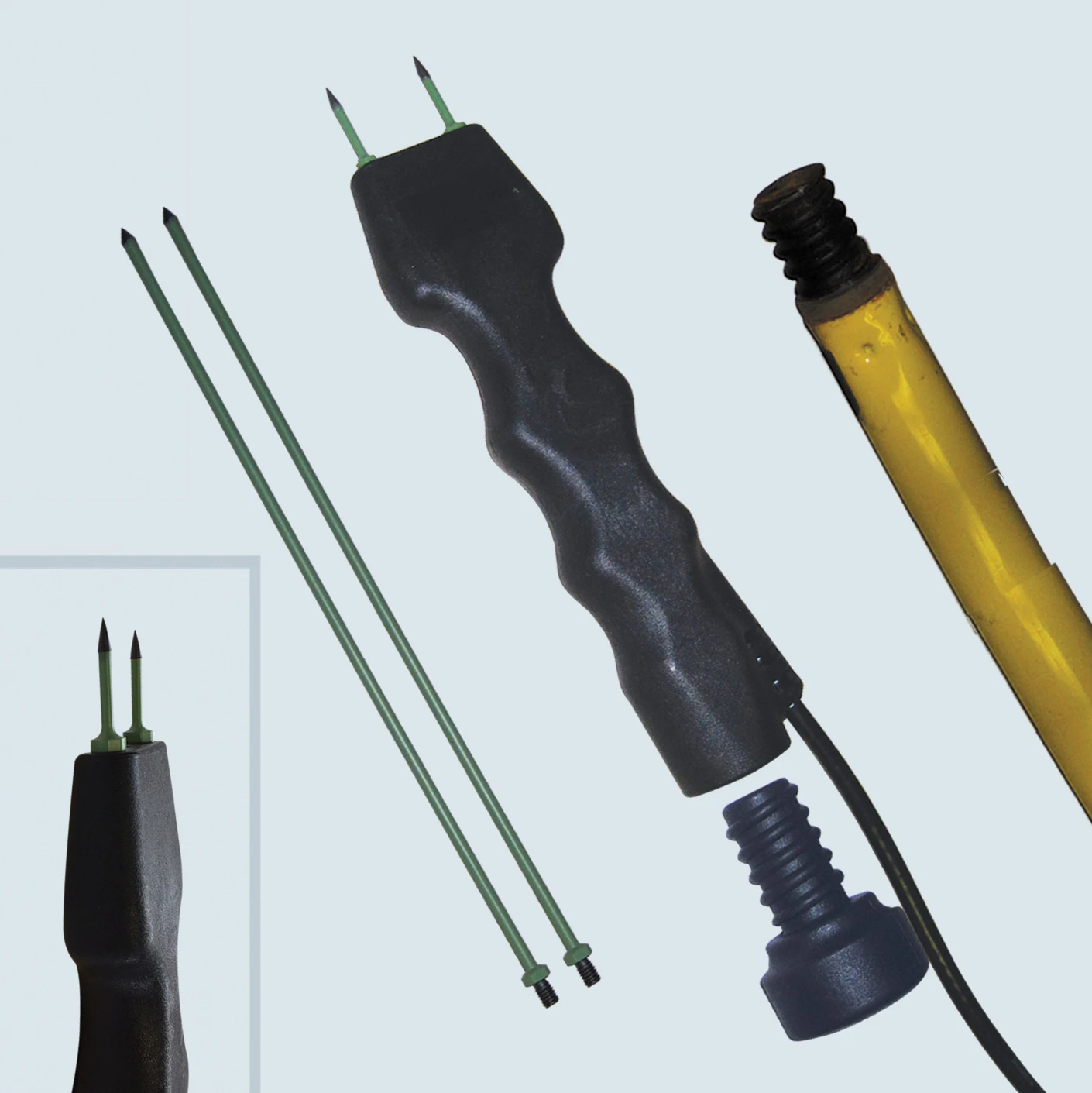

The knob at the end of the handle can be removed and replaced by a paint brush handle or broom stick. Using the paint brush handle allows to extend the reach to keep a safe distance from mold infested areas and still be able to get reliable measurements of moisture in home. Extending the handle with a broom stick makes measuring carpets and carpet padding easy without crouching down. Ceilings can be checked for moisture leakage without a ladder.

Pins measure only at the tip. EG and EL pins are teflon coated up to the electrode handle. Moisture from a wet surface is never picked up, even if the pins are pushed all the way into the material.

Using the external electrode E14-m allows you to keep the meter display visible in front of you. Measuring ceilings, walls or floors with the meter itself can make it impossible to read the numbers on the display.

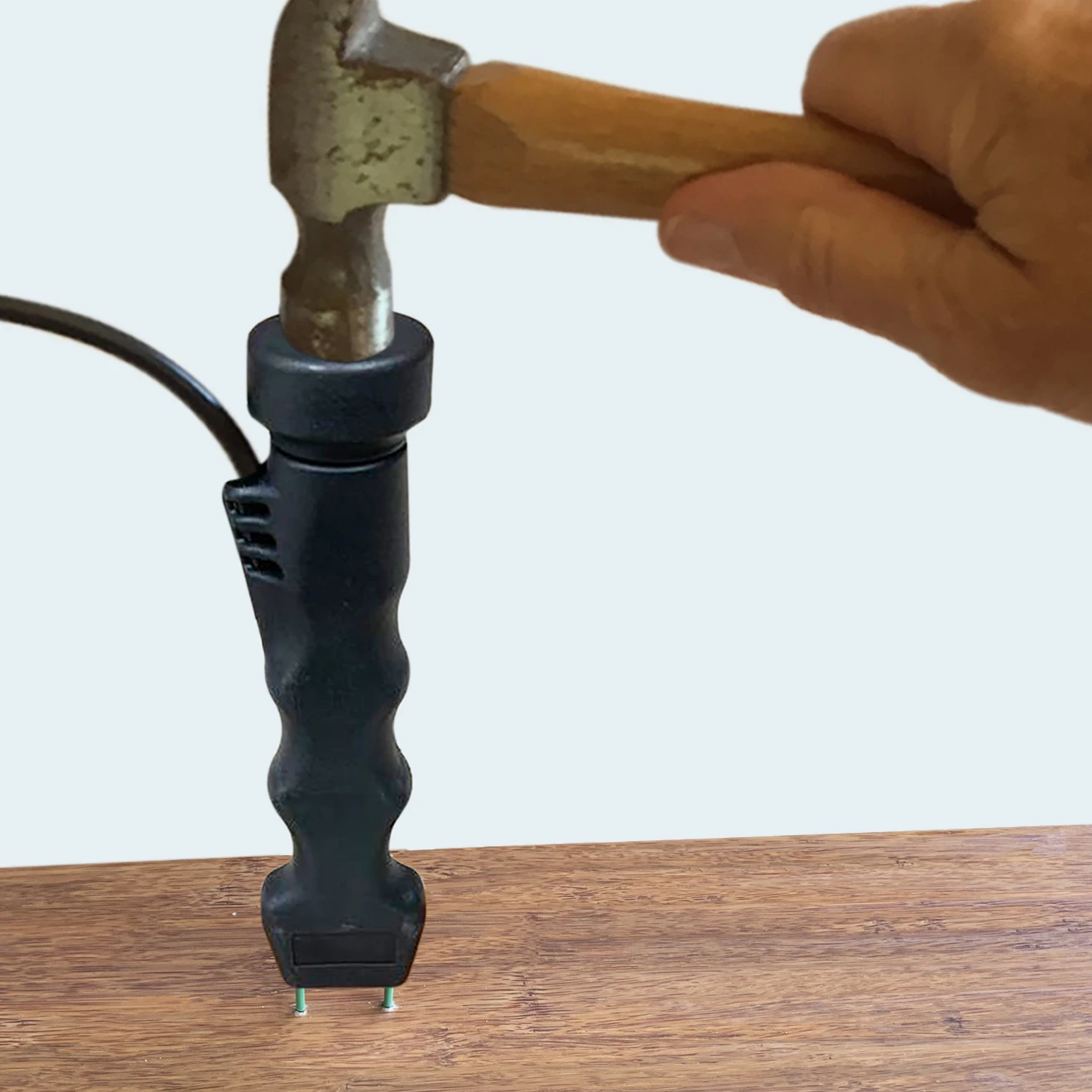

Electrode and pins are very sturdy and allow hard pounding to insert pins into hard materials. Works for strand bamboo as well as hard and cementitious panel products.

Electrode E14-m comes with a cable with a slit end and 2mm plugs to fit the mini-Ligno C’s,
and 1 pair EG pins.

Available pins:
EG pins teflon coated, measuring depth 3/4″
EL pins teflon coated, measuring depth 7″


Options:

If your job asks for assessing moisture infiltration in buildings, you have choices which products to use:

  • The package D4-P described above allows measurements of surface moisture and up to 3/4″ deep with teflon-coated EG pins and up to 7″ deep, if EL pins are added.
  • Dual-depth pinless meters from Lignomat allow measuring flat surfaces up to 1/4″ and 3/4″ deep. A fast way to find wet versus dry areas.
  • V4-S package, combines advantages of pin and pinless measuring technology.
  • Infrared cameras are fast in giving an overall picture of moisture accumulations. However, how deep the moisture reaches or if there is still residual moisture behind the surface can only be measured with a pin meter.

For more information please contact Customer Service at 1-800-227-2105.

Lignomat USA Ltd, 14345 NE Morris Ct., Portland OR 97230, USA,
Email: sales@Lignomat.com, www.Lignomat.com

Prices

Description   Item List $ Package $
Package V-B consists of:
1 Ligno-Ligno-VersaTec,pinless, dual-depth moisture meter
1 RH BluePeg Probe, 1 RH Adapter
(to activate pin mode add one of the electrodes)
  V-B 530.00 503.00
RH extension cable, standard length 6 ft
Available up to 50 ft long, price dependent on length of cable
add RH-C 23.00  21.80

Flooring Package, Ligno DuoTec BW & Concrete accessories   BW-KS 534.00 507.00
Flooring Package, Ligno-VersaTec & Concrete accessories, Electrode E12   V2-KM 755.00 717.00
Ligno-VersaTec, meter only   V-0 435.00
…………………………………………………………..



Package Includes

Mini-Ligno DX/C

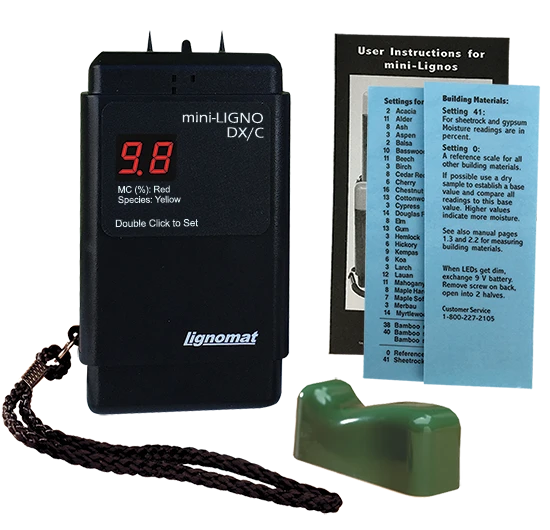

The meter comes with a green cap, strap, 9V battery, 1 pair each pins for 3/16″ and 7/16″ measuring depth, manual, laminated species card in a pouch with belt loop.

The DX/C has 46 correction settings for measuring domestic and tropical wood species, bamboo, panel products, gypsum, drywall and different types of wallboards and a reference scale for concrete and other building materials.

Electrode E14-m

The slim E14-m is designed to measure hard to reach problem areas fast and easy. Teflon-coated pins measure only at the tip. Handle can be extended. With 3ft long cable to fit mini-Ligno C models.

Incl. 1 pair EG pins for 3/4″ measuring depth.

Pouch

Pouch comes with a strap.
Fits mini-Ligno DX/C and Electrode E14-m.
Too small for Electrode E12.

Case S (optional)

The black hard-shell case comes with a handle and a foam insert for protection. Designed to fit mini-Ligno DX/C and Electrodes E14 and E16.

Cannot be used for electrode E12.
